Rosemount 114C barstock thermowells: threaded, flanged, Van Stone and welded, 25 to 1,500 mm, ASME PTC 19.3 TW
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Temperature
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1565 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Rosemount |
| Model | 114C |
| Technical | |
| Type | Temperature |
| Hazardous area | General purpose |
Datasheet
Technical features
| Isolates the temperature sensor from flow forces, pressure and corrosive media; sensor can be removed without shutdown | |
| Machined from solid barstock for strength and integrity | |
| Flexible root, tip and bore diameters and tip thickness to suit each application | |
| Standard bore 6.6 mm with 6.4 mm tip wall (Van Stone/flanged) | |
| Options | NACE MR0175/MR0103, PMI, EN 10204 3.1 certificate, hydrostatic tests, dye penetrant, Charpy, ultrasonic, electropolish, Ra < 0.3 µm finish, PFA/PTFE coating |
|---|---|
| Thermowell calculation (R21) to ASME PTC 19.3 TW | |
Applications
| Temperature points on process piping and vessels in oil, gas and chemical plants | |
| High-velocity, high-pressure or corrosive services requiring removable sensors |
Flanged and Van Stone thermowells
| Mounting | Flanged (ANSI/EN flanges) or Van Stone with loose cover flange (carbon steel default) |
|---|---|
| Wetted surface | Flange face and immersion length |
Key specifications
| Construction | Solid barstock, drilled |
|---|---|
| Mounting | Threaded, flanged, Van Stone, socket weld or weld-in |
| Immersion length | 25 to 1,165 mm standard (to ≈ 1,500 mm on request) |
| Stem styles | Straight, tapered or stepped |
| Materials | 316/316L, 304/304L, carbon steel; duplex, super duplex, alloys C-276, 400, 600, 20, B3, Cr-Mo and more |
| Design standard | ASME PTC 19.3 TW (wake-frequency calculation option) |
Threaded thermowells
| Process connections | ½, ¾, 1 in NPT; M20, M24 × 1.5; G½ |
|---|---|
| Immersion length | 25–1,165 mm (1–42 in) |
| Head length | 40–225 mm |
| Instrument connection | ½-14 NPT, ½-14 NPSM, M18, M20 or M24 × 1.5 |
| Standard materials | 316/316L SS, 304/304L SS, carbon steel |
Welded thermowells
| Mounting | Socket weld or weld-in |
|---|---|
| Process connections | ¾, 1, 1¼, 1½ in pipe |
| Use | Highest pressure rating; high-velocity flow, high temperature, leak-proof seal |
Selection guidance
| Immersion | Tip near pipe centre-line; typically 10 × root diameter for gas, 5 × for liquids, or at least one third into the pipe (API: element length + 50 mm) |
|---|---|
| Sensor fit | Head length (H) + immersion length (U) = Rosemount 214C sensor insertion length (L) |
Special materials
| Code | Material |
|---|---|
| SC / SF | 316/316L or 304/304L dual-rated SS |
| SD | 316/316L SS NORSOK |
| SJ / SK | 316/316L with PFA coating; 304/304L with PTFE coating |
| DT / DV | Super duplex / duplex 2205 NORSOK |
| SL / SM | 310 SS / 321 SS |
| AB, AC, AG, AH, AK | Alloy B3, C-276, 20, 400, 600 |
| CA / CB | Cr-Mo F11 / F22 |
| CS | Carbon steel A105 |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |

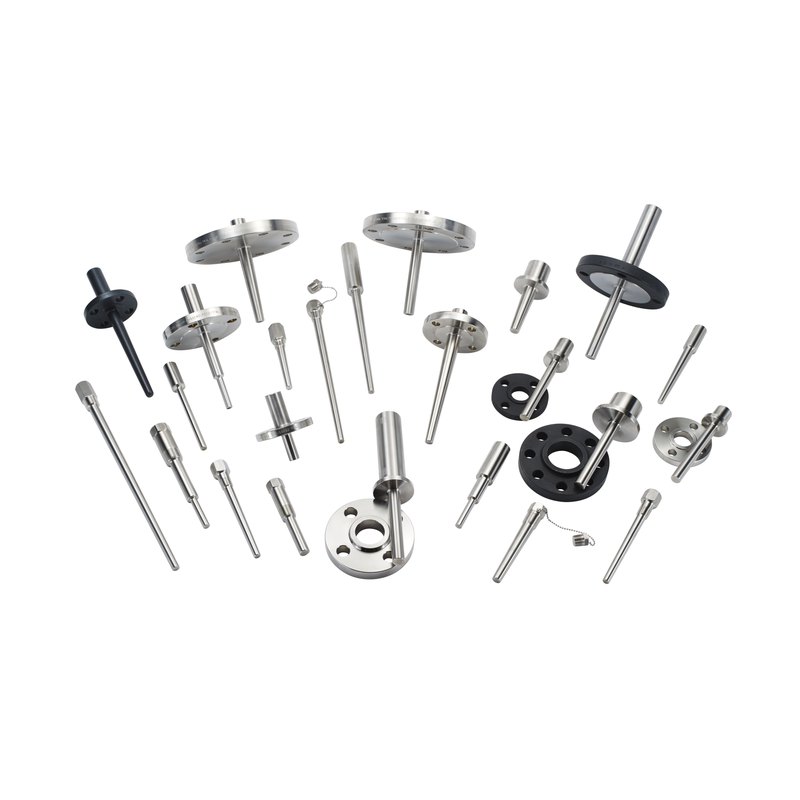

Photo: courtesy of Rosemount, used with permission (source) — background removed by Argonmark. All photo credits
Description
Rosemount 114C thermowells are machined from solid barstock to protect temperature sensors from flow-induced stress, high pressure and corrosive process fluids, while allowing the sensor to be removed without shutting down the process. They are available threaded, flanged, Van Stone, socket-weld or weld-in, with straight, tapered or stepped stems and immersion lengths from 25 mm to over 1 m.
Standard materials are 316/316L and 304/304L stainless steel and carbon steel, with duplex, nickel alloys and coatings for corrosive service. Designs follow ASME PTC 19.3 TW, and options include wake-frequency calculation, NACE certification, PMI, 3.1 material certificates and hydrostatic testing.
Argonmark Ltd supplies Rosemount instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
