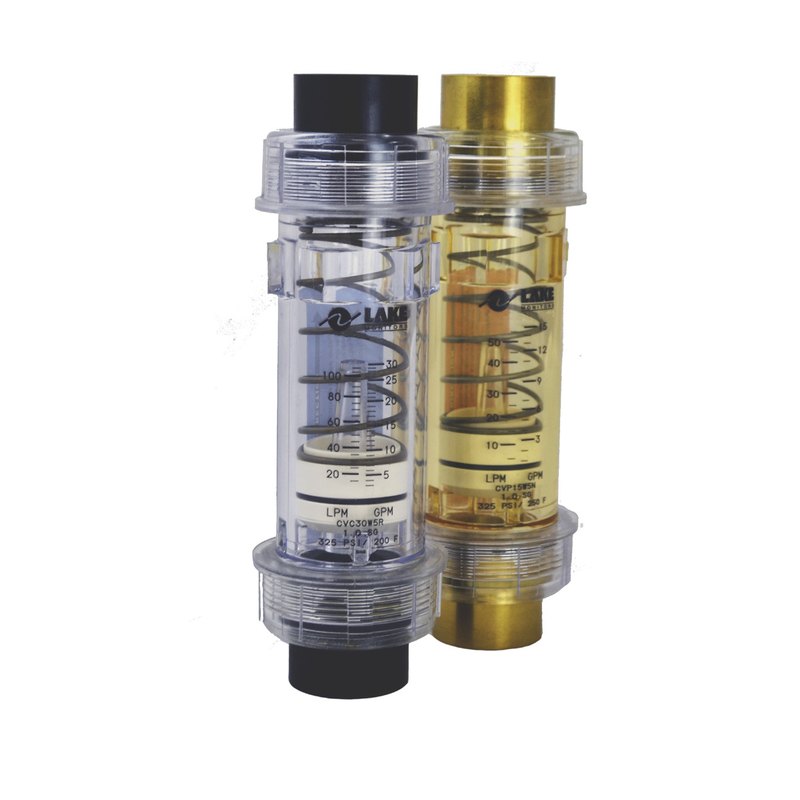

AW-Lake ClearView variable-area flow meter for water and oil, 5–110 L/min, transparent body, 22 bar
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Flow
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1567 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | AW-Lake |
| Model | ClearView (H2O / +) |
| Technical | |
| Type | Flow |
| Hazardous area | General purpose |
Datasheet
Technical features
| Economical meter for water flows, hydraulic case drain flows and pump output checks | |
| Transparent body shows fluid condition at a glance | |
| Spring-loaded variable-area piston | mount horizontally, vertically or inverted, no straight runs needed |
|---|---|
| Compact | under 8 in long, 62 mm diameter |
| Calibrated for water or hydraulic oil | |
Applications
| Municipal pressure water flow monitoring | |
| Hydraulic case drain flow observation | |
| Pump output verification |
Key specifications
| Flow range | 0.5–5, 1–10, 1–15 or 3–30 GPM (≈ 2–110 L/min) |
|---|---|
| Accuracy | ±2% of full scale (datasheet) |
| Repeatability | ±1% of full scale |
| Max. pressure | 22.4 bar (325 psi) |
| Max. temperature | 93 °C (H2O, polycarbonate) / 121 °C (+, polysulfone) |
| Connections | ½, ¾ or 1 in NPT or BSPP |
Specification
| Flow ranges | 0.5–5, 1–10, 1–15, 3–30 GPM |
|---|---|
| Accuracy | ±2% of full scale |
| Repeatability | ±1% of full scale |
| Max. operating pressure | 22.4 bar (325 psig) |
| Max. temperature | ClearView H2O 93 °C (water only); ClearView+ 121 °C |
| Calibration fluids | Water at 21 °C (SG 1.0) or oil DTE 25 at 43 °C (SG 0.873) |
| Filtration | 74 µm (200 mesh) minimum |
| Wetted materials | Brass or Ryton (PPS) end ports; Viton seals; stainless steel spring; polycarbonate (H2O) or polysulfone (+) body |
| Connections | ½, ¾, 1 in female NPT or BSPP; male NPT (brass) |
| Length | 182–208 mm depending on ports |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of AW-Lake, used with permission (source) — background removed by Argonmark. All photo credits
Description
The AW-Lake ClearView is an economical variable-area flow meter for water and hydraulic oil, with ranges from 0.5–5 GPM up to 3–30 GPM (about 2 to 110 L/min). A spring-loaded piston gives ±2% of full scale accuracy and ±1% repeatability in any mounting position, without straight pipe runs, and the transparent body lets you inspect the fluid.
It is rated to 22.4 bar and 93 °C (polycarbonate H2O version) or 121 °C (polysulfone ClearView+), with brass or Ryton end ports in ½, ¾ or 1 in NPT or BSPP.
Argonmark Ltd supplies AW-Lake instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
