AW-Lake variable-area flow monitors for oil, water, air and gas: up to 550 L/min, 410 bar, alarms, transmitters, high-temp
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Flow
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1568 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | AW-Lake |
| Model | VA series (Basic, Pneumatic, High Temp, Phosphate Ester, Flow Alarm, Flow Transmitter, Hydraulic Test Analyzer) |
| Technical | |
| Type | Flow |
| Hazardous area | General purpose |
Datasheet
Technical features
| Variable annular orifice with spring-loaded piston and magnetic coupling: mount in any orientation, no straight runs | |
| Versions for hydraulic oil, water, air/gas, phosphate-ester fluids (Skydrol, Pydraul; density corrected to SG 1.145) and hot thermal fluids | |
| Flow rate alarm | SPDT dry contact (10 A, 125/250 V AC), adjustable set point, 4% dead band, single or dual switch |
|---|---|
| Flow rate transmitter | 4–20 mA, 0–5 V or pulse output with local indication; 12–24 V DC |
| Hydraulic test analyzer (K series flow + pressure; T series adds temperature) with load valve | |
| Seals | Buna-N, EPR, FKM, Kalrez; NPT, SAE and BSPP ports |
Applications
| Hydraulic circuits, pumps and cooling systems | |
| Compressed air and industrial gas consumption | |
| Thermal fluid and barrel heating circuits; aviation hydraulic fluids | |
| Hydraulic troubleshooting and component wear testing |
Key specifications
| Flow range | 0.1–150 GPM (0.5–550 L/min) liquids; 2–1,300 SCFM (1–600 SL/s) air/gas |
|---|---|
| Accuracy | ±2% of full scale (pneumatic ±2.5% centre third) |
| Repeatability | ±1% of full scale |
| Max. pressure | Liquids 240 bar (Al, brass) / 410 bar (SS); gas 40 / 69 bar |
| Max. temperature | 116 °C standard; 204 °C (H) / 315 °C (J) high-temperature |
| Materials | Anodized aluminium, brass or 303 stainless steel |
Common specification
| Accuracy | ±2% of full scale (liquids) |
|---|---|
| Repeatability | ±1% of full scale |
| Liquid flow range | 0.1–150 GPM (0.5–550 L/min); phosphate ester 0.1–130 GPM |
| Gas flow range | 2–1,300 SCFM at 100 psig (1–600 SL/s) |
| Max. pressure | Liquids: aluminium/brass 240 bar, stainless steel 410 bar; air/gas: 40 / 69 bar |
| Max. temperature | 116 °C (basic, pneumatic, phosphate ester); transmitter/alarm electronics 85 °C |
| Viscosity | Up to 110 cSt standard (110–430 cSt on request) |
| Calibration fluids | Oil DTE 25 at 43 °C (SG 0.873); water at 21 °C; air at 21 °C, 6.8 bar |
| Filtration | 74 µm (200 mesh) minimum |
| Wetted materials | Anodized aluminium, brass or SS 303 casing; PTFE-coated Alnico magnet; stainless internals |
Variants
| Basic | Liquid flow monitoring of pumps, hydraulic and cooling circuits |
|---|---|
| Pneumatic | Air compressors, pneumatic tools, industrial gases; ±2.5% FS centre third, ±4% outer thirds |
| High Temperature | H series 204 °C, J series 315 °C; FKM or FFKM seals with PTFE backup; thermal-transfer and barrel heating fluids |
| Phosphate Ester | Aviation and fire-retardant hydraulic fluids |
| Flow Rate Alarm | SPDT 10 A at 125/250 V AC; dead band 4% FS |
| Flow Rate Transmitter | 4–20 mA, 0–5 V (regulated) or square-wave pulse; 10-bit resolution; 12–24 V DC; IP-rated aluminium enclosure with Pyrex window |
| Hydraulic Test Analyzer | Flow ±2%, pressure ±2.5%, temperature ±2.5% FS; aluminium 200 bar or SS 340 bar; 116 °C |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |

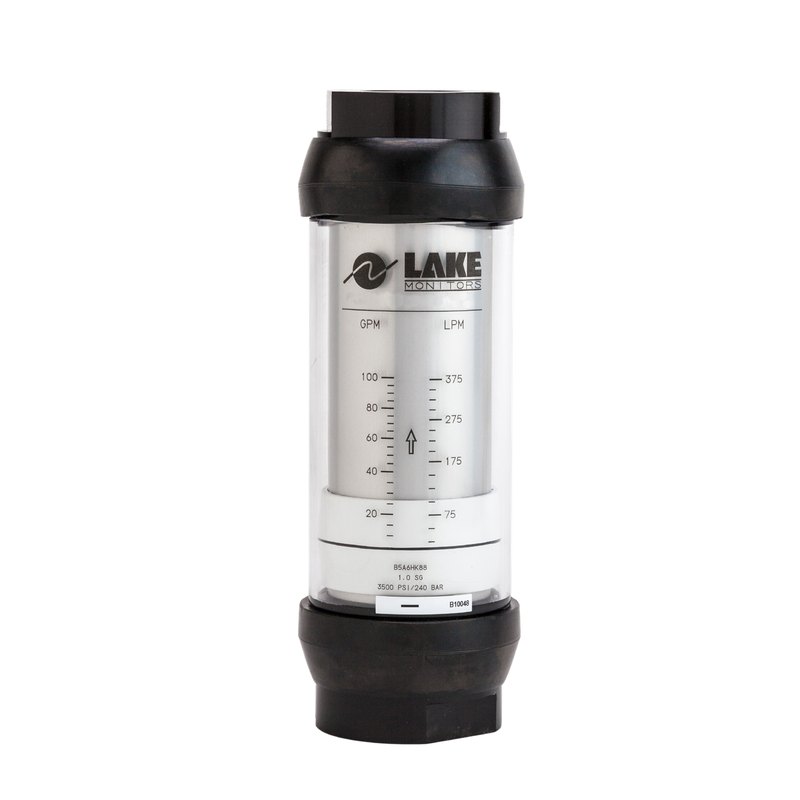

Photo: courtesy of AW-Lake, used with permission (source) — background removed by Argonmark. All photo credits
Description
AW-Lake VA flow monitors use a spring-loaded piston in a variable annular orifice, magnetically coupled to an external indicator, so they read accurately in any mounting position without straight pipe runs. They cover 0.1–150 GPM (0.5–550 L/min) of liquids and 2–1,300 SCFM of air or gas with ±2% of full scale accuracy, in aluminium, brass or stainless steel bodies rated up to 410 bar.
Versions include basic indicators, pneumatic meters, high-temperature meters to 315 °C, phosphate-ester meters, flow alarms with SPDT switches, flow transmitters with 4–20 mA, 0–5 V or pulse output, and portable hydraulic test analyzers that measure flow, pressure and temperature.
Argonmark Ltd supplies AW-Lake instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
