Hedland variable-area flow meter for water-based fluids and emulsions, up to 1,100 L/min, 414 bar
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Flow
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1570 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Hedland |
| Model | Water-based series (SG 1.0) |
| Technical | |
| Type | Flow |
| Hazardous area | General purpose |
Datasheet
Technical features
| Direct-reading variable-area (piston and cone) flow meter: install in any position, no flow straighteners needed | |
| Linear scale on a 360° rotatable guard; relatively insensitive to shock and vibration | |
| Good viscosity stability | |
| Reverse-flow by-pass option lets fluid flow freely in the opposite direction | |
| Test kit versions with glycerin-filled gauge and load valve for hydraulic troubleshooting | |
| Stainless steel retaining ring and spring for corrosion resistance in water |
Applications
| Cooling water and process water flow | |
| Water-glycol and HWCF (water/oil emulsion) hydraulic systems | |
| Washdown and spray systems |
Key specifications
| Flow range | Low-flow ¼ in up to 3 in (≈ 100–1,100 L/min) |
|---|---|
| Accuracy | ±2% of full scale; repeatability ±1% |
| Calibration | Water and water/oil emulsions, SG 1.0 |
| Max. pressure | 241 bar (aluminium, brass) / 414 bar (stainless steel) |
| Temperature | −29 to +116 °C |
| Materials | Aluminium, brass or 303 SS; 316 SS retaining parts |
Specification
| Body / piston / cone | Anodized aluminium 2024-T351, brass C360, or stainless steel T303 body (aluminium piston/cone) |
|---|---|
| Internals | T302 SS spring, T316 SS spider plate, PPS/ceramic magnetic indicator |
| Seals | Viton; Buna-N guard seal |
| Guard | Polycarbonate (rotatable 360°) |
| Ports | SAE J1926-1, NPTF, BSPP ISO 1179, SAE J518 Code 61/62 flanges |
| Accuracy / repeatability | ±2% of full scale (±7% on ¼ in) / ±1% |
| Temperature | −29 to +116 °C (high-temperature versions to 205 °C continuous, 260 °C intermittent) |
| Pressure | Aluminium/brass 241 bar; stainless steel 414 bar (345 bar ¾–1½ in); 3:1 safety factor |
| Calibration | Water and water/oil emulsions, SG 1.0 |
Sizes and flow ranges
| Port size | Flow ranges (L/min) | Max. pressure (Al, brass / SS) |
|---|---|---|
| ¼ in (SAE 6) | 0.1–0.75; 0.2–1.9; 1–7.5 | 241 / 414 bar |
| ½ in (SAE 10) | 0.5–3.75; 1–7.5; 5–38; 4–56 | 241 / 414 bar |
| ¾ in (SAE 12) | 1–7.5; 2–19; 10–76; 10–115 | 241 / 345 bar |
| 1 in (SAE 16) | 1–7.5 up to 20–190 | 241 / 345 bar |
| 1¼ in (SAE 20) | 10–110; 20–190; 50–380; 50–560 | 241 / 345 bar |
| 1½ in (SAE 24, Code 62) | 10–110 up to 50–560 | 241 / 345 bar (276 bar Code 62) |
| 3 in (BSPT / Code 61) | 50–750; 100–1,100 | 55 bar (aluminium) |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |

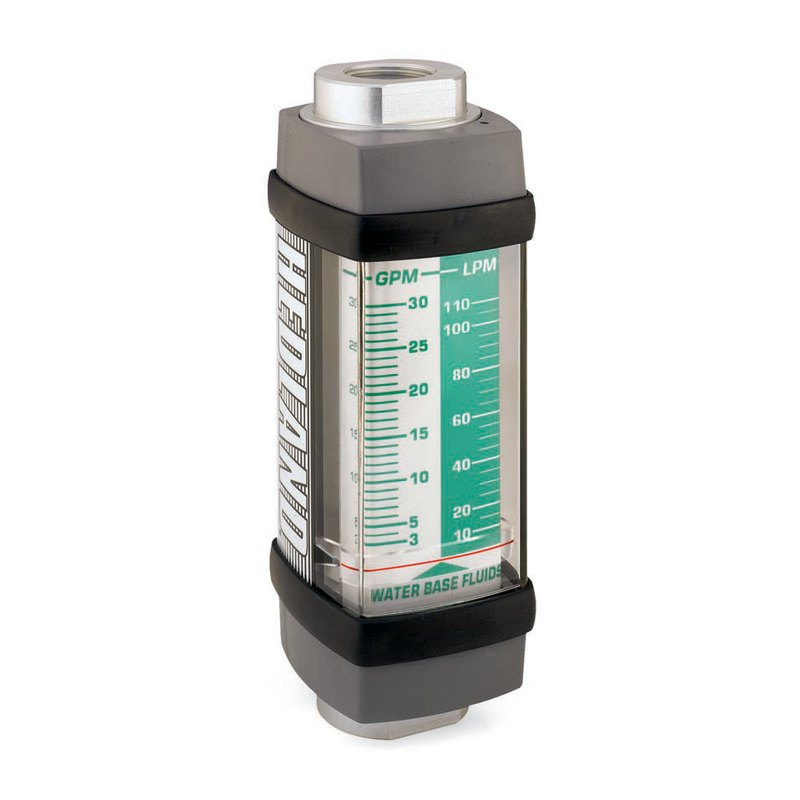

Photo: courtesy of Hedland, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Hedland water-based flow meter is a direct-reading variable-area meter calibrated for water and water/oil emulsions (SG 1.0). Like the petroleum version it reads to ±2% of full scale with ±1% repeatability, installs in any position without straight runs, and resists shock and vibration; retaining parts are stainless steel for wet service.
Aluminium, brass and stainless steel bodies are rated up to 414 bar, sizes run from ¼ to 3 in, and reverse-flow by-pass and test-kit options are available.
Argonmark Ltd supplies Hedland instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
