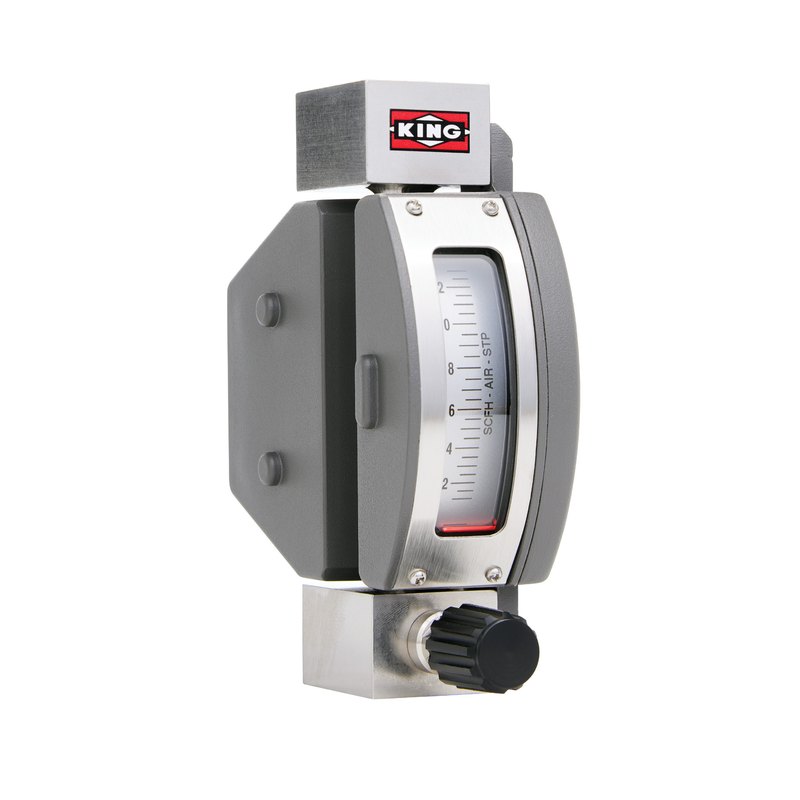

King Instrument 7100 all-316L stainless steel low-flow rotameter, 2.4–95 L/h water, up to 276 bar
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Flow
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1571 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | King Instrument |
| Model | 7100 Series |
| Technical | |
| Type | Flow |
| Hazardous area | General purpose |
Datasheet
Technical features
| All 316L stainless steel construction for low-flow, high-pressure service | |
| 60 mm direct-reading scale in die-cast aluminium case with annealed glass window | |
| Optional inlet or outlet control valve (316L or Hastelloy) | |
| Optional inductive slot-sensor alarm; any volumetric scale | |
| High-temperature version; CRN registered |
Applications
| Chemical injection and low-flow dosing at high pressure | |
| Purge and sample flows | |
| Gas and liquid flow indication in corrosive service |
Key specifications
| Flow range | Water 0.6–25 GPH (2.4–95 L/h); air 1–120 SCFH (28–3,400 SL/h) full scale |
|---|---|
| Accuracy | ±5% of full scale; repeatability 1%; turndown 10:1 |
| Max. pressure | ¼ in FNPT: 103 bar (valve) / 276 bar (no valve); flanges per class |
| Max. temperature | Up to 204 °C (O-ring dependent) |
| Wetted materials | 316L SS tube and internals (Hastelloy C-276 option) |
| Connections | ¼ in FNPT horizontal; ½ or 1 in 150#/300# flange vertical |
Specification
| Metering tube / internals | 316L SS; internals 316L SS or Hastelloy C-276 |
|---|---|
| Case | Die-cast aluminium, powder coated; 304 SS frame scale cover with annealed glass |
| O-rings | EPR (107 °C), Buna-N (135 °C), Viton (177 °C), Kalrez (204 °C) or none (204 °C) |
| Accuracy / repeatability | ±5% of full scale / 1% |
| Turndown | 10:1 |
| Ambient temperature | −40 to +52 °C |
| Pressure, FNPT | Valve models 1,500 psig (103 bar); non-valve 4,000 psig (276 bar) |
| Pressure, flanged | 150#: 225 psi at 93 °C; 300#: 600 psi at 93 °C (derated at higher temperature) |
| Options | Alarm, ISA RP 16.6 certified calibration, control valves, CRN, rear bracket, custom scales |
Full-scale flows
| Code | Water | Code | Air |
|---|---|---|---|
| 02W | 2.4 L/h (0.6 GPH) | 00A | 28.3 SL/h (1.0 SCFH) |
| 04W | 4.5 L/h | 01A | 70 SL/h |
| 06W | 10.5 L/h | 03A | 155 SL/h |
| 08W | 20 L/h | 05A | 360 SL/h |
| 10W | 45 L/h | 07A | 680 SL/h |
| 12W | 95 L/h (25 GPH) | 09A / 11A | 1,550 / 3,400 SL/h |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of King Instrument, used with permission (source) — background removed by Argonmark. All photo credits
Description
The King Instrument 7100 is an all-316L stainless steel rotameter for low flows at high pressure, with full-scale ranges from 2.4 to 95 L/h of water or 28 to 3,400 SL/h of air. It reads to ±5% of full scale with 1% repeatability and 10:1 turndown on a 60 mm direct-reading scale.
With ¼ in FNPT connections it is rated to 276 bar (103 bar with valve), or it can be flanged, and with suitable O-rings it handles up to 204 °C. Options include integral control valves, Hastelloy internals, an inductive alarm and certified calibration.
Argonmark Ltd supplies King Instrument instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
