King Instrument 7710 stainless steel metal-tube rotameter, 33 GPH to 450 GPM water, 4–100 SCFM air, optional 4–20 mA
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Flow
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1572 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | King Instrument |
| Model | 7710 Series |
| Technical | |
| Type | Flow |
| Hazardous area | General purpose |
Datasheet
Technical features
| Float and tapered-tube design for longer, more linear scales and better pointer stability | |
| 120 mm detachable direct-reading scale; IP66 die-cast aluminium indicator housing | |
| All 316L SS wetted parts; NPT or flanged vertical connections | |
| Optional 4–20 mA transmitter and inductive alarms | |
| CRN registered; ISA RP 16.6 certified calibration option |
Applications
| Process water, chemical and hydrocarbon flow indication | |
| Flow alarms and 4–20 mA flow transmission on skids | |
| Cooling water and utility flows |
Key specifications
| Flow range | Water 33 GPH–450 GPM (≈ 2 L/min–1,700 L/min); air 4–100 SCFM full scale |
|---|---|
| Accuracy | ±3% of full scale; repeatability 1%; turndown 10:1 |
| Max. pressure | NPT 103 bar; flanges 150#/300#/600# |
| Max. temperature | Up to 204 °C (O-ring dependent) |
| Wetted materials | 316L stainless steel |
| Options | 4–20 mA transmitter; single or dual inductive alarms |
Specification
| Wetted materials | 316L SS tube, internals and fittings; Viton O-ring standard (Buna-N, EPR, Kalrez) |
|---|---|
| Accuracy / repeatability | ±3% of full scale / 1% |
| Turndown | 10:1 |
| Max. temperature | EPR 107 °C, Buna-N 135 °C, Viton 177 °C, Kalrez 204 °C |
| Max. pressure | NPT 1,500 psi (103 bar); flange 150# 225 psi, 300# 600 psi, 600# 1,200 psi at 93 °C |
| Ambient temperature | −40 to +52 °C |
| Connections | ½, 1, 1½, 2 in FNPT or flange; 3 and 4 in flange |
| Housing | Die-cast aluminium, IP66 |
Full-scale flows (water)
| Code | Full scale | Size |
|---|---|---|
| 06 | 33 GPH (2.1 L/min) | ½ in |
| 08–14 | 1.1 – 6 GPM (4–23 L/min) | ½ in |
| 16–22 | 5 – 25 GPM (19–95 L/min) | 1 in |
| 24–26 | 35 – 60 GPM (130–230 L/min) | 1½ in |
| 28–34 | 76 – 152 GPM (290–575 L/min) | 2 in |
| 36–38 | 150 – 225 GPM (570–850 L/min) | 3 in flange |
| 40–44 | 300 – 450 GPM (1,135–1,700 L/min) | 4 in flange |
| Air 07–21 | 4 – 100 SCFM | ½ in / 1 in |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |

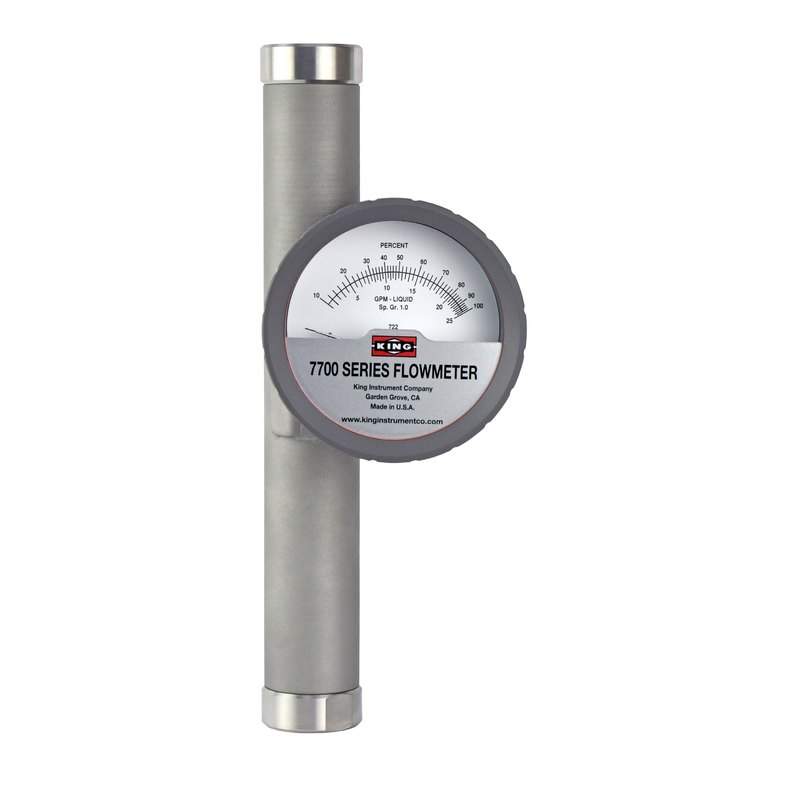

Photo: courtesy of King Instrument, used with permission (source) — background removed by Argonmark. All photo credits
Description
The King Instrument 7710 is an all-316L stainless steel metal-tube rotameter with a float and tapered-tube design that gives a long, linear 120 mm scale and ±3% of full scale accuracy. Full-scale ranges run from 33 GPH to 450 GPM of water (roughly 2 to 1,700 L/min) and 4 to 100 SCFM of air, in sizes from ½ to 4 in.
It is rated to 103 bar with NPT connections or to flange class ratings, and up to 204 °C depending on O-ring. The IP66 indicator can be fitted with a 4–20 mA transmitter and single or dual alarms.
Argonmark Ltd supplies King Instrument instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
