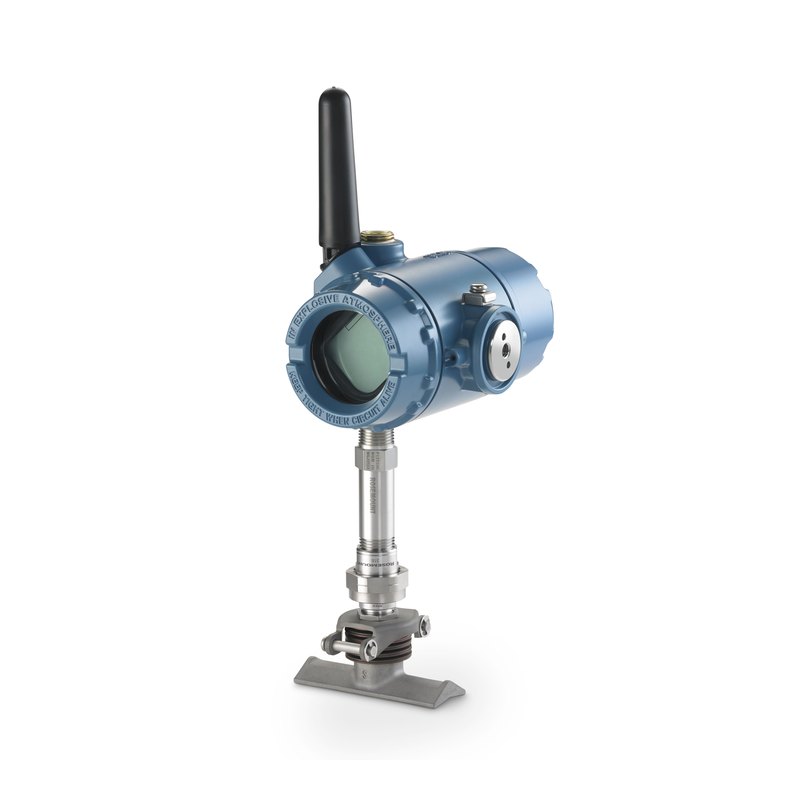

Rosemount 0085 non-intrusive pipe clamp RTD sensor, Pt100, −50 to 300 °C, DN15 to DN1500, X-well ready
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Temperature
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1573 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Rosemount |
| Model | 0085 |
| Technical | |
| Type | Temperature |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Non-intrusive | measures without a thermowell or pipe penetration, no welding |
|---|---|
| With Rosemount 3144P or 648 transmitters, X-well Technology calculates process temperature from pipe surface and ambient temperature | |
| Spring-loaded sensor for good surface contact; silver tip for faster response | |
| Sensor maintenance without process shutdown; free of flow, pressure, abrasion and vibration stresses | |
| Connection heads in aluminium or stainless steel (IP68), with LCD cover options | |
Applications
| Temperature measurement on pipelines where a thermowell is impractical (pigged lines, small bore, high velocity) | |
| Retrofit temperature points without shutdown or hot-tapping | |
| Wireless temperature monitoring with Rosemount 648 |
Key specifications
| Sensor | Pt100 (IEC 60751), single 4-wire or dual 3-wire, silver tip |
|---|---|
| Range | −50 to 300 °C |
| Accuracy | Class B standard; Class A optional |
| Pipe sizes | ½ in (DN15) to 60 in (DN1500) |
| Clamp materials | 316, 304, duplex F51 or carbon steel |
| Approvals | ATEX/IECEx flameproof, ATEX IS, FM, CSA, EAC, China |
Specification
| Element | 100 Ω Pt RTD at 0 °C, α = 0.00385 (IEC 60751) |
|---|---|
| Tolerance | Class B ±(0.3 + 0.005|t|); Class A ±(0.15 + 0.002|t|) optional (−50 to 300 °C) |
| Process temperature | −50 to 300 °C |
| Ambient temperature | −40 to 85 °C |
| Self-heating | 0.15 K/mW |
| Insulation resistance | ≥ 1,000 MΩ at 500 V DC |
| Sheath | 321 SS mineral-insulated cable, silver or nickel tip |
| Lead wires | PTFE-insulated silver-plated copper |
| Extension | Nipple-union, 80 or 150 mm (200–500 mm to order) |
| Pipe clamp | Universal mount (316) or clamp in 304, 316, duplex 1.4462, carbon steel; NBR corrosion inlay option |
| Pipe sizes | OD 19 mm to 1,534 mm (½ in to 60 in) |
| Connection head | Aluminium or SS, IP68, M20 or ½ NPT |
| Approvals | ATEX/IECEx flameproof, ATEX IS, FM and CSA explosion-proof, EAC, China flameproof |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Rosemount, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Rosemount 0085 is a non-intrusive pipe clamp temperature sensor that measures process temperature without a thermowell or any penetration of the pipe. Its spring-loaded Pt100 RTD with a silver tip clamps to pipes from ½ in to 60 in and covers −50 to 300 °C (Class B, Class A optional). Paired with a Rosemount 3144P or 648 transmitter, X-well Technology corrects for pipe and ambient conditions to give an accurate process reading.
It installs without welding, can be maintained without shutting down the process, and avoids flow, pressure and vibration stress on the sensor. Clamps come in stainless, duplex or carbon steel, and flameproof and intrinsically safe approvals are available.
Argonmark Ltd supplies Rosemount instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
