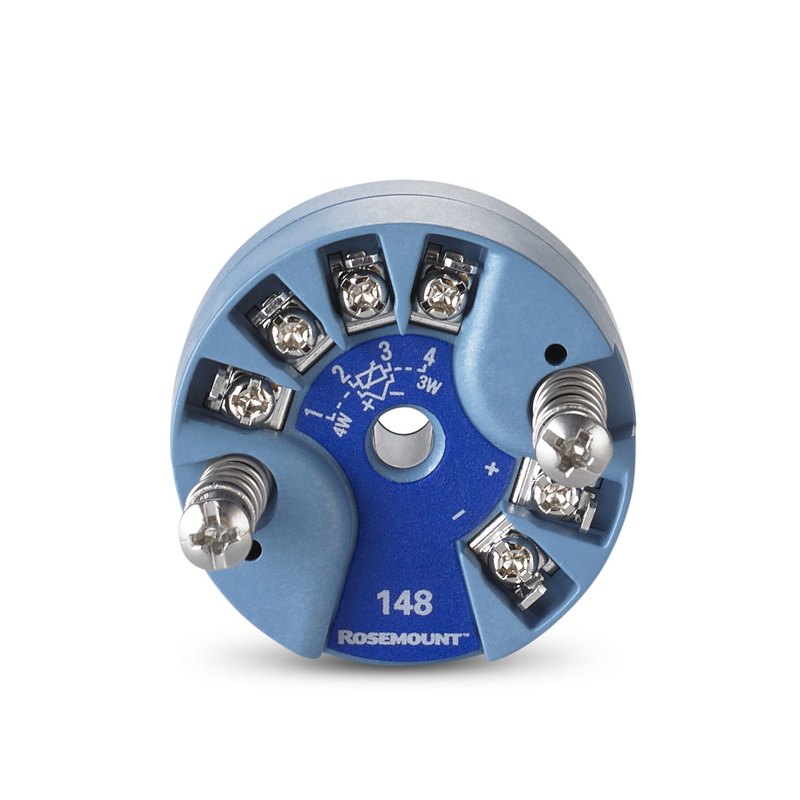

Rosemount 148 PC-programmable head-mount temperature transmitter, RTD / thermocouple / mV / Ω input, 4–20 mA
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Temperature
- Signal / Protocol: 4–20 mA
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1574 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Rosemount |
| Model | 148 |
| Technical | |
| Type | Temperature |
| Signal / Protocol | 4–20 mA |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Low-cost transmitter for single-point temperature monitoring with better accuracy and noise immunity than wiring sensors directly to the DCS | |
| Universal sensor input; PC-based configuration (programmer, cables and software) | |
| Ambient temperature compensation; one-year stability ±0.15% of reading or 0.15 °C | |
| Input/output isolation 500 V AC | |
| Many DIN B enclosure options; NAMUR alarm levels; 3-point calibration certificate option |
Applications
| Cost-effective temperature monitoring points in process plants | |
| Replacing direct sensor wiring to DCS/PLC inputs | |
| Hazardous-area temperature measurement |
Key specifications
| Input | RTD (Pt100, Ni120, Cu), thermocouple (B, J, K, N, R, S), mV, ohms — single sensor |
|---|---|
| Output | 4–20 mA 2-wire, NAMUR NE 43 |
| Accuracy | Pt100: ±0.3 °C + 0.15% of span; T/C K/J: ±0.75 °C + 0.15% of span (+0.5 °C CJC) |
| Supply | 12–42.4 V DC (12–30 V IS) |
| Housing | DIN B head mount; aluminium, SS or polymer heads to IP68 |
| Approvals | IS, explosion-proof, Class I Div 2, ATEX/IECEx Ex ia, Ex d, Ex n, dust |
Specification
| Output | 4–20 mA, linear with temperature or input |
|---|---|
| Isolation | 500 V AC rms input/output |
| Supply | 12–42.4 V DC; IS 12–30 V DC |
| Update rate | < 0.5 s; damping up to 32 s |
| Stability | ±0.15% of reading or 0.15 °C (12 months) |
| Failure mode | NAMUR NE 43 or Rosemount alarm levels (high 21–23 mA, low 3.5–3.75 mA) |
| Temperature | Operating −40 to 85 °C; storage −50 to 120 °C |
| EMC | EN 61326, NAMUR NE 21 |
| Enclosures | Aluminium or SS connection head (IP68), universal junction box, BUZ head, polyamide, sanitary heads |
| Approvals | USA/Canada IS, XP, Div 2; ATEX/IECEx intrinsic safety, flameproof, type n, dust |
Inputs and accuracy
| Sensor | Range | Min. span | Accuracy (fixed + % span) |
|---|---|---|---|
| Pt100 α 0.00385 (IEC 751) | −200 to 850 °C | 10 °C | 0.3 °C + 0.15% |
| Pt100 α 0.003916 (JIS) | −200 to 645 °C | 10 °C | 0.3 °C + 0.15% |
| Ni120 | −70 to 300 °C | 10 °C | 0.24 °C + 0.15% |
| Cu50 / Cu100 (GOST) | −185 to 200 °C | 10 °C | 0.51 °C + 0.15% |
| Ohms | 0–2,000 Ω | 20 Ω | 1.1 Ω + 0.15% |
| Type B | 100 to 1,820 °C | 25 °C | 2.25 °C + 0.15% |
| Type J | −180 to 760 °C | 25 °C | 0.75 °C + 0.15% |
| Type K | −180 to 1,372 °C | 25 °C | 0.75 °C + 0.15% |
| Type N | −200 to 1,300 °C | 25 °C | 1.2 °C + 0.15% |
| Type R / S | 0 to 1,768 °C | 25 °C | 1.8 / 1.5 °C + 0.15% |
| mV | −10 to 100 mV | 3 mV | 0.045 mV + 0.15% |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Rosemount, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Rosemount 148 is an economical DIN B head-mount temperature transmitter that converts an RTD, thermocouple, millivolt or ohm input into a two-wire 4–20 mA signal, giving better accuracy and noise immunity than wiring sensors directly to the control system. Typical accuracy is ±0.3 °C plus 0.15% of span for Pt100, with one-year stability of ±0.15% of reading.
It is configured from a PC, compensates for ambient temperature, isolates input from output to 500 V AC and follows NAMUR NE 43 alarm levels. It fits a wide range of IP68 heads and carries intrinsically safe, explosion-proof and ATEX/IECEx approvals.
Argonmark Ltd supplies Rosemount instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
