Rosemount 248 head-mount HART temperature transmitter, universal input, 4–20 mA, SIL 2 option
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Temperature
- Signal / Protocol: 4–20 mA, HART
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1575 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Rosemount |
| Model | 248H (248 head mount) |
| Technical | |
| Type | Temperature |
| Signal / Protocol | 4–20 mA, HART |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Basic, reliable HART transmitter for temperature monitoring points | |
| Universal sensor input; DIN B head mount with a variety of enclosures | |
| Lower installed cost than wiring sensors directly (no extension wire or multiplexers) | |
| Wide ambient range −50 to +85 °C | |
| Stability ±0.1% of reading or 0.1 °C |
Applications
| Temperature monitoring points in process plants | |
| Hazardous-area temperature measurement |
Key specifications
| Input | Single sensor: RTD (Pt100/Pt1000, Ni, Cu), thermocouple, mV, ohms, potentiometer, bipolar mV |
|---|---|
| Output | 4–20 mA / HART |
| Accuracy | Pt100: ±0.20 °C ±0.10% of span |
| Ambient | −50 to +85 °C |
| Safety | IEC 61508 SIL 2 capable (option QT) |
| Approvals | IS, explosion-proof, ATEX/IECEx options |
Specification
| Input | RTD (Pt100/Pt1000, Ni, Cu), thermocouple, mV, ohms; potentiometer, linear resistance, bipolar mV |
|---|---|
| Output | 4–20 mA with HART |
| Accuracy (Pt100) | ±0.20 °C ±0.10% of span |
| Temperature effect (Pt100) | 0.006 °C/°C + 0.004% of span |
| Stability | ±0.1% of reading or 0.1 °C |
| Isolation | Input/output tested to 500 V AC rms (features list galvanic isolation 2.5 kV AC) |
| Ambient | −50 to +85 °C |
| Mounting | DIN B head mount |
| Safety | SIL 2 capable per IEC 61508 (QT option) |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |

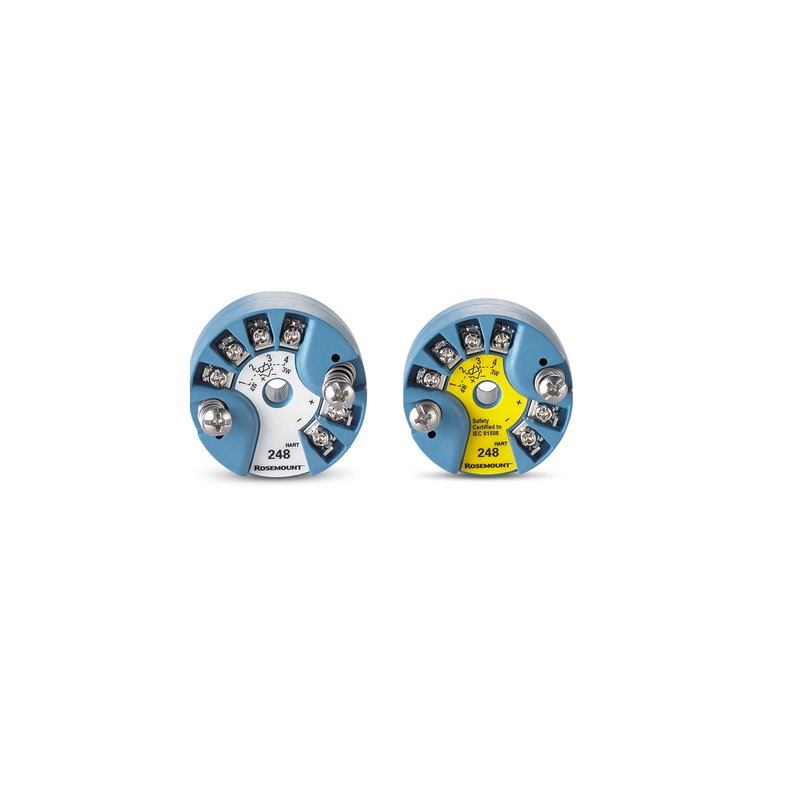

Photo: courtesy of Rosemount, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Rosemount 248 head-mount transmitter is a basic, reliable HART temperature transmitter that converts an RTD, thermocouple, millivolt or resistance input into a 4–20 mA/HART signal. It offers ±0.20 °C plus 0.10% of span accuracy with a Pt100, stability of ±0.1% of reading, and operates from −50 to +85 °C ambient.
It fits DIN B heads and enclosures, reduces installation cost compared with wiring sensors directly to the control system, and is available with SIL 2 certification and hazardous-area approvals.
Argonmark Ltd supplies Rosemount instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
