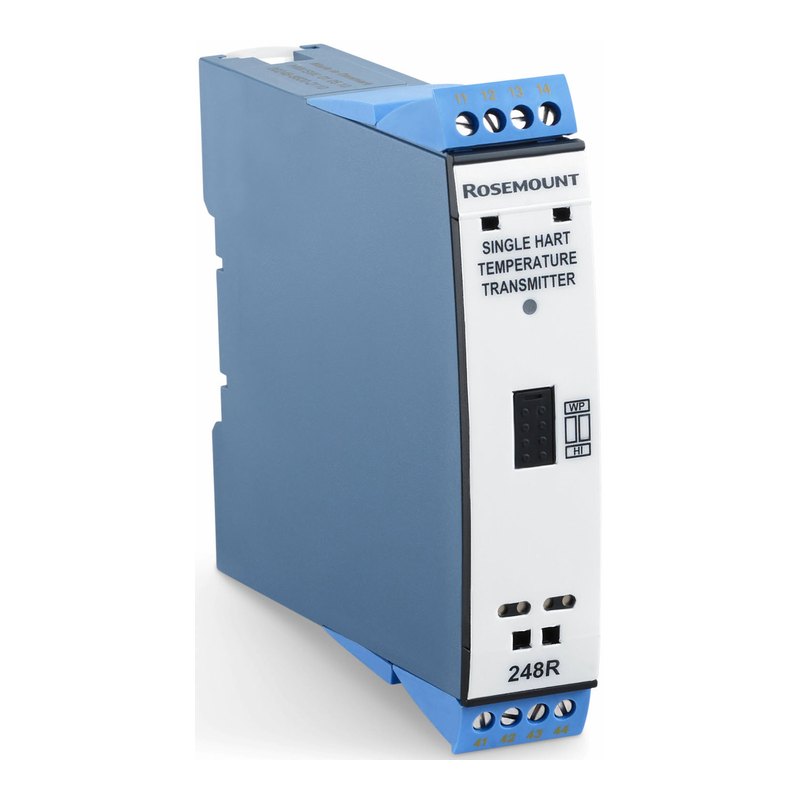

Rosemount 248R rail-mount HART 7 temperature transmitter, universal input, 2.5 kV isolation, 7.5–48 V DC
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Temperature
- Signal / Protocol: 4–20 mA, HART
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1576 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Rosemount |
| Model | 248R (rail mount, RK option) |
| Technical | |
| Type | Temperature |
| Signal / Protocol | 4–20 mA, HART |
| Hazardous area | General purpose |
Datasheet
Technical features
| DIN rail mounting for control rooms and marshalling cabinets | |
| Transmitter-sensor matching with Callendar-Van Dusen constants | |
| NAMUR NE21, NE43, NE44, NE89 and NE107 diagnostics | |
| Universal single-sensor input incl. GOST copper RTDs |
Applications
| Cabinet-mounted temperature conversion for DCS/PLC | |
| Retrofit of field temperature sensors to HART systems |
Key specifications
| Input | Single sensor: RTD (Pt100/Pt1000, Ni, Cu), thermocouple, mV, ohms |
|---|---|
| Output | 4–20 mA / HART 7 |
| Accuracy | Pt100: ±0.20 °C ±0.10% of span |
| Supply | 7.5–48 V DC |
| Isolation | 2.5 kV AC test / 55 V AC operation |
| Ambient | −50 to +85 °C |
Specification
| Input | RTD (Pt100/Pt1000, Ni, Cu), thermocouple, mV, ohms |
|---|---|
| Output | 4–20 mA, HART 7 |
| Accuracy (Pt100) | ±0.20 °C ±0.10% of span |
| Temperature effect (Pt100) | ±0.002 °C/°C ±0.004% of span |
| Supply | 7.5–48 V DC |
| Isolation | 2.5 kV AC test / 55 V AC continuous |
| Ambient / storage | −50 to +85 °C |
| Mounting | DIN rail |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Rosemount, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Rosemount 248R is a DIN-rail temperature transmitter with HART 7 that converts a single RTD, thermocouple, millivolt or resistance input into a 4–20 mA signal, with ±0.20 °C plus 0.10% of span accuracy on a Pt100. It runs on 7.5–48 V DC, provides 2.5 kV galvanic isolation and works from −50 to +85 °C.
Callendar-Van Dusen sensor matching improves system accuracy, and NAMUR-compliant diagnostics support asset management.
Argonmark Ltd supplies Rosemount instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
