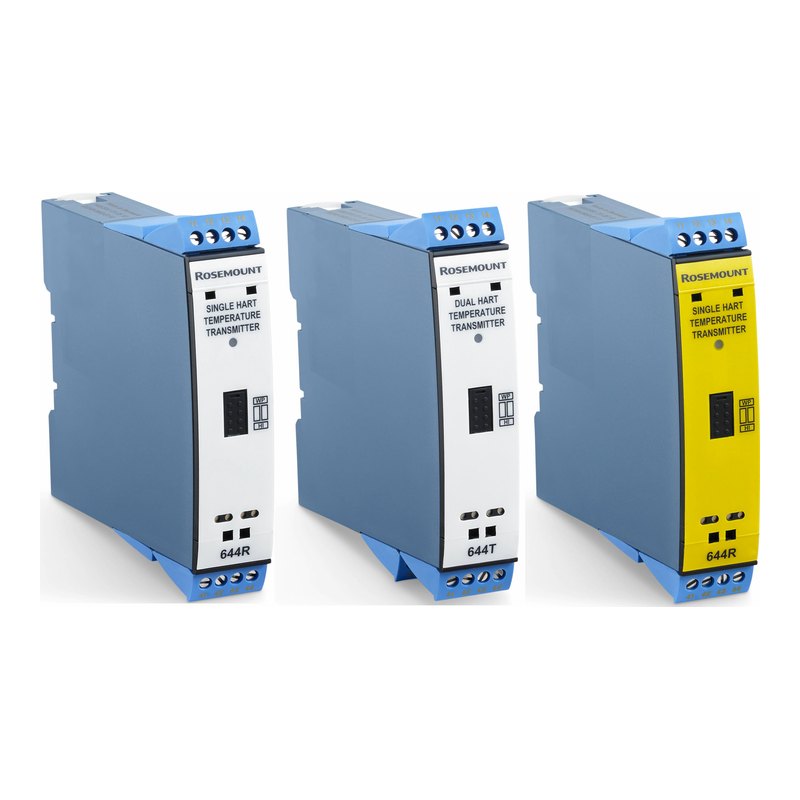

Rosemount 644 temperature transmitter (rail-mount 644R), single or dual input, HART 7, SIL 3, 2.5 kV isolation
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Temperature
- Signal / Protocol: 4–20 mA, HART
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1578 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Rosemount |
| Model | 644 (644R rail mount, RK option) |
| Technical | |
| Type | Temperature |
| Signal / Protocol | 4–20 mA, HART |
| Hazardous area | General purpose |
Datasheet
Technical features
| Customizable transmitter family; rail-mount form factor | |
| Single or dual sensor input with diagnostic suite | |
| Callendar-Van Dusen transmitter-sensor matching | |
| SIL 3 certified by an accredited third party | |
| Wide ambient −50 to +85 °C |
Applications
| Safety-instrumented and control temperature loops | |
| Cabinet-mounted temperature conversion |
Key specifications
| Input | Single or dual sensor: RTD (Pt100/Pt1000, Ni, Cu), thermocouple, mV, ohms |
|---|---|
| Output | 4–20 mA / HART 7 |
| Accuracy | Pt100: ±0.15 °C (±0.10 °C enhanced) ±0.03% of span |
| Supply | 7.5–48 V DC |
| Isolation | 2.5 kV AC test / 55 V AC operation |
| Safety | IEC 61508 SIL 3 capable |
Specification
| Inputs | RTD (Pt100/Pt1000, Ni, Cu), thermocouple, mV, ohms; single or dual |
|---|---|
| Output | 4–20 mA, HART 7 |
| Accuracy (Pt100) | ±0.15 °C standard, ±0.10 °C enhanced, ±0.03% of span |
| Temperature effect (Pt100) | ±0.002 °C/°C ±0.003% of span |
| Supply | 7.5–48 V DC |
| Isolation | 2.5 kV AC test / 55 V AC continuous |
| Ambient | −50 to +85 °C (SIL −40 to +80 °C) |
| Safety | IEC 61508 SIL 3 |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Rosemount, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Rosemount 644 is a versatile temperature transmitter family; the datasheet supplied covers the 644R rail-mount version with HART 7. It accepts one or two RTD, thermocouple, millivolt or resistance inputs and achieves ±0.15 °C (±0.10 °C enhanced) plus 0.03% of span with a Pt100.
It runs on 7.5–48 V DC with 2.5 kV galvanic isolation, operates from −50 to +85 °C, includes a diagnostic suite and Callendar-Van Dusen sensor matching, and is certified to IEC 61508 for SIL 3 applications.
Argonmark Ltd supplies Rosemount instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
