Rosemount 848T high-density 8-input temperature transmitter, FOUNDATION Fieldbus, RTD / T/C / mV / Ω / 4–20 mA
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Temperature
- Signal / Protocol: Foundation Fieldbus
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1579 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Rosemount |
| Model | 848T |
| Technical | |
| Type | Temperature |
| Signal / Protocol | Foundation Fieldbus |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Eight inputs in one device | low cost per point for high-density temperature measurement |
|---|---|
| Up to 128 temperatures on one FOUNDATION Fieldbus segment | |
| Measurement validation diagnostic detects sensor degradation, wiring problems, vibration and abnormal process variation | |
| Intrinsically safe design and enclosure options for installation near the process, including hazardous areas | |
| WirelessHART version extends to hard-to-reach locations | |
Applications
| Reactor, furnace, heat exchanger and bearing temperature profiles | |
| Tank farms and motor/compressor monitoring | |
| Any application with many temperature points close together |
Key specifications
| Inputs | 8 independently configurable: RTD (Pt100/Pt1000, Ni, Cu), thermocouple, mV, ohms (4–20 mA option) |
|---|---|
| Output | FOUNDATION Fieldbus (AI, MAI, ISEL blocks; backup LAS); WirelessHART version |
| Accuracy | Pt100: ±0.30 °C |
| Channel isolation | 10 V DC between sensor channels |
| Mounting | Close to the process; field enclosures |
| Approvals | Intrinsically safe; Class I Div 2; ATEX/IECEx/China type n; dust |
Specification
| Inputs | 8 channels: 2-, 3-wire RTDs, thermocouples, mV, ohms; 4–20 mA with option S002 |
|---|---|
| Accuracy (Pt100) | ±0.30 °C |
| Ambient effect (Pt100) | 0.003 °C/°C |
| Output | FOUNDATION Fieldbus with AI, MAI, ISEL function blocks and backup LAS |
| Isolation | 10 V DC between sensor channels |
| Approvals | IS; USA Class I Div 2 and dust ignition-proof; ATEX/IECEx/China type n; ATEX dust (enclosure required for some) |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |

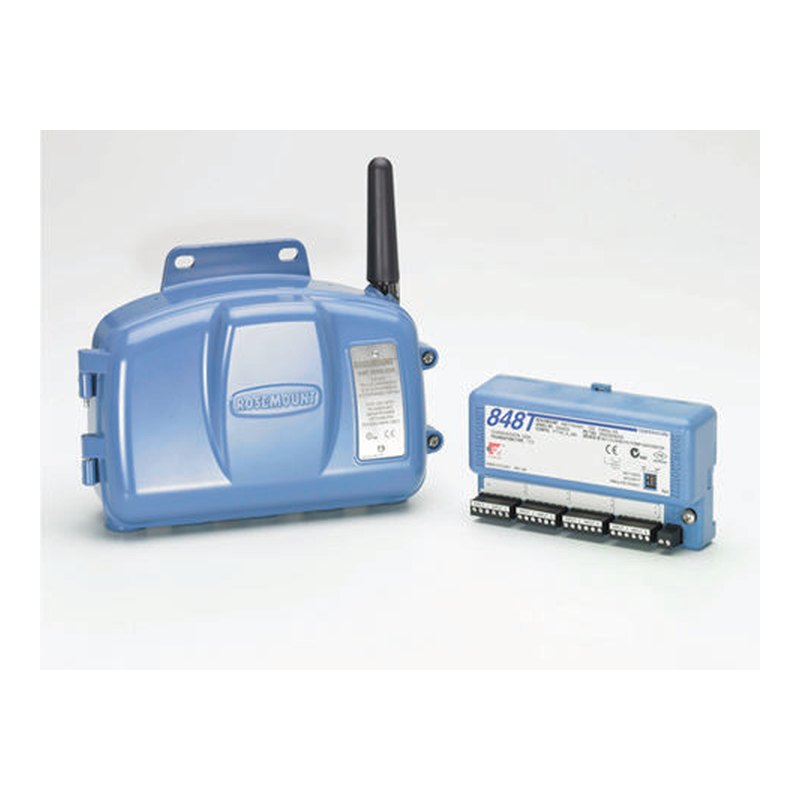

Photo: courtesy of Rosemount, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Rosemount 848T is a high-density temperature transmitter with eight independently configurable inputs for RTDs, thermocouples, millivolts, ohms or 4–20 mA, reducing the cost per measurement point. On FOUNDATION Fieldbus up to 128 temperatures can share one segment, and a WirelessHART version reaches locations without cabling.
It can be mounted close to the process in intrinsically safe or Division 2 areas, and its measurement validation diagnostic flags sensor degradation, wiring problems, high vibration and abnormal process behaviour.
Argonmark Ltd supplies Rosemount instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
