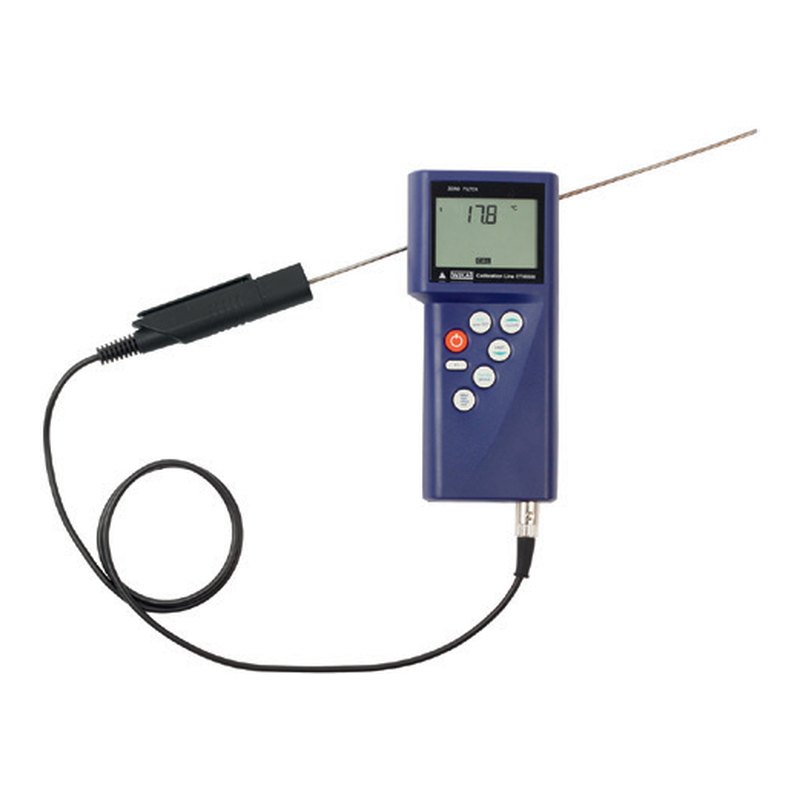

WIKA CTH63I0 intrinsically safe hand-held digital thermometer, Pt100, 0.1 K, Ex ib IIB T4
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Temperature
- Signal / Protocol: USB
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1582 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | WIKA |
| Model | CTH63I0 (Ex version of CTH6300) |
| Technical | |
| Type | Temperature |
| Signal / Protocol | USB |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Intrinsically safe industrial hand-held thermometer for Zone 1 gas hazardous areas | |
| Accuracy certified for the complete measuring chain (instrument + probe) | |
| Probe calibration by code, or 1-, 2- or 3-point adjustment | |
| Fast (4/s) or slow (1/s) measuring rate; min/max, hold, tare, zero; real-time clock | |
| Backlit 4½-digit two-line display; USB interface; service case option |
Applications
| Commissioning, maintenance and calibration of temperature instruments in hazardous areas | |
| Quality assurance and workshop temperature checks |
Key specifications
| Inputs | 1 or 2 Pt100 channels |
|---|---|
| Range | −200 to +600 °C (probe dependent) |
| Accuracy | 0.1 K (−100 to +200 °C), otherwise 0.1% of reading — complete measuring chain |
| Resolution | 0.1 K |
| Approval | ATEX II 2G Ex ib IIB T4 Gb (Zone 1) |
| Power | 9 V battery, ≈ 20 h |
Specification
| Probe type | Pt100 |
|---|---|
| Inputs | 1 or 2 |
| Range | −200 to +600 °C |
| Accuracy | 0.1 K (−100 to +200 °C); otherwise 0.1% of reading |
| Display | 4½-digit 2-line LCD, backlit; resolution 0.1 K |
| Measuring rate | 4/s or 1/s |
| Power | 9 V battery or rechargeable, ≈ 20 h |
| Operating / storage temperature | 0 to 40 °C / −10 to +50 °C |
| Interface | USB via cable |
| Case | Impact-resistant ABS, 200 × 93 × 44 mm, 300 g |
| Approvals | ATEX II 2G Ex ib IIB T4 Gb (T4 at 0–40 °C); EMC EN 61326 |
| Calibration | Factory certificate for the measuring chain; DAkkS optional |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of WIKA, used with permission (source) — background removed by Argonmark. All photo credits
Description
The WIKA CTH63I0 is the intrinsically safe version of the CTH6300 industrial hand-held thermometer, approved Ex ib IIB T4 for Zone 1. With one or two Pt100 probes it measures −200 to +600 °C, with 0.1 K accuracy between −100 and +200 °C certified for the complete measuring chain.
It offers fast or slow measuring rates, min/max, hold and tare, probe adjustment by code or at up to three points, a backlit display, USB and about 20 hours of battery life, which makes it practical for service and calibration work in hazardous plants.
Argonmark Ltd supplies WIKA instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
