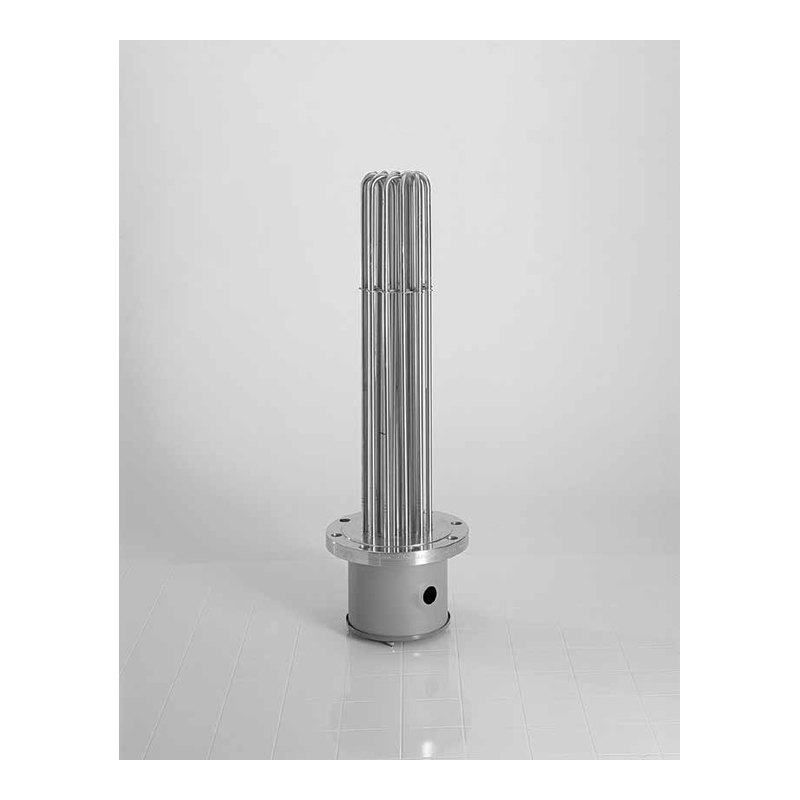

Watlow WATROD / FIREBAR ANSI flange immersion heaters for liquids and gases, up to 3 MW, 2 to 48 in flanges
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Heaters
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1584 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Watlow |
| Model | WATROD and FIREBAR flange heaters |
| Technical | |
| Type | Heaters |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| WATROD round tubular or FIREBAR flat elements brazed or welded to an ANSI flange | |
| FIREBAR packs more kW into a smaller bundle at lower watt density — a 6 in FIREBAR flange can replace a 10 in round-element flange (ideal for petroleum liquids) | |
| Integral thermowell | change sensors without draining the tank |
|---|---|
| Branch circuits limited to 48 A; repressed hairpins for longer life | |
| Options | SPST/DPST thermostats, Type J/K thermocouples, stand-off enclosures for processes above 100 °C, ASME Section VIII stamp |
| UL and CSA component recognition | |
Applications
| Water heating (deionized, demineralized, potable, process); rinse tanks | |
| Hydraulic oil, crude, asphalt and lube oils at API watt densities | |
| Air and gas flow heating; caustic and chemical baths; glycol freeze protection; boilers |
Key specifications
| Power | 150 W to 1 MW routinely (up to 3 MW); 240–480 V AC standard, recognized to 600 V AC |
|---|---|
| Watt density | Up to 15.5 W/cm² (100 W/in²) |
| Flanges | ANSI 2 to 48 in raised face/blind, 150 lb standard (higher classes available) |
| Sheath | Alloy 800/840 (870 °C), 316 SS or 304 SS (650 °C), steel (400 °C) |
| Flange material | Carbon steel, 316 SS or 304 SS |
| Enclosures | General purpose; moisture, corrosion or explosion resistant (Class 1 Div 1/2); CSA/ATEX/IECEx certified |
Specification
| Elements | WATROD round tubular or FIREBAR flat tubular |
|---|---|
| Wattage | 150 W to 1 MW standard; up to 3 MW |
| Voltage | 240–480 V AC typical; UL/CSA recognized to 600 V AC |
| Watt density | Up to 15.5 W/cm² |
| Sheath materials / max. temperature | Alloy 800/840: 870 °C; passivated 316 SS and 304 SS: 650 °C; steel: 400 °C; FIREBAR: Alloy 800 |
| Flanges | ANSI 2, 2½, 3 to 48 in raised face or blind; 16–24 in made to order |
| Flange materials | Carbon steel (standard), 316 SS, 304 SS |
| Pressure class | 150 lb standard |
| Terminal enclosures | General purpose (standard); moisture resistant, corrosion resistant, explosion resistant Class 1 Div 1 & 2 Groups B–D T1–T6; CSA/ATEX/IECEx certified versions |
| Controls | Optional SPST/DPST thermostats; Type J (to 540 °C) or K (to 1,100 °C) thermocouples for process or sheath high limit |
| Testing | All units inspected and/or tested for element-to-flange seal integrity |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Watlow, used with permission (source) — background removed by Argonmark. All photo credits
Description
Watlow flange immersion heaters consist of WATROD round or FIREBAR flat tubular elements brazed or welded to an ANSI flange, for heating liquids and gases in tanks and pressure vessels where high power is needed. They are available from 150 W to 1 MW (up to 3 MW) at watt densities up to 15.5 W/cm², on flanges from 2 to 48 in, with Alloy 800, stainless steel or steel sheaths for sheath temperatures up to 870 °C.
FIREBAR elements fit more power into a smaller bundle at lower watt density, which suits petroleum liquids. Integral thermowells, thermostats, thermocouples and general-purpose, moisture-, corrosion- or explosion-resistant terminal enclosures (including CSA/ATEX/IECEx certified) are available, as is ASME Section VIII stamping.
Argonmark Ltd supplies Watlow instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
