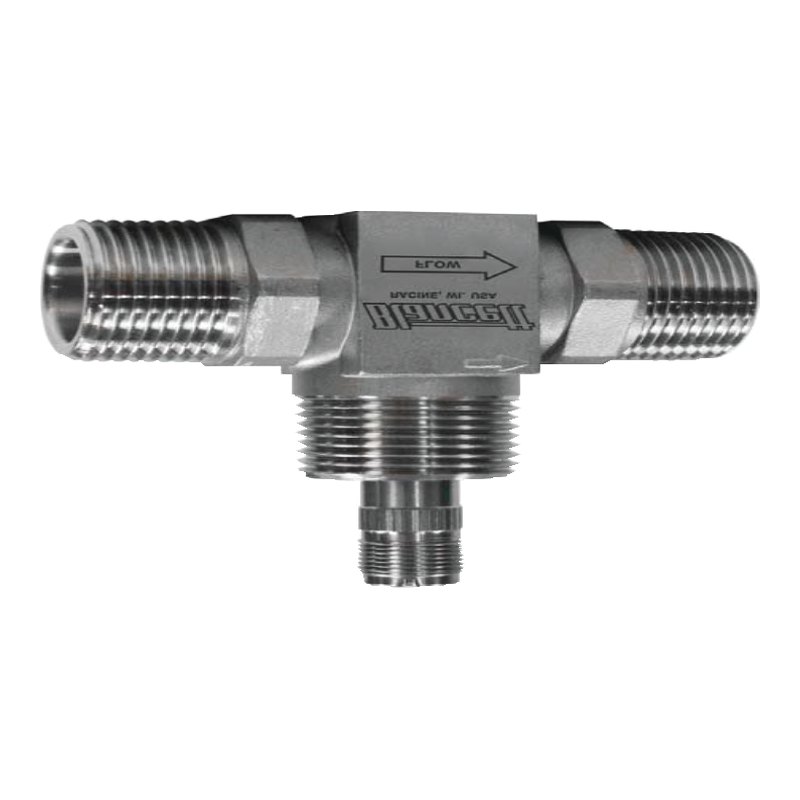

Blancett 1100 stainless steel turbine flow meter, ⅜ to 10 in, 2.3 L/min to 18,900 L/min, up to 345 bar
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Flow
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1585 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Blancett |
| Model | 1100 (threaded, grooved and flanged) |
| Technical | |
| Type | Flow |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Rugged meter originally developed for oil-field water-flood injection; suits corrosive and abrasive liquids | |
| 316 SS housing and rotor supports, duplex CD4MCU rotor, tungsten carbide shaft and journal bearings | |
| Magnetic pickup gives a frequency output proportional to flow; pairs with Blancett flow monitors and converters | |
| NIST-traceable water calibration; field-replaceable repair kits keep accuracy | |
| NPT, BSP, Victaulic grooved, hose-barb or ANSI/DIN flanged ends; any orientation |
Applications
| Oil-field water-flood injection and produced water | |
| Pipelines, mining and offshore liquid metering | |
| Chemical injection and industrial water |
Key specifications
| Flow range | 0.6–3 GPM (⅜ in) up to 500–5,000 GPM (10 in) — 2.3 to 18,927 L/min |
|---|---|
| Accuracy | ±1% of reading (⅞ in and larger); repeatability ±0.1% |
| Turndown | 10:1 |
| Pressure | 345 bar (5,000 psi) to 2 in; 55 bar (800 psi) 3–10 in NPT/grooved; flanges ANSI 150–1500, PN40 |
| Temperature | −101 to +177 °C |
| Materials | 316 SS body, CD4MCU rotor, tungsten carbide shaft and bearings |
Specification
| Materials | 316 SS body and rotor support; CD4MCU SS rotor; tungsten carbide rotor shaft and bearings; 304 SS flanges |
|---|---|
| Accuracy | ±1% of reading (⅞ in and larger); ±1% over upper 70% of range for ⅜, ½, ¾ in |
| Repeatability | ±0.1% |
| Turndown | 10:1 |
| Calibration | Water, NIST traceable |
| Pressure rating | 5,000 psi (345 bar) or 800 psi (55 bar) depending on size and ends; flanged per class |
| Temperature | −101 to +177 °C (standard pickup −101 to +165 °C) |
| End connections | NPT, BSP, Victaulic grooved, flange (ANSI 150, 300, 600, 900, 1500; PN40), hose barb |
| Installation | 10 D upstream, 5 D downstream straight pipe recommended |
| Certifications | CSA Class I Div 1 Groups C, D (IS); explosion-proof pickups per UL 1203 / CSA C22.2 No. 30 |
Sizes and flow ranges
| Size | Flow range (GPM) | Flow range (L/min) | K-factor (pulses/gal) | Max. pressure |
|---|---|---|---|---|
| ⅜ in | 0.6–3 | 2.3–11.4 | 18,000 | 345 bar |
| ½ in | 0.75–7.5 | 2.8–28.4 | 13,000 | 345 bar |
| ¾ in | 2–15 | 7.6–56.7 | 3,300 | 345 bar |
| ⅞ in | 3–30 | 11.4–113.6 | 3,100 | 345 bar |
| 1 in | 5–50 | 18.9–189 | 870 | 345 bar |
| 1½ in | 15–180 | 57–681 | 330 | 345 bar |
| 2 in | 40–400 | 151–1,514 | 52 | 345 bar |
| 3 in | 60–600 | 227–2,271 | 57 | 55 bar |
| 4 in | 100–1,200 | 379–4,543 | 29 | 55 bar |
| 6 in | 200–2,500 | 757–9,464 | 7 | 55 bar |
| 8 in | 350–3,500 | 1,325–13,249 | 3 | 55 bar |
| 10 in | 500–5,000 | 1,893–18,927 | 1.6 | 55 bar |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Blancett, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Blancett 1100 is a rugged stainless steel turbine flow meter for liquids, built originally for oil-field water-flood injection. Sizes from ⅜ to 10 in cover 0.6 GPM up to 5,000 GPM (about 2.3 to 18,900 L/min) with ±1% of reading accuracy, ±0.1% repeatability and 10:1 turndown, and pressure ratings up to 345 bar.
It has a 316 SS body, a duplex CD4MCU rotor and tungsten carbide shaft and bearings to resist corrosive and abrasive fluids. A magnetic pickup gives a pulse output for Blancett flow monitors. Ends include NPT, BSP, grooved and ANSI or DIN flanges, and field repair kits restore calibrated accuracy.
Argonmark Ltd supplies Blancett instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
