Blancett QuikSert wafer turbine flow meter for liquids, between ASME flanges, 2.3 to 18,900 L/min
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Flow
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1586 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Blancett |
| Model | QuikSert (B131–B139) |
| Technical | |
| Type | Flow |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Between-the-flange design | no mating flanges needed, less space, easy one-person installation |
|---|---|
| Helical turbine with modified upstream and downstream flow straighteners | |
| Stainless steel body and tungsten carbide bearings for aggressive liquids | |
| Sine-wave pulse output; pickups include standard, high-temperature, preamplified, FM IS and ATEX Ex ia | |
| Field repair kits; CRN registered | |
Applications
| Produced water, injection and chemical metering where space is limited | |
| Pipeline and process liquid flow with existing flanges | |
| Refined fuels, process water and chemicals |
Key specifications
| Flow range | 0.6–3 GPM up to 500–5,000 GPM (2.3–18,927 L/min) |
|---|---|
| Accuracy | ±1% of reading (⅞ in and larger); repeatability ±0.1% |
| Mounting | Wafer style between ASME B16.5 flanges (150# to 1500#) |
| Pressure | Per flange class: 20 bar (150#) to 256 bar (1500#) |
| Temperature | −101 to +177 °C (232 °C with high-temp pickup) |
| Materials | 316/316L SS body, CD4MCu rotor, tungsten carbide shaft and bearings |
Specification
| Materials | 316/316L SS body; CD4MCu SS rotor; tungsten carbide bearings and shaft; 316L rotor support |
|---|---|
| Accuracy | ±1% of reading for ⅞ in and larger; ±1% over upper 70% of range for ⅜, ½, ¾ in |
| Repeatability | ±0.1% |
| Turndown | ≈ 10:1 |
| Calibration | Water; NIST-traceable certificate available |
| Operating temperature | −101 to +177 °C; to 232 °C with high-temperature pickup |
| End connection | Wafer style to ASME B16.5 |
| Pressure rating (carbon steel flanges, 38 °C) | 150#: 20 bar; 300#: 51 bar; 600#: 102 bar; 900#: 153 bar; 1500#: 256 bar (≤ 2 in bore) |
| Pickups | Standard (−101 to 165 °C), high temperature (to 232 °C), with preamplifier, FM intrinsically safe, ATEX II 1G Ex ia IIC T5 |
| Installation | 10 D upstream, 5 D downstream; avoid severe pulsation and vibration |
| Sizes | ⅜ to 10 in bore |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |

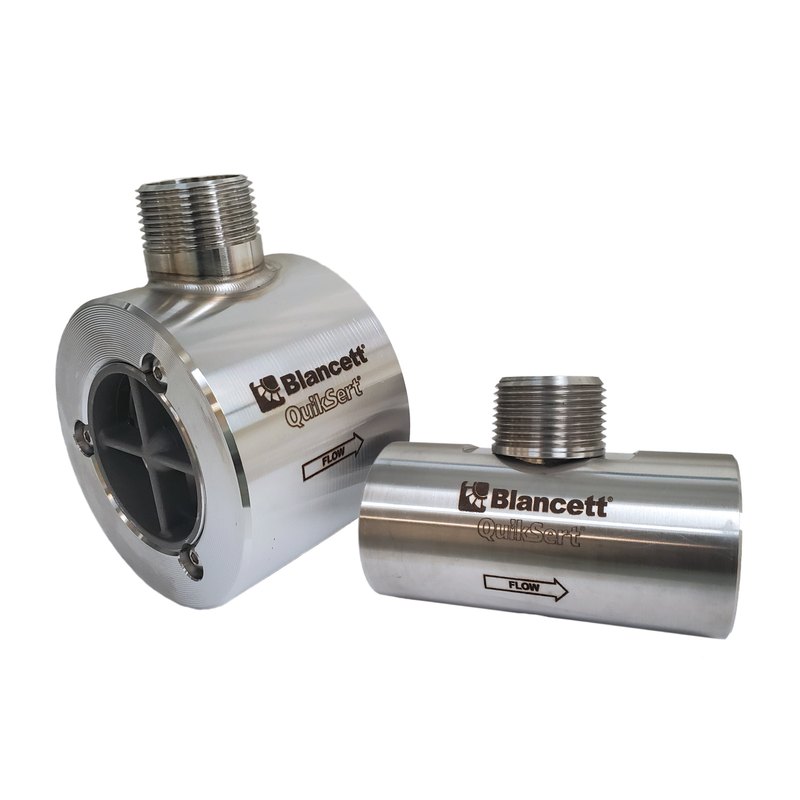

Photo: courtesy of Blancett, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Blancett QuikSert is a wafer-style turbine flow meter for liquids that clamps between existing ASME flanges, saving space and mating flanges and allowing quick one-person installation. Sizes from ⅜ to 10 in cover 0.6 GPM up to 5,000 GPM (about 2.3 to 18,900 L/min) with ±1% of reading accuracy and ±0.1% repeatability.
Its stainless steel body, duplex helical rotor and tungsten carbide bearings suit aggressive liquids, and its pressure rating follows the flange class (up to 256 bar at 1500#). A choice of magnetic pickups, including high-temperature and intrinsically safe versions, connects to Blancett flow monitors.
Argonmark Ltd supplies Blancett instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
