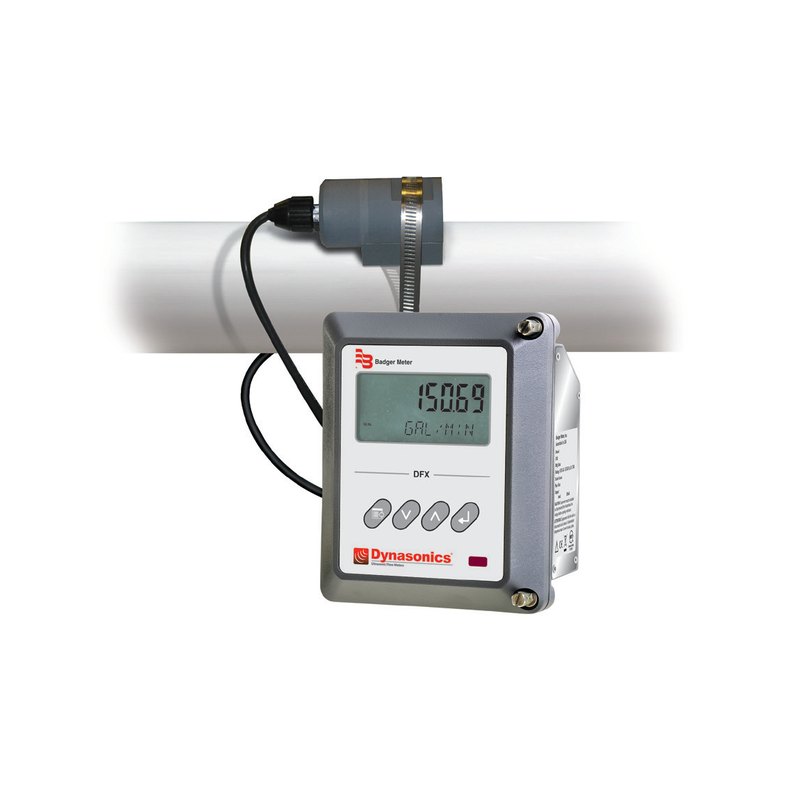

Dynasonics DFX clamp-on Doppler ultrasonic flow meter for slurries and aerated liquids, pipes from 6 mm
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Flow
- Signal / Protocol: 4–20 mA, Relay / switch, Pulse / frequency
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1589 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Dynasonics |
| Model | DFX with DT9 transducers |
| Technical | |
| Type | Flow |
| Signal / Protocol | 4–20 mA, Relay / switch, Pulse / frequency |
| Hazardous area | General purpose |
Datasheet
Technical features
| Non-intrusive clamp-on measurement of liquids with suspended solids or gas bubbles: sewage, mud and slurries | |
| Installs on live, full pipes in minutes — no cutting, flanges or shutdown; no moving parts | |
| Automatic gain control and in-field linearization | |
| 8-digit rate and resettable totalizer on backlit LCD | |
| Up to four meters can be synchronized on one pipe or manifold |
Applications
| Sewage, sludge and wastewater flow | |
| Mining and drilling mud slurries | |
| Aerated liquids and process flows with suspended solids |
Key specifications
| Velocity range | 0.05–9 m/s (0.15–30 ft/s) |
|---|---|
| Accuracy | ±2% of full scale over calibrated span |
| Pipe sizes | 6–25 mm (DT95) and 25 mm and larger (DT94) |
| Outputs | 4–20 mA, dual relays (Form C), rate pulse |
| Power | 100/115/230 V AC or 12–28 V DC |
| Enclosure | NEMA 4X (IP66) monitor; IP67 transducers to 90 °C |
Specification
| Velocity range | 0.05–9 m/s |
|---|---|
| Accuracy | ±2% of full scale over the calibrated span |
| Liquid requirements | ≥ 100 ppm of sonic reflectors larger than 35 µm; pipe must be full |
| Pipe materials | Most metal and plastic pipes (not concrete, woodstave, PTFE-lined or FRP) |
| Display | 2-line × 8-character backlit LCD; 8-digit rate and total |
| Response time | 6–60 s selectable |
| 4–20 mA | 800 Ω max., 12-bit |
| Relays | 2 optically isolated Form C, 200 V AC 0.5 A: rate alarm, totalizer pulse, error |
| Rate pulse | 500 mV AC or open collector, 2,500 Hz max. |
| Power | 115/100/230 V AC ±15%, 17 VA; or 12–28 V DC, 7 VA |
| Ambient | −40 to +85 °C, 0–95% RH |
| Monitor enclosure | NEMA 4X (IP66), polycarbonate; 178 × 146 × 99 mm |
| Transducers | 625 kHz compression mode; IP67 (1 m, 30 min); −40 to +90 °C; cable 6, 15 or 30 m (to 297 m) |
| Approvals | UL / CSA 61010-1 general safety |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Dynasonics, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Dynasonics DFX is a clamp-on Doppler ultrasonic flow meter for liquids that carry suspended solids or gas bubbles, such as sewage, sludge, mud and slurries. Its DT9 transducers strap to the outside of metal or plastic pipes from 6 mm upwards, measuring velocities from 0.05 to 9 m/s with ±2% of full scale accuracy and no pipe cutting or process shutdown.
The NEMA 4X monitor shows rate and total and offers 4–20 mA, dual relay and pulse outputs, powered from AC mains or 12–28 V DC. Transducers are IP67 and rated to 90 °C, with cables up to about 300 m.
Argonmark Ltd supplies Dynasonics instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
