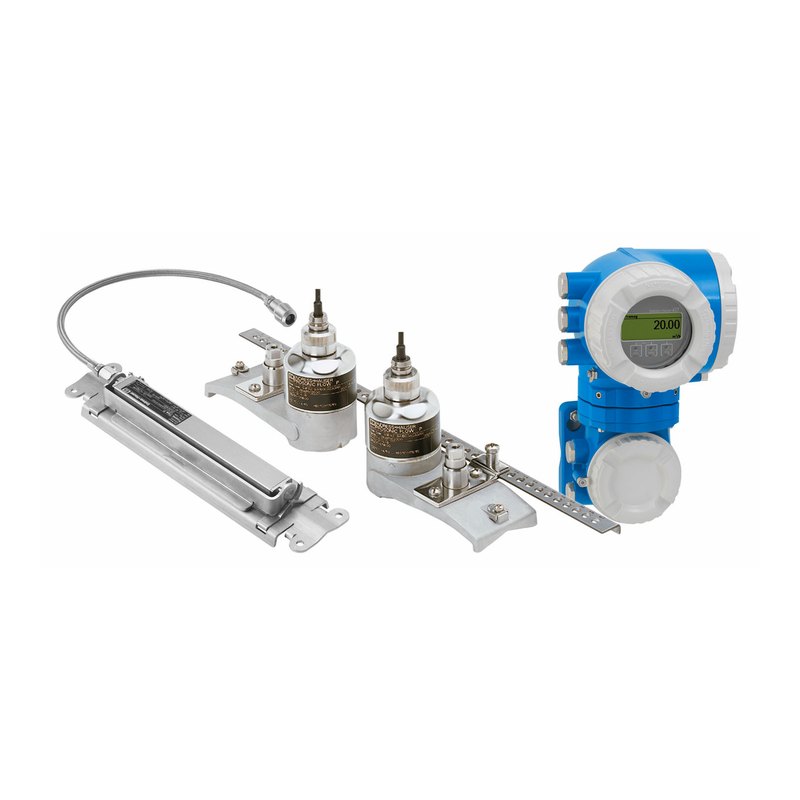

Endress+Hauser Proline Prosonic Flow P 500 clamp-on ultrasonic flow meter, DN15 to DN4000, −40 to 170 °C, up to 3 I/Os
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Flow
- Signal / Protocol: 4–20 mA, HART, Modbus, RS-485, Relay / switch, Pulse / frequency
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1590 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Endress+Hauser |
| Model | Proline Prosonic Flow P 500 (9P5B) |
| Technical | |
| Type | Flow |
| Signal / Protocol | 4–20 mA, HART, Modbus, RS-485, Relay / switch, Pulse / frequency |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Non-invasive transit-time measurement independent of pressure, density and conductivity; bidirectional | |
| FlowDC flow-disturbance compensation keeps accuracy with only 2 × DN inlet/outlet using two sensor sets | |
| Mounting without process interruption; long-term stable coupling pads | |
| Sensors for metal, GRP and plastic pipes | |
| Remote transmitter with up to 3 freely configurable I/Os, backlit touch display, WLAN and web server | |
| Heartbeat Technology verification; optional data logging (Extended HistoROM) |
Applications
| Liquid hydrocarbons, chemicals and water in process plants | |
| Retrofit flow measurement without cutting pipes | |
| Large-diameter lines up to 4 m and lines with short straight runs |
Key specifications
| Measured variables | Volume flow, flow velocity, sound velocity; calculated mass flow |
|---|---|
| Nominal diameter | DN 15 to 4000 (½ to 160 in) |
| Velocity range | 0–15 m/s; turndown > 150:1 |
| Accuracy | ±2% of reading typical (±0.5% with field calibration); repeatability ±0.3% |
| Medium temperature | −40 to +170 °C |
| Approvals | ATEX/IECEx Ex db ia, cCSAus; SIL by design |
Measurement
| Principle | Ultrasonic transit-time difference |
|---|---|
| Velocity range | 0 to 15 m/s (sensor dependent) |
| Operable flow range | Over 150:1 |
| Maximum measured error | DN 15: ±3% o.r. ± 5 mm/s; DN 25–200: ±2% o.r. ± 7.5 mm/s; > DN 200: ±2% o.r. ± 3 mm/s (typical installation); ±0.5% o.r. with field calibration (Re ≥ 10,000) |
| Repeatability | ±0.3% for velocities > 0.3 m/s |
| External inputs | Temperature or density via 4–20 mA, HART or Modbus |
Transmitter and installation
| Outputs | 4–20 mA HART; pulse/frequency/switch; relay; current input; status input; Modbus RS485 (up to 3 I/Os) |
|---|---|
| Power | 24 V DC ±20% or 100–240 V AC |
| Ambient temperature | Transmitter −40 to +60 °C |
| Protection | Transmitter IP66/67 Type 4X; sensors IP67/IP68 Type 6P |
| Sensor cable | TPE (−40 to +80 °C) or PTFE (−50 to +170 °C), up to 30 m |
| Hazardous area | ATEX/IECEx II2G Ex db ia IIC T6…T1 Gb (sensor); Zone 1/2, Class I Div 1/2 |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Endress+Hauser, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Endress+Hauser Proline Prosonic Flow P 500 is a clamp-on transit-time ultrasonic flow meter for liquids in pipes from DN 15 to DN 4000. Mounted from outside without interrupting the process, it measures bidirectional flow from 0 to 15 m/s independent of pressure, density and conductivity, with typical accuracy of ±2% of reading (±0.5% with field calibration) and ±0.3% repeatability, and handles media from −40 to +170 °C.
FlowDC compensation keeps accuracy with very short inlet runs, and sensors are available for metal, plastic and GRP pipes. The remote Proline 500 transmitter offers up to three configurable I/Os (4–20 mA HART, pulse, relay, Modbus), a touch display with WLAN, Heartbeat verification and Ex db ia approvals.
Argonmark Ltd supplies Endress+Hauser instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
