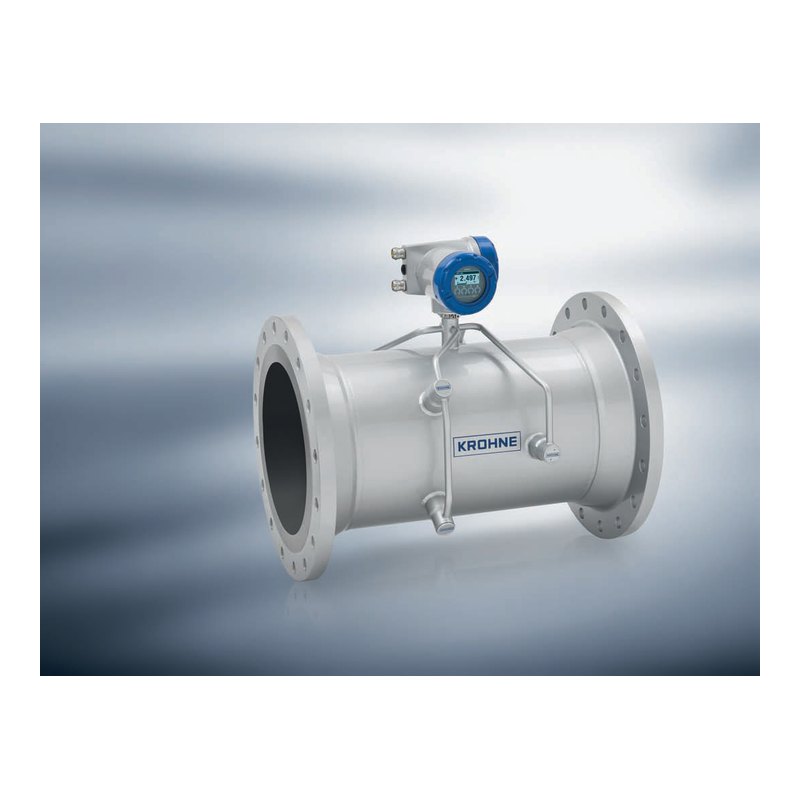

KROHNE OPTISONIC 3400 3-beam inline ultrasonic flow meter for liquids, DN25 to DN3000, ±0.3%
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Flow
- Signal / Protocol: 4–20 mA, HART, Modbus, Foundation Fieldbus, PROFIBUS, RS-485, Pulse / frequency
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1591 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | KROHNE |
| Model | OPTISONIC 3400 (UFC 400 converter) |
| Technical | |
| Type | Flow |
| Signal / Protocol | 4–20 mA, HART, Modbus, Foundation Fieldbus, PROFIBUS, RS-485, Pulse / frequency |
| Hazardous area | General purpose |
Datasheet
Technical features
| Three parallel acoustic paths fully welded into the meter body: accurate bidirectional measurement with no moving parts and no pressure loss | |
| Measures volume flow, mass flow, velocity and velocity of sound per path | |
| Extensive diagnostics to NAMUR NE 107 | per-path signal quality, empty pipe, flow conditions |
|---|---|
| Liquids up to 1,000 cSt (high-viscosity option), ≤ 2% gas and ≤ 5% solids | |
| Compact or remote converter; cryogenic version | |
Applications
| Custody-grade process liquid flow | hydrocarbons, chemicals, water |
|---|---|
| Large-diameter water and cooling water lines | |
| Cryogenic liquids (LNG, liquid gases) with cryogenic version | |
Key specifications
| Nominal diameter | DN25–3000 (1–120 in) |
|---|---|
| Accuracy | ±0.3% of reading ± 2 mm/s; repeatability ±0.2% |
| Process temperature | −45 to +140 °C compact; to +180 °C remote; cryogenic −200 °C |
| Outputs | 4–20 mA HART 7, pulse, frequency, status; Modbus, FOUNDATION Fieldbus, Profibus PA/DP |
| Power | 100–230 V AC or 24 V AC/DC |
| Pressure | PN6–PN40; ASME 150–900 lb; JIS 10K/20K |
Specification
| Measuring principle | Ultrasonic transit time, 3 parallel paths |
|---|---|
| Nominal diameter | DN25 to DN3000 (1 to 120 in) |
| Maximum measuring error | ±0.3% of measured flow ±2 mm/s (water, 20 °C, 10 DN inlet) |
| Repeatability | ±0.2% |
| Process temperature | Compact −45 to +140 °C; remote −45 to +180 °C; cryogenic −200 to +180 °C (remote, all stainless) |
| Ambient temperature | −40 to +65 °C (stainless converter −40 to +60 °C) |
| Pressure ratings | EN 1092-1 PN40 (DN25–80) to PN6 (DN1200–3000); ASME B16.5 150/300/600/900 lb (1–24 in); JIS 10K/20K |
| Media | Single-phase liquids; gas ≤ 2%, solids ≤ 5% by volume; viscosity ≤ 100 cSt (≤ 1,000 cSt option) |
| Wetted transducers | Stainless steel 1.4404 (316L) |
| Display | Backlit graphic LCD, optical keys; NE 107 status icons |
| Communication | HART 7, Modbus RS485, FOUNDATION Fieldbus ITK6, Profibus PA/DP |
| Power | 100–230 V AC; option 24 V AC/DC |
| Inlet section | 10 DN |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of KROHNE, used with permission (source) — background removed by Argonmark. All photo credits
Description
The KROHNE OPTISONIC 3400 is an inline ultrasonic flow meter for liquids with three parallel acoustic paths welded into the meter body, giving bidirectional measurement accurate to ±0.3% of reading ±2 mm/s with ±0.2% repeatability, and no moving parts or pressure loss. It covers DN25 to DN3000 and process temperatures from −45 to +180 °C, with a cryogenic version down to −200 °C.
The UFC 400 converter reports volume and mass flow, velocity and sound velocity, provides NAMUR NE 107 diagnostics per path, and offers 4–20 mA HART 7, pulse, Modbus, FOUNDATION Fieldbus and Profibus outputs.
Argonmark Ltd supplies KROHNE instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
