KROHNE OPTISONIC 6300 stationary clamp-on ultrasonic flow meter, single, dual-path or X mode, DN15 to DN4000
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Flow
- Signal / Protocol: 4–20 mA, HART, Foundation Fieldbus, Pulse / frequency
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1592 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | KROHNE |
| Model | OPTISONIC 6300 (UFC 300 converter) |
| Technical | |
| Type | Flow |
| Signal / Protocol | 4–20 mA, HART, Foundation Fieldbus, Pulse / frequency |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Permanent clamp-on installation without cutting the pipe or stopping the process | |
| Single path, dual path on one or two pipes, or X-mode direct paths for redundancy and lower uncertainty | |
| Dynamic path replacement compensates a failing path in dual-path mode | |
| Small, medium and large sensor rails for DN15 up to DN4000 | |
| NE 107 diagnostics; IP66/67 sensors; Ex version for Zones 1 and 2 |
Applications
| Retrofit flow measurement on existing lines in oil, gas, chemical and water plants | |
| Large pipes up to 4 m diameter | |
| Redundant measurement with dual paths |
Key specifications
| Nominal diameter | DN15–4000 (½–160 in) depending on sensor rail |
|---|---|
| Accuracy | ≥ DN50: ±1% of reading (0.5–20 m/s); < DN50: ±3%; repeatability ±0.2% |
| Field calibration | Up to ±0.5% (≥ DN50) |
| Process temperature | −40 to +120 °C standard |
| Outputs | 4–20 mA HART, pulse, frequency, status; fieldbus options |
| Approvals | ATEX / IECEx Zone 1–2 (sensor; F converter) |
Specification
| Measuring principle | Ultrasonic transit time, clamp-on |
|---|---|
| Sensor rails | DN15–100, DN50–400, DN50–1250, DN200–2000, DN200–4000 |
| Maximum measuring error | ≥ DN50: ±1% of reading (0.5–20 m/s), ±5 mm/s (0.1–0.5 m/s); < DN50: ±3% of reading, ±15 mm/s |
| Field calibration | Improves to ±0.5% (≥ DN50) or ±1% (< DN50) |
| Repeatability | ±0.2% |
| Process temperature | −40 to +120 °C (standard) |
| Ambient temperature | Sensor −40 to +70 °C |
| Converter | UFC 300 field (F) or wall housing; IP65/66 (converter), IP66/67 NEMA 4X/6 (sensor) |
| Power | 100–230 V AC standard (24 V options) |
| Approvals | ATEX KIWA 17ATEX0034 X; IECEx KIWA 17.0017X (sensor), 18.0003X (converter F) |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |

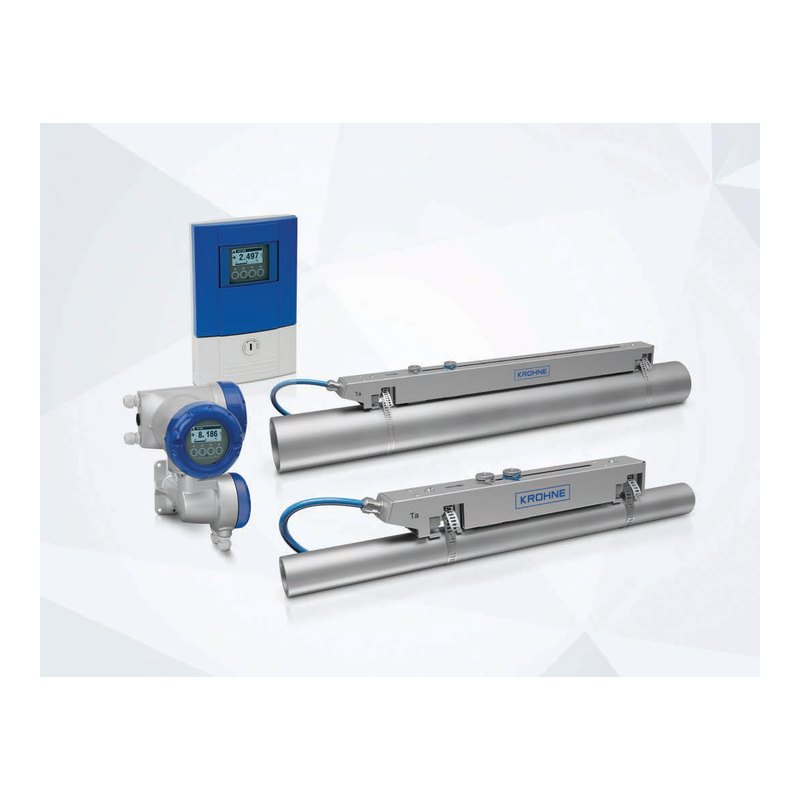

Photo: courtesy of KROHNE, used with permission (source) — background removed by Argonmark. All photo credits
Description
The KROHNE OPTISONIC 6300 is a permanently installed clamp-on ultrasonic flow meter for liquids, mounted on the outside of pipes from DN15 to DN4000 without cutting the line or stopping the process. Single-path, dual-path and X-mode configurations are available; the dual-path versions add redundancy with automatic path replacement and lower uncertainty.
Accuracy is ±1% of reading for pipes of DN50 and above (±3% below), improvable to ±0.5% by field calibration, with ±0.2% repeatability. The UFC 300 converter offers HART, pulse and fieldbus outputs, and sensors and converter are approved ATEX/IECEx for Zones 1 and 2.
Argonmark Ltd supplies KROHNE instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
