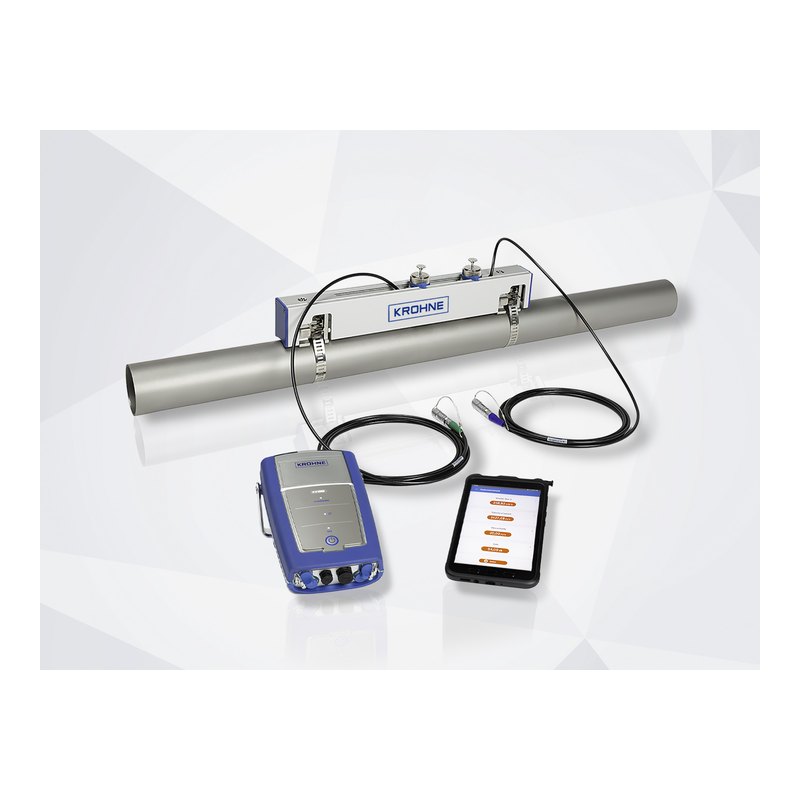

KROHNE OPTISONIC 6300 P V2 portable clamp-on ultrasonic flow meter, battery 16 h, data logger, DN15 to DN4000
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Flow
- Signal / Protocol: 4–20 mA, Pulse / frequency
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1593 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | KROHNE |
| Model | OPTISONIC 6300 P V2 |
| Technical | |
| Type | Flow |
| Signal / Protocol | 4–20 mA, Pulse / frequency |
| Hazardous area | General purpose |
Datasheet
Technical features
| Portable battery-powered converter with sensor rails for temporary or check measurements | |
| 1 or 2 paths | two paths on one pipe or one path on each of two pipes; averaging, adding or subtracting results |
|---|---|
| Small (2 MHz), medium (1 MHz) and large (500 kHz) transducers for DN15 to DN4000 | |
| Integrated data logger with free choice of logged values | |
| Supplied in a carrying case; metal straps for pipes up to DN250 | |
Applications
| Temporary flow surveys and pump/energy audits | |
| Checking installed flow meters | |
| Troubleshooting in water, chemical and process plants |
Key specifications
| Nominal diameter | DN15–4000 (½–160 in) |
|---|---|
| Accuracy | ≥ DN50: ±1% of reading; < DN50: ±3%; repeatability ±0.2% |
| Battery | Li-ion polymer 10,200 mAh, ≈ 16 h operation, ≈ 8 h charge |
| Data logger | Up to 16 GB / 500 log files |
| Outputs | 0/4–20 mA, pulse, frequency, status (optional I/O box) |
| Process temperature | −40 to +120 °C standard |
Specification
| Transducers | Small 2 MHz: DN15–150 (1 rail); medium 1 MHz: DN50–250 (1 rail), DN200–1500 (2 rails); large 500 kHz: DN200–4000 (2 rails) |
|---|---|
| Maximum measuring error | ≥ DN50: ±1% of reading (0.5–20 m/s), ±5 mm/s (0.1–0.5 m/s); < DN50: ±3%, ±15 mm/s |
| Repeatability | < ±0.2% |
| Installation | 10 DN straight inlet, 5 DN outlet |
| Process temperature | −40 to +120 °C (standard) |
| Outputs | 0(4)–20 mA, pulse, frequency and/or status via optional I/O box |
| Data logger | Up to 16 GB, 500 log files |
| Battery | Li-ion polymer 10,200 mAh; ≈ 16 h measuring, ≈ 8 h charging; LED charge indication |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of KROHNE, used with permission (source) — background removed by Argonmark. All photo credits
Description
The KROHNE OPTISONIC 6300 P V2 is a portable clamp-on ultrasonic flow meter for temporary measurements and flow surveys on liquids in pipes from DN15 to DN4000. A battery-powered converter runs about 16 hours, logs data to up to 16 GB, and can measure one or two paths, on one pipe or two.
With small, medium or large transducer rails it achieves ±1% of reading on pipes of DN50 and above (±3% below) with ±0.2% repeatability. An optional I/O box adds 4–20 mA, pulse and status outputs.
Argonmark Ltd supplies KROHNE instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
