Panametrics DigitalFlow DF868 ultrasonic liquid flow meter, clamp-on or wetted, 1 or 2 channels, explosion-proof option
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Flow
- Signal / Protocol: 4–20 mA, Modbus, Pulse / frequency
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1594 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Panametrics |
| Model | DigitalFlow DF868 |
| Technical | |
| Type | Flow |
| Signal / Protocol | 4–20 mA, Modbus, Pulse / frequency |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Transit-time flow meter for virtually any clean liquid: water, chemicals, hydrocarbons, lubricating oils | |
| Clamp-on transducers (no pipe cutting) or wetted transducers for highest accuracy | |
| Optional second channel for two pipes or two-path averaging to cancel profile distortion and swirl | |
| Automatic Tracking Window (ATW) keeps accuracy as fluid conditions change | |
| Two backlit graphic displays, 39-key keypad, data logging and diagnostics | |
| Energy measurement with optional RTD inputs |
Applications
| Water, wastewater and cooling water | |
| Hydrocarbons, refined products and lubricating oils | |
| Chemicals and process liquids; energy (BTU) metering |
Key specifications
| Pipe sizes | Clamp-on 12.7 mm to 7.6 m (0.5–300 in); wetted 25 mm to 5 m (1–200 in) |
|---|---|
| Accuracy | ±0.5% of reading with process calibration; typical clamp-on ±1–2%, wetted ±1% |
| Velocity range | −12.2 to +12.2 m/s, bidirectional; rangeability 400:1 |
| Repeatability | ±0.1 to 0.3% of reading |
| Outputs | 2 isolated 0/4–20 mA; options: up to 3 analog or totalizer/frequency boards, alarms, RTD inputs, Modbus |
| Enclosure | Type 4X/IP66; optional explosion-proof Class I Div 1 B–D or flameproof II 2 G Ex d IIC |
Specification
| Measurement | Volumetric flow, totalized flow, velocity |
|---|---|
| Velocity range | ±12.2 m/s (±40 ft/s) |
| Rangeability | 400:1 |
| Accuracy | ±0.5% of reading with process calibration; clamp-on typical ±1–2% (pipe ID > 150 mm), wetted typical ±1% |
| Repeatability | ±0.1–0.3% of reading |
| Pipe materials | All metals and most plastics |
| Channels | 1 standard; 2 optional |
| Outputs | Two isolated 0/4–20 mA (550 Ω); option boards: analog, totalizer/frequency (4 per board, 10 kHz), alarms, RTD/4–20 mA inputs |
| Display | Two 64 × 128 pixel backlit graphic LCDs |
| Power | 100–130 or 200–265 V AC 50/60 Hz, or 12–28 V DC; 20 W max. |
| Operating temperature | −20 to +55 °C (electronics) |
| Transducer temperature | Clamp-on −40 to +150 °C standard (to 350 °C optional); wetted to 260 °C+ depending on type |
| Enclosure | Epoxy-coated aluminium Type 4X/IP66; optional explosion-proof Class I Div 1 Groups B, C, D or flameproof II 2 G Ex d IIC T6 |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |

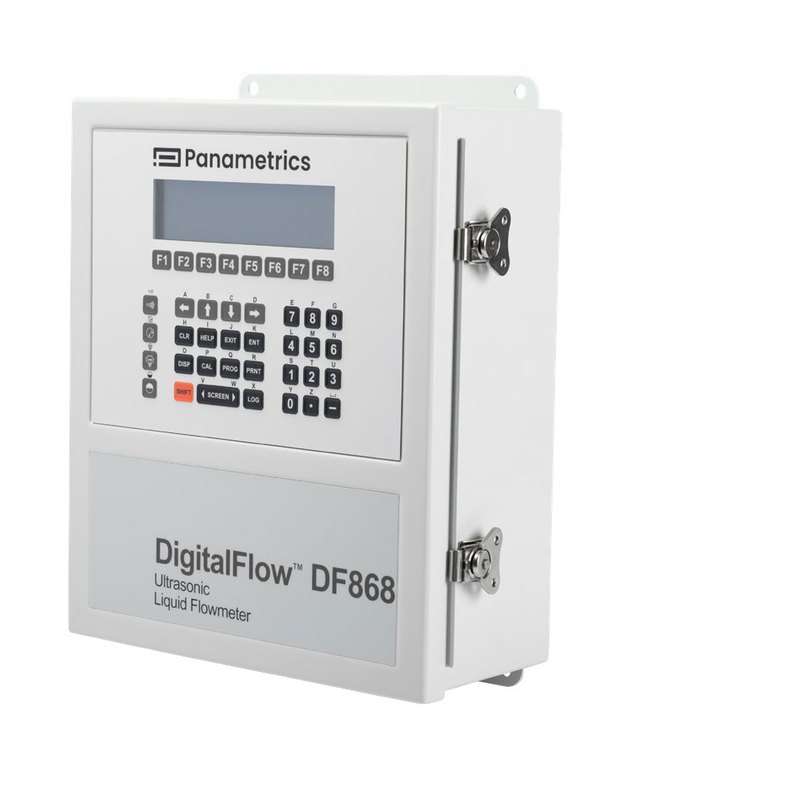

Photo: courtesy of Panametrics, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Panametrics DigitalFlow DF868 is a fixed transit-time ultrasonic flow meter for clean liquids, used with clamp-on transducers on pipes from 12.7 mm to 7.6 m or wetted transducers from 25 mm to 5 m. It measures bidirectional flow up to ±12.2 m/s with 400:1 rangeability, typically ±1–2% of reading clamp-on and ±1% wetted (±0.5% with process calibration), and ±0.1–0.3% repeatability.
A second channel can measure two pipes or average two paths, and the Automatic Tracking Window maintains accuracy as fluid properties change. It has dual graphic displays, isolated 4–20 mA outputs plus option boards, and Type 4X, explosion-proof or flameproof enclosures.
Argonmark Ltd supplies Panametrics instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
