Panametrics TransPort PT900 portable clamp-on ultrasonic flow meter with tablet app, DN15 to DN600, 1 or 2 channels
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Flow
- Signal / Protocol: 4–20 mA, Modbus, RS-485, USB, Bluetooth, Pulse / frequency
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1595 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Panametrics |
| Model | TransPort PT900 |
| Technical | |
| Type | Flow |
| Signal / Protocol | 4–20 mA, Modbus, RS-485, USB, Bluetooth, Pulse / frequency |
| Hazardous area | General purpose |
Datasheet
Technical features
| Portable transit-time flow meter operated from an intuitive tablet app | |
| Measures velocity, volume, mass, energy and total flow; 1 or 2 channels | |
| Quick clamp-on installation with installation guidance in the app | |
| Optional PT1000 temperature transmitters for energy measurement and a thickness gauge for wall thickness | |
| IP65 transmitter, 1.4 kg; soft carry bag or hard case |
Applications
| Temporary flow surveys and audits | |
| Verification of installed flow meters | |
| HVAC energy (BTU) surveys and troubleshooting |
Key specifications
| Pipe sizes | 15–600 mm (½–24 in) standard |
|---|---|
| Accuracy | ±1% of reading (≥ 50 mm); ±2% (15–50 mm) |
| Velocity range | 0.03–12.19 m/s |
| Repeatability | ±0.2% of reading |
| Battery | Li-ion, 18–20 h continuous (> 4 days power-saver); charge ≤ 3 h |
| Interface | Android tablet app (Bluetooth or wired), iOS via Bluetooth; Modbus RS485; 4–20 mA, pulse, frequency, alarm |
Specification
| Fluids | Acoustically conductive liquids, including small amounts of entrained solids or gas |
|---|---|
| Pipe sizes | 15 to 600 mm standard |
| Accuracy | ±1% of reading (≥ 50 mm pipe); ±2% (15 to < 50 mm); fully developed profile (10 D up, 5 D down) |
| Repeatability | ±0.2% of reading |
| Velocity range | 0.03–12.19 m/s |
| Measurement | Velocity, volume, mass, energy, total flow |
| Channels | 1 or 2 |
| Outputs | Analog 4–20 mA; digital pulse, frequency, alarm; Bluetooth; Modbus RS485; micro-USB |
| Transducer temperature | −40 to +150 °C standard |
| Battery | Li-ion, 18–20 h continuous, > 4 days power saver; charging ≤ 3 h; charger 100–240 V AC |
| Enclosure | IP65; 1.4 kg |
| Display | Android tablet (IP68 rugged tablet available) with free PT900 app |
| Options | Loop-powered PT1000 temperature transmitters (±0.12 °C, 0–149 °C); wall thickness gauge (1–200 mm) |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Panametrics, used with permission (source) — background removed by Argonmark. All photo credits
Description

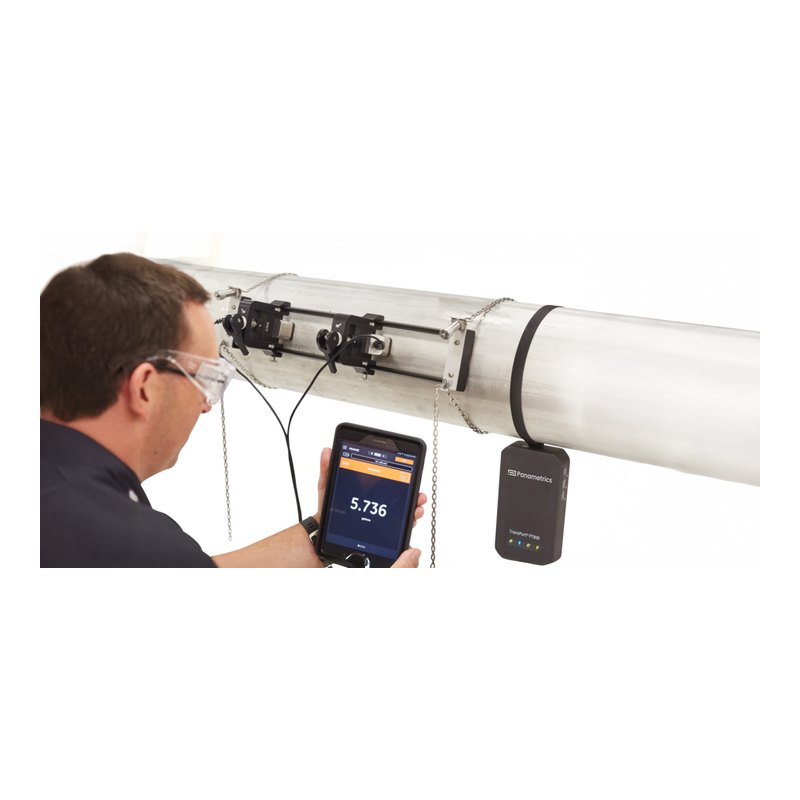

The Panametrics TransPort PT900 is a portable clamp-on ultrasonic flow meter that is set up and read through a tablet app, with on-screen installation guidance. It measures liquids in pipes from 15 to 600 mm at velocities from 0.03 to 12.2 m/s, with ±1% of reading accuracy on pipes of 50 mm and larger (±2% on smaller) and ±0.2% repeatability, on one or two channels.
It reports velocity, volume, mass, energy and totals, offers 4–20 mA, pulse and Modbus outputs, and its rechargeable battery runs 18–20 hours. Optional clamp-on temperature sensors and a wall-thickness gauge extend it to energy surveys.
Argonmark Ltd supplies Panametrics instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
