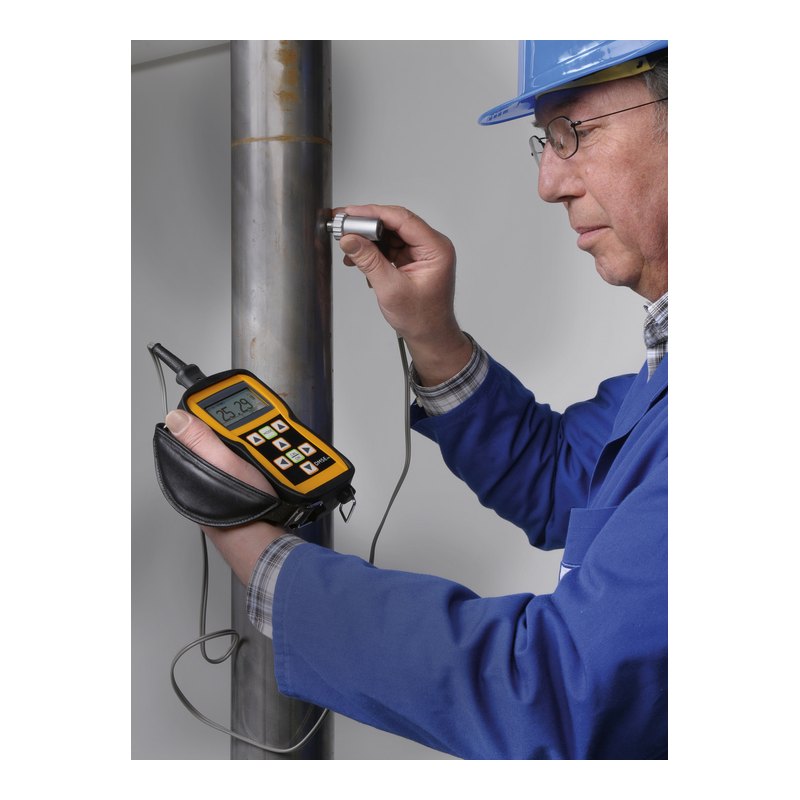

Waygate DM5E ultrasonic corrosion thickness gauge, 0.6 to 508 mm, measures through coatings (Dual-Multi), data logger option
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Thickness gauges
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1596 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Waygate Technologies |
| Model | DM5E Basic / DM5E / DM5E DL |
| Technical | |
| Type | Thickness gauges |
| Hazardous area | General purpose |
Datasheet
Technical features
| Portable corrosion thickness gauge for pipelines, pressure vessels and tanks in oil, gas, petrochemical and power plants | |
| Basic version to EN 15317 with min/max capture, B-scan, alarms and differential thickness | |
| DM5E adds Dual-Multi mode to measure metal thickness through paint and coatings without removal | |
| DM5E DL adds a 50,000-reading data logger with grid files and USB transfer | |
| Dual-element probes including fingertip and 5 MHz high-temperature probe (−10 to +204 °C) | |
| One-hand operation; upgradable in the field |
Applications
| Corrosion and erosion monitoring of pipelines, vessels and tanks | |
| Wall thickness checks through coatings without removing paint | |
| Inspection routes with logged grid data |
Key specifications
| Range | 0.6–508 mm (pulse-echo, probe/material dependent); 2–127 mm through coatings (Dual-Multi) |
|---|---|
| Resolution | 0.01 mm (selectable 0.1 mm) |
| Velocity range | 508–18,699 m/s |
| Display | Backlit graphic LCD 64 × 128; thickness and B-scan |
| Power | 2 × AA, ≈ 60 h |
| Protection | IP54; 223 g |
Specification
| Principle | Ultrasonic pulse-echo (dual-element probes) |
|---|---|
| Measuring range | 0.60–508 mm (IP to 1st back-wall); 2.00–127 mm in Dual-Multi through coatings |
| Resolution | 0.01 mm default, 0.1 mm selectable |
| Material velocity | 508–18,699 m/s; resolution 1 m/s |
| Calibration | One-point (on/off block) and two-point |
| Pulser / receiver | Spike pulser 120 V; 500 kHz–12 MHz bandwidth, automatic gain |
| Update rate | 4 or 8 Hz; 24 Hz scan mode |
| Display | 64 × 128 pixel backlit LCD, 5-digit 10.6 mm readings; B-scan view |
| Alarms | Min/max, 0.25–508 mm |
| Data logger (DL) | 50,000 readings, grid files, Mini-USB to PC (UltraMATE software) |
| Power | 2 × AA, ≈ 60 h |
| Temperature | Operating −10 to +50 °C; storage −20 to +60 °C |
| Size / weight | 138 × 32 × 75 mm; 223 g |
| Protection | IP54; shock per MIL-STD-810C |
| Languages | English, German, French, Spanish, Italian, Russian, Japanese, Chinese |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Waygate Technologies, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Waygate DM5E is a rugged portable ultrasonic thickness gauge for corrosion monitoring on pipelines, pressure vessels and storage tanks. It measures from 0.6 mm to 508 mm (depending on probe and material) with 0.01 mm resolution, and its Dual-Multi mode measures metal thickness through coatings from 2 to 127 mm without removing the paint.
Three versions build on each other: the Basic (EN 15317, min/max, B-scan, alarms), the DM5E with Dual-Multi, and the DM5E DL with a 50,000-reading data logger. It weighs 223 g, runs about 60 hours on two AA cells and is IP54.
Argonmark Ltd supplies Waygate Technologies instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
