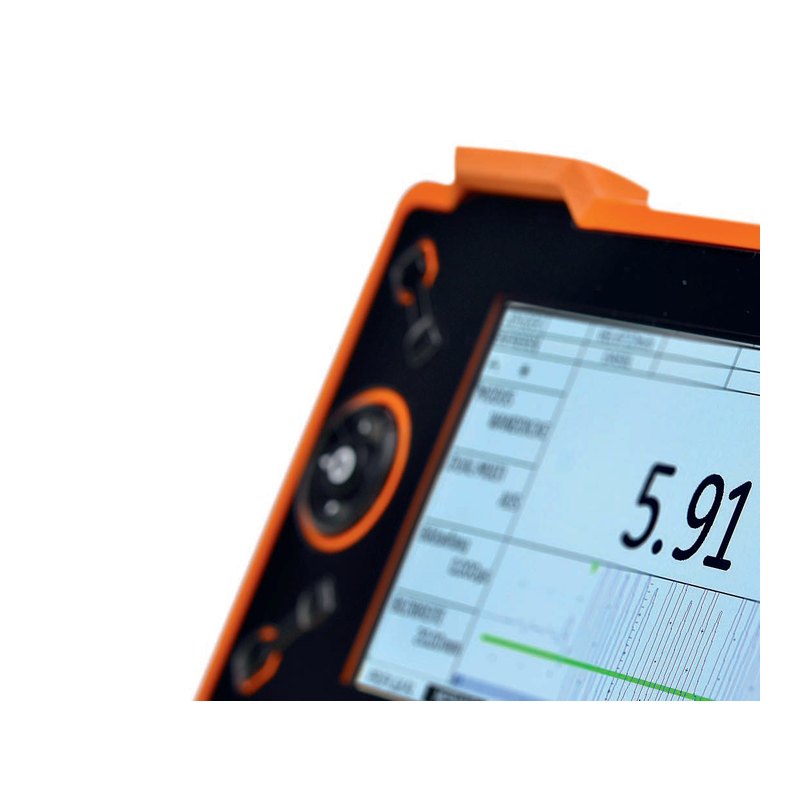

Waygate Krautkrämer DMS Go+ ultrasonic thickness gauge, A-scan and B-scan, to 540 °C, upgradable to flaw detector
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Thickness gauges
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1597 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Waygate Technologies |
| Model | Krautkrämer DMS Go+ |
| Technical | |
| Type | Thickness gauges |
| Hazardous area | General purpose |
Datasheet
Technical features
| Handheld thickness gauge with live A-scan for reliable readings on corroded and coated parts | |
| Temperature-compensated measurement on hot surfaces up to 540 °C | |
| Zero-crossing technique and automatic gain for stability and repeatability | |
| Data recorder | 100,000 readings per file on SD card, with A-scan, B-scan and micro-grid attachments |
|---|---|
| Software upgrade turns it into a full flaw detector | |
| Arrow-keypad control for left- or right-handed use | |
Applications
| Corrosion mapping on pipes, tanks and vessels | |
| Hot-surface thickness measurement to 540 °C | |
| Thickness inspection of castings, plate and composites |
Key specifications
| Range | 0.4 mm up to ≈ 14 m (0.01–551 in), probe and material dependent |
|---|---|
| Resolution | 0.01 or 0.1 mm |
| Modes | Zero crossing, IP-to-1st echo, multi-echo, TopCoat, Auto-V; A-scan, B-scan, min/max, differential |
| Display | 5 in, 800 × 480, > 200 cd/m² |
| Battery | Li-ion, > 8 h |
| Protection | IP67; 850 g |
Specification
| Measurement range | 0.4 mm up to ≈ 14,000 mm (0.01–551 in) depending on probe and material |
|---|---|
| Units | mm, inch, µs |
| Resolution | 0.01 or 0.1 mm selectable |
| Techniques | Zero crossing, IP to 1st echo, multi-echo, TopCoat, Auto-V |
| Calibration | One- or two-point, auto or manual, on/off block; automatic V-path correction |
| Pulser | 120–250 V spike, matched to probe; PRF 4, 8 or 16 Hz |
| Receiver | 110 dB dynamic range, automatic gain |
| Display modes | Thickness + A-scan, temperature-corrected thickness, B-scan, min/max, differential |
| Display | 5 in, 800 × 480 pixels |
| Data | SD card to 16 GB; 100,000 readings per file; micro-USB |
| Battery | Li-ion rechargeable, > 8 h; charger 100–240 V AC |
| Operating temperature | 0–55 °C |
| Protection | IP67 |
| Size / weight | 175 × 111 × 50 mm; 850 g |
| Compliance | EN 15317, EN 12668, ASTM E1324 and E317, MIL-STD-2154, EN 61010, EN 61326-1 |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Waygate Technologies, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Waygate Krautkrämer DMS Go+ is a handheld ultrasonic thickness gauge with a 5 in A-scan display, combining zero-crossing measurement and automatic gain for stable, repeatable readings on corroded, coated and hot surfaces (temperature-compensated up to 540 °C). It offers several measurement techniques including multi-echo and TopCoat, and A-scan, B-scan, min/max and differential modes.
It records 100,000 readings per file to an SD card, runs more than 8 hours on its Li-ion battery, is IP67 and weighs 850 g. A software upgrade converts it into a full ultrasonic flaw detector.
Argonmark Ltd supplies Waygate Technologies instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
