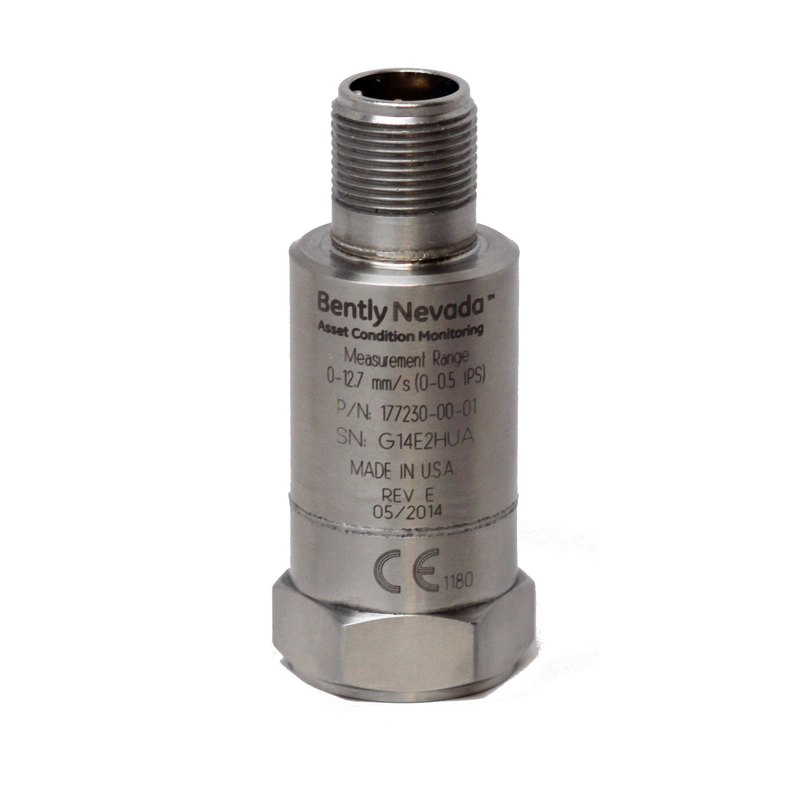

Bently Nevada 177230 loop-powered seismic vibration transmitter, 4–20 mA velocity + raw acceleration output, Ex ia
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Vibration monitoring
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1600 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Bently Nevada |
| Model | 177230 |
| Technical | |
| Type | Vibration monitoring |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Simple loop-powered transmitter that connects directly to PLC, DCS or SCADA inputs; no field configuration | |
| Second, unbuffered dynamic acceleration signal (100 mV/g) for diagnostics with portable analysers | |
| 316L stainless steel case with MIL-C-5015 connector | |
| Self-test; protected interface; isolated from case (600 V rms) | |
| Mounting by ¼-28, M6 or M8 studs |
Applications
| Vibration monitoring of pumps, fans, motors and compressors via PLC/DCS | |
| Plant asset condition monitoring on balance-of-plant machinery |
Key specifications
| Measurement | Casing velocity, broadband rms (4–20 mA) + dynamic acceleration signal |
|---|---|
| Ranges | 0–12.7, 0–25.4 or 0–50.8 mm/s rms |
| Accuracy | ±10% FS; linearity ±1% |
| Frequency response | 4–20 mA: 10 Hz–1 kHz; dynamic: 2.5 Hz–10 kHz |
| Supply | 12–30 V DC loop |
| Approvals | Ex ia IIC T4 Ga; Class I Div 1 Groups A–D; Ex nA / Div 2 |
Specification
| 4–20 mA loop (signal 1) | Velocity, broadband rms; 0–12.7 / 25.4 / 50.8 mm/s ±10% FS; 10 Hz–1 kHz ±10% |
|---|---|
| Dynamic signal (signal 2) | Acceleration, 10.2 mV/(m/s²) (100 mV/g) ±20%; 2.5 Hz–10 kHz ±10%; bias 2.5 V; full scale 147 m/s² (15 g) peak |
| Linearity | ±1% |
| Excitation | 12–30 V DC (current limited to 40 mA) |
| Mounted resonance | > 12 kHz |
| Transverse sensitivity | < 5% |
| Sensing element | Ceramic shear |
| Settling time | < 15 s |
| Operating temperature | −40 to +85 °C |
| Isolation | > 10⁸ Ω; 600 V rms breakdown |
| Shock | 9,810 m/s² (1,000 g) peak |
| Case / connector | 316L SS; 3-pin MIL-C-5015 |
| Size / weight | 25.4 mm diameter × 66 mm; 131 g |
| Approvals | ATEX/IECEx II 1 G Ex ia IIC T4 Ga, II 3 G Ex nA IIC T4 Gc; CSA Class I Div 1 and Div 2 Groups A–D |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Bently Nevada, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Bently Nevada 177230 is a loop-powered seismic transmitter that sends machine casing vibration (broadband velocity rms) to a PLC, DCS or SCADA system as a 4–20 mA signal, with full-scale ranges of 12.7, 25.4 or 50.8 mm/s and no field configuration needed. A second, unbuffered acceleration output (100 mV/g, 2.5 Hz to 10 kHz) is available for detailed analysis.
It has a ceramic shear sensing element in a 316L stainless steel case with a MIL-C-5015 connector, runs on 12–30 V DC and −40 to +85 °C, and is approved intrinsically safe (Ex ia IIC T4) and for Division 2.
Argonmark Ltd supplies Bently Nevada instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
