Bently Nevada 2300 series vibration monitor, 2 channels + speed, relays, 4–20 mA (2300/20) or System 1 (2300/25)
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Vibration monitoring
- Signal / Protocol: 4–20 mA, Relay / switch
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1601 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Bently Nevada |
| Model | 2300/20, 2300/25 |
| Technical | |
| Type | Vibration monitoring |
| Signal / Protocol | 4–20 mA, Relay / switch |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Cost-effective continuous vibration monitoring and protection for medium- and low-criticality or spared machinery | |
| Two seismic or proximity channels plus speed input for time-synchronous measurements | |
| Configurable bandpass filters 0.2 Hz–20 kHz; alarm relays with latching and inhibit | |
| Built-in display; configuration lock and alarm reset contacts | |
| 2300/25 connects to System 1 software via Trendmaster SPA interface |
Applications
| Pumps, fans, motors and compressors in oil and gas, power, water, pulp and paper, mining and cement | |
| Spared or medium-criticality machine trains needing local protection | |
| Feeding vibration data to DCS (4–20 mA) or System 1 |
Key specifications
| Inputs | 2 vibration channels (accelerometer, velocity or proximity) + 1 speed/Keyphasor |
|---|---|
| Measurements | Acceleration, velocity, displacement, thrust, process variable |
| Accuracy | ±1% of full scale |
| Outputs | Relay contacts; 4–20 mA (2300/20); System 1 / Trendmaster SPA (2300/25) |
| Power | 18–36 V DC, 7.5 W |
| Approvals | ATEX, IECEx, CSA/UL Class I Div 2 options |
Specification
| Power | 18–36 V DC, max. 7.5 W |
|---|---|
| Accelerometer input | ICP, 5–1,000 mV/g; full scale 2–80 g peak; 3.3 mA excitation |
| Velocity input | 5–1,000 mV/in/s; full scale 0–50 in/s (0–1,270 mm/s) peak |
| Radial vibration (proximity) | 5–1,000 mV/mil; 0–160 mils (0–4 mm) pk-pk; supply −22.8 to −25.2 V DC |
| Filters | Configurable bandpass 0.2 Hz–20 kHz |
| Speed input | Proximity 6–120,000 rpm; magnetic pickup 200–120,000 rpm |
| Accuracy | ±1% of full-scale range |
| Contact inputs | Configuration lock, latched alarm/relay reset, alarm/relay inhibit |
| Relays | Up to 6 A at 250 V AC / 24 V DC |
| Protection | Enclosure options to IP66 |
| Approvals | ATEX, IECEx, CSA (Class I Div 2) depending on model |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |

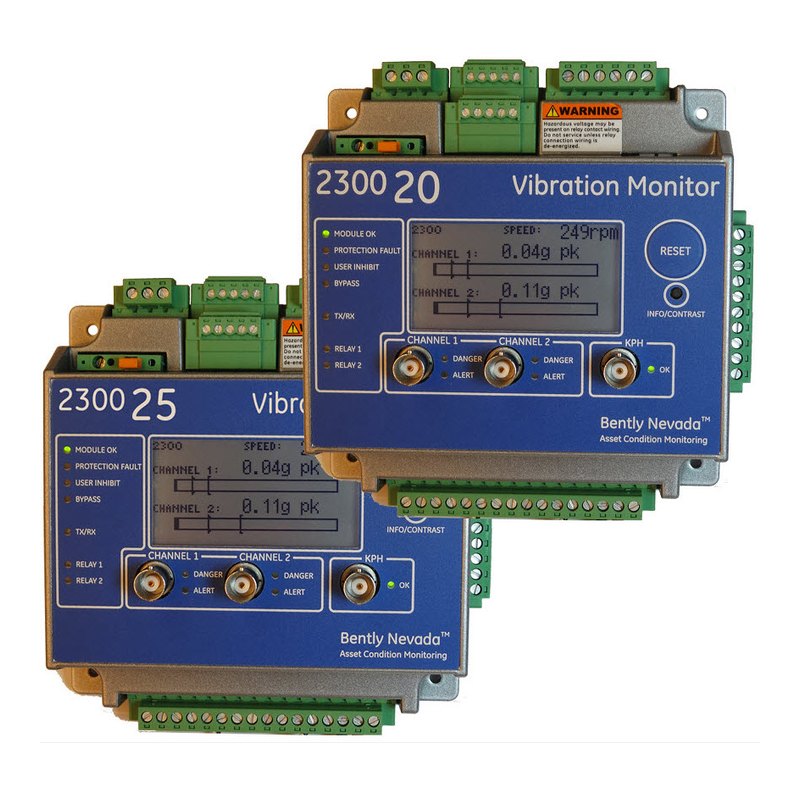

Photo: courtesy of Bently Nevada, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Bently Nevada 2300 series are compact vibration monitors that provide continuous monitoring and high-vibration alarming for medium- and low-criticality machinery. Each monitor has two channels for accelerometers, velocity sensors or proximity probes, plus a speed/Keyphasor input, with configurable filters from 0.2 Hz to 20 kHz and ±1% of full-scale accuracy.
Relay outputs provide protection; the 2300/20 adds a configurable 4–20 mA output for the DCS, and the 2300/25 links to System 1 software. They run on 18–36 V DC and are available with hazardous-area approvals.
Argonmark Ltd supplies Bently Nevada instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
