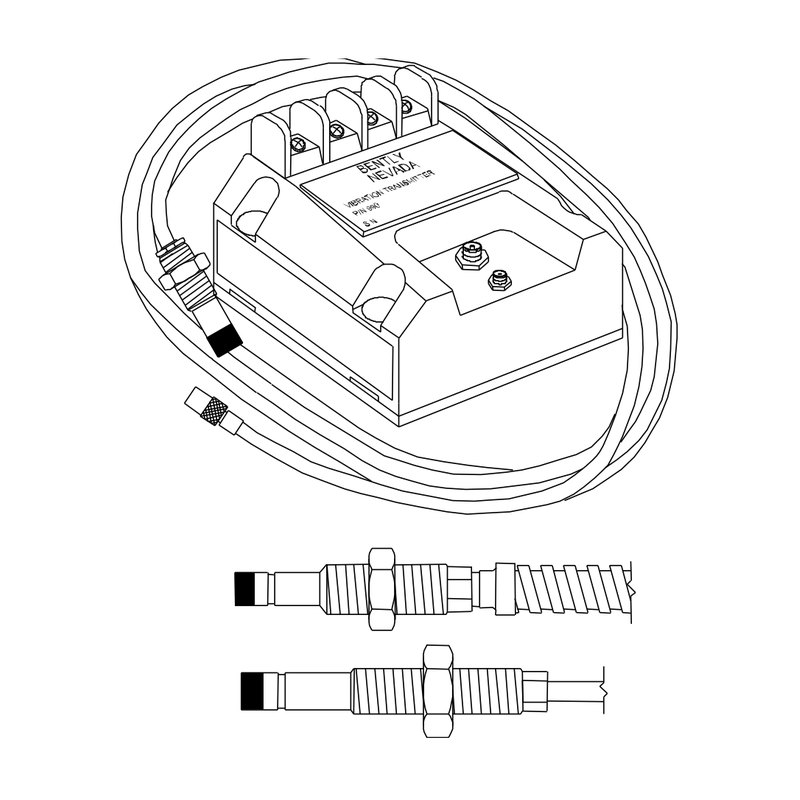

Bently Nevada 990 vibration transmitter, 2-wire 4–20 mA peak-to-peak vibration, with 3300 NSv proximity probe
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Vibration monitoring
- Signal / Protocol: 4–20 mA
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1602 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Bently Nevada |
| Model | 990 |
| Technical | |
| Type | Vibration monitoring |
| Signal / Protocol | 4–20 mA |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Simple 4–20 mA shaft vibration signal for OEM compressors, small pumps, motors and fans | |
| Integrated Proximitor sensor | no separate driver |
|---|---|
| Diagnostic PROX OUT (7.87 mV/µm) via terminals and coaxial connector | |
| Non-interacting zero/span; test input; power-up inhibit; Not OK / signal defeat | |
| Potted for 100% condensing humidity; DIN-rail or bulkhead mounting | |
Applications
| Radial shaft vibration on centrifugal air compressors | |
| Small pumps, motors and fans feeding control systems |
Key specifications
| Input | 3300 NSv proximity probe and extension cable (5 or 7 m system) |
|---|---|
| Output | 4–20 mA 2-wire, proportional to peak-to-peak vibration |
| Full-scale ranges | e.g. 0–100 µm (4 mils) or 0–125 µm (5 mils) pk-pk |
| Accuracy | ±1.5% of full scale |
| Supply | 12–35 V DC loop |
| Approvals | ATEX/IECEx Ex ia IIC T4 Ga; CSA Class I Div 2; ABS |
Specification
| Input | 1 non-contacting 3300 NSv probe with extension cable |
|---|---|
| Power | +12 to +35 V DC |
| Output | 4–20 mA over full-scale peak-to-peak vibration range |
| Loop accuracy | ±1.5% of full scale |
| Probe gap | 0.5–1.75 mm from target |
| Frequency response | 5 Hz to 6 kHz (+0/−3 dB) |
| Max. loop resistance | 1,000 Ω at 35 V DC |
| Not OK response | < 3.6 mA within 100 µs; power-up inhibit 2–3 s |
| PROX OUT | 7.87 mV/µm (200 mV/mil) ±6.5%; linear range 1.4 mm |
| Temperature | Transmitter −35 to +85 °C; probe −35 to +177 °C |
| Weight | Transmitter 0.43 kg; system 0.82 kg |
| Approvals | ATEX/IECEx Ex ia IIC T4 Ga; CSA Class I Div 2; ABS maritime |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Bently Nevada, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Bently Nevada 990 is a two-wire, loop-powered vibration transmitter that converts the signal from a 3300 NSv proximity probe into a 4–20 mA signal proportional to peak-to-peak shaft vibration, for machinery control systems on compressors, small pumps, motors and fans. It has an integrated Proximitor sensor, ±1.5% of full-scale accuracy and a 5 Hz to 6 kHz response.
A diagnostic PROX OUT signal, zero/span adjustment, a test input and Not OK / signal defeat logic simplify commissioning and avoid false alarms. It is potted for wet environments and approved for Zone 0 (Ex ia) and Class I Div 2.
Argonmark Ltd supplies Bently Nevada instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
