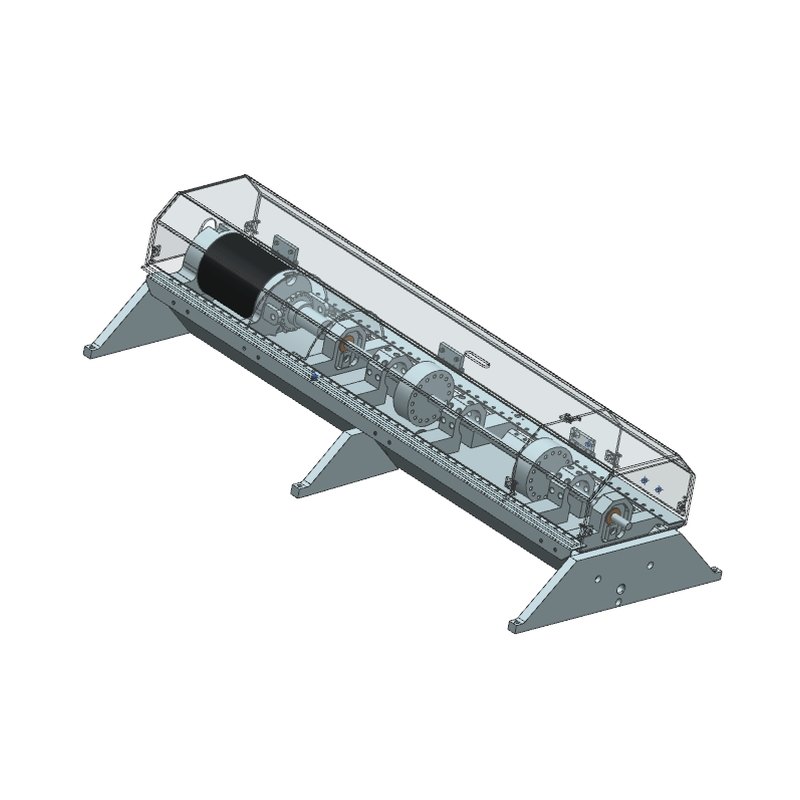

Bently Nevada RK4 rotor kit: machinery dynamics demonstrator for unbalance, rub and oil whirl/whip, 10,000 rpm
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Accessories
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1604 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Bently Nevada |
| Model | RK4 |
| Technical | |
| Type | Accessories |
| Hazardous area | General purpose |
Datasheet
Technical features
| Simulates real rotating machine behaviour for teaching and research | |
| Demonstrates single- and multi-plane unbalance, shaft rub, oil whirl and oil whip | |
| Teaches proximity probe placement, gapping, troubleshooting and signal interpretation | |
| V-frame design for controlled housing stiffness; tight mechanical tolerances | |
| Speed holds under changing load; digital tachometer display |
Applications
| Vibration analysis training and machinery diagnostics courses | |
| Research and development of rotor dynamics | |
| Proximity probe installation training |
Key specifications
| Max. speed | 10,000 rpm typical; ramp ±15,000 rpm/min |
|---|---|
| Drive | DC motor, CW or CCW, slow-roll capability; ±5 V remote speed control |
| Probes | Buffered Proximitor outputs 200 mV/mil (7.87 mV/µm) |
| Shaft | 10 mm |
| Power | 95–125 or 190–250 V AC, 50/60 Hz |
| Weight | Base 14.5 kg |
Specification
| Max. speed | 10,000 rpm typical |
|---|---|
| Max. ramp rate | ±15,000 rpm/min typical |
| Proximitor outputs | Buffered, 200 mV/mil |
| Shaft diameter | 10 mm |
| Power | 95–125 or 190–250 V AC single phase, 50/60 Hz, 3 A max.; fuse 250 V 3 A slow-blow |
| Oil pump (option) | 95–125 V AC 1.5 A or 190–250 V AC 0.75 A |
| Dimensions | Base 165 × 340 × 789 mm; speed control 115 × 260 × 325 mm; Proximitor assembly 86 × 154 × 158 mm |
| Weight | Base 14.5 kg; Proximitor assembly 0.9 kg; speed control 2.7 kg |
| Environment | 25 ± 10 °C, 95% RH non-condensing, indoor use |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Bently Nevada, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Bently Nevada RK4 is a rotor kit that closely simulates the behaviour of real rotating machinery for training and research. It can demonstrate single- and multi-plane unbalance, shaft rub, and oil whirl and oil whip instabilities, and is used to teach proximity probe placement, gapping and the reading of probe signals.
A V-frame base gives controlled housing stiffness, and a DC motor drive runs in either direction up to about 10,000 rpm with slow roll and remote speed control. Buffered Proximitor outputs provide 200 mV/mil signals, and the kit runs from 115 or 230 V AC.
Argonmark Ltd supplies Bently Nevada instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
