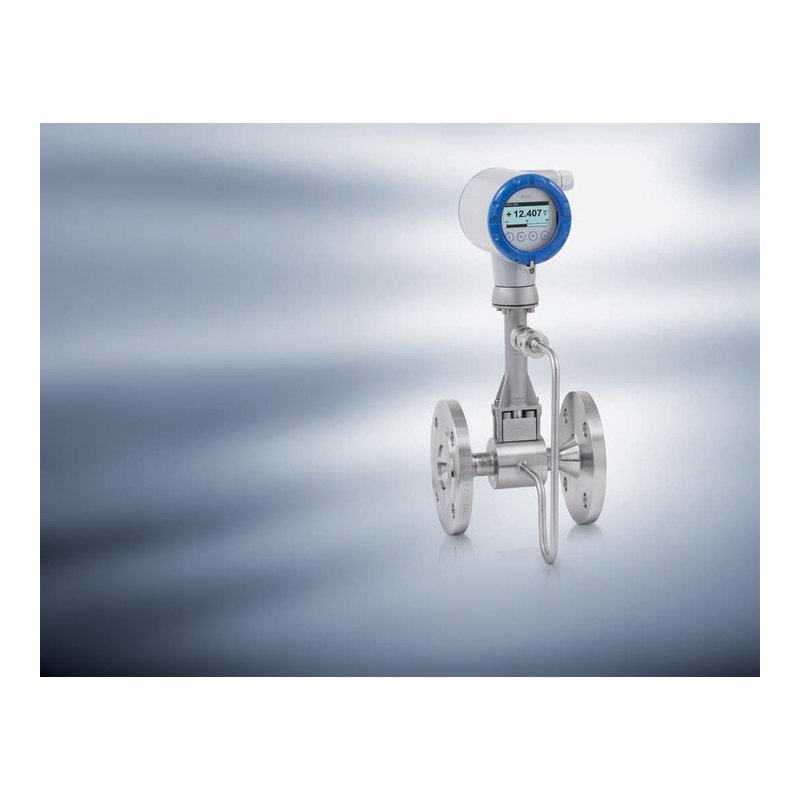

KROHNE OPTISWIRL 4200 vortex flow meter, DN15 to DN300, integrated temperature and optional pressure compensation, SIL 2
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Flow
- Signal / Protocol: 4–20 mA, HART, Pulse / frequency
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1605 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | KROHNE |
| Model | OPTISWIRL 4200 |
| Technical | |
| Type | Flow |
| Signal / Protocol | 4–20 mA, HART, Pulse / frequency |
| Hazardous area | General purpose |
Datasheet
Technical features
| Integrated temperature measurement and optional pressure sensor with shut-off valve for compensated mass and energy flow of steam and gases | |
| Reduced-bore versions (1 or 2 sizes smaller) extend the low-flow range without pipe reducers | |
| Safety-related measurement to SIL 2 | |
| Wetted parts 316L (Hastelloy C-22/C-276 options); flange or sandwich designs | |
| All inputs and outputs galvanically isolated; HART 7 with burst mode |
Applications
| Saturated and superheated steam (mass and energy) | |
| Industrial gases and compressed air | |
| Liquids such as water, condensate and hydrocarbons |
Key specifications
| Measured variables | Volume, mass, normalised volume and energy flow; temperature (pressure option) |
|---|---|
| Nominal diameter | DN15–300 (flange, sandwich, single- or double-reduction) |
| Accuracy | Liquids ±0.75%, gas/steam ±1.0% of measured value (Re ≥ 20,000); repeatability ±0.1% |
| Medium | −40 to +240 °C; max. 100 bar |
| Output | 4–20 mA HART 7 (passive); pulse/frequency/status |
| Supply | 12–36 V DC (Ex 12–30 V DC) |
Specification
| Versions | Flange (F), sandwich (S), flange with single (F1R) or double (F2R) reduction; integrated temperature, optional pressure |
|---|---|
| Nominal diameter | DN15 to DN300 |
| Accuracy (Re ≥ 20,000) | Volume: liquids ±0.75%, gas/steam ±1.0%; mass ±1.5%; normalised volume ±1.5% (±2.0–2.5% for 10,000 < Re < 20,000) |
| Repeatability | ±0.1% of measured value |
| Velocity range (gas) | e.g. DN15: 3–45 m/s; DN25: 2–70 m/s |
| Medium temperature | −40 to +240 °C |
| Medium pressure | Max. 100 bar (higher on request) |
| Ambient temperature | −40 to +85 °C (Ex −40 to +65 °C) |
| Materials | 1.4404 / 316L; Hastelloy C-22 or C-276 options |
| Flanges | EN 1092-1 DN15–300 PN16–100; ASME 150–600 lb; JIS 10–20K |
| Output | 4–20 mA HART 7 passive; pulse, frequency, status or limit switch (pulse width 0.5–2,000 ms) |
| Power | 12–36 V DC (Ex: 12–30 V DC) |
| Safety | SIL 2 |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of KROHNE, used with permission (source) — background removed by Argonmark. All photo credits
Description
The KROHNE OPTISWIRL 4200 is a vortex flow meter for liquids, gases and steam in sizes DN15 to DN300. With integrated temperature measurement and an optional pressure sensor it computes compensated mass, normalised volume and energy flow, for example on saturated or superheated steam. Accuracy is ±0.75% (liquids) or ±1.0% (gas and steam) of measured value with ±0.1% repeatability.
It handles media from −40 to +240 °C at up to 100 bar, with 316L or Hastelloy wetted parts in flange, sandwich or reduced-bore designs. The two-wire transmitter provides 4–20 mA HART 7 and a pulse/status output and is certified for SIL 2.
Argonmark Ltd supplies KROHNE instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
