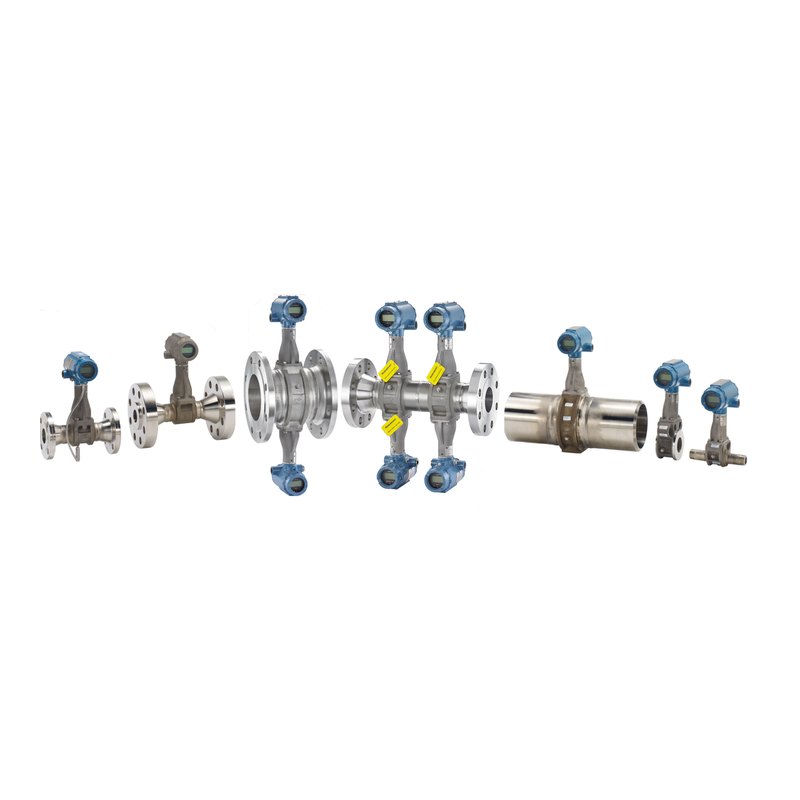

Rosemount 8800D vortex flow meter, ½ to 14 in, flanged / wafer / reducer / dual, gasket-free, SIL 3, to 450 °C
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Flow
- Signal / Protocol: 4–20 mA, HART, Modbus, Foundation Fieldbus, RS-485, Pulse / frequency
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1607 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Rosemount |
| Model | 8800D (8800DF, DW, DR, DD) |
| Technical | |
| Type | Flow |
| Signal / Protocol | 4–20 mA, HART, Modbus, Foundation Fieldbus, RS-485, Pulse / frequency |
| Hazardous area | General purpose |
Datasheet
Technical features
| All-welded, gasket-free meter body with no ports or crevices to clog | |
| Isolated, non-wetted sensor | replace without breaking the process seal; one sensor design for all sizes |
|---|---|
| Mass balancing plus Adaptive Digital Signal Processing for vibration immunity | |
| Reducer version extends low-flow range; dual-sensor version for redundancy and SIL 3 | |
| MultiVariable options | integral temperature compensation (saturated steam) and pressure input via HART for superheated steam mass flow |
| HART, FOUNDATION Fieldbus or Modbus | |
Applications
| Saturated and superheated steam mass flow | |
| Gas, liquid and cryogenic flows in oil, gas and chemical plants | |
| Safety-instrumented flow loops (dual sensor) |
Key specifications
| Line sizes | Flanged ½–12 in; wafer ½–8 in; reducer 1–14 in; dual ½–12 in |
|---|---|
| Accuracy | Liquids ±0.65% of rate (Re > 20,000); gas and steam ±1.0% (Re > 15,000) |
| Process temperature | −40 to +232 °C standard; −200 to +427 °C extended; to 450 °C severe service |
| Output | 4–20 mA HART (with pulse), FOUNDATION Fieldbus, Modbus RS-485 |
| Safety | IEC 61508 SIL 2/3 capable |
| Wetted materials | 316/316L (CF-3M); nickel alloy and duplex options |
Specification
| Meter styles | Flanged (½–12 in), wafer (½–8 in), Reducer (1–14 in, body one size smaller), Dual sensor (½–12 in) |
|---|---|
| Accuracy | Liquids ±0.65% of rate (Re > 20,000); gas and steam ±1.0% of rate (Re > 15,000) |
| Max. velocity | Liquids 7.62 m/s; gas/steam 67–76 m/s depending on size |
| Process temperature | Standard −40 to +232 °C; extended −200 to +427 °C; severe service −200 to +450 °C with nickel alloy |
| Wetted materials | 316 wrought and CF-3M cast stainless (316/316L); nickel alloy and duplex options |
| Outputs | 4–20 mA HART (optional scaled pulse), FOUNDATION Fieldbus, Modbus RS-485 |
| MultiVariable | MTA temperature compensation; MPA / MCA pressure (and temperature) compensation with HART pressure transmitter |
| Safety | SIL 2 (1oo1) / SIL 3 (1oo2) per IEC 61508 |
| Design | Gasket-free, all welded; sensor isolated from process |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Rosemount, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Rosemount 8800D is a vortex flow meter with an all-welded, gasket-free body and an isolated sensor that can be replaced without breaking the process seal. It is available as flanged, wafer, Reducer (extended low-flow range) and dual-sensor versions from ½ to 14 in, with ±0.65% of rate accuracy on liquids and ±1.0% on gas and steam.
Mass balancing and adaptive digital signal processing give immunity to pipe vibration, process temperatures reach −200 to +450 °C in extended and severe-service versions, and MultiVariable options compensate steam flow for temperature and pressure. Outputs include HART, FOUNDATION Fieldbus and Modbus, and the meter is SIL 2/3 capable.
Argonmark Ltd supplies Rosemount instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
