Endress+Hauser Memosens CPS91E digital pH sensor for heavily polluted media, open aperture, 0–14 pH, Ex ia
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Analytical
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1608 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Endress+Hauser |
| Model | Memosens CPS91E |
| Technical | |
| Type | Analytical |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Open-aperture reference for heavily contaminated media: solids, emulsions and precipitation reactions | |
| Low maintenance gel filling; long life with stabilized bridging electrolyte | |
| Not affected by pressure and temperature fluctuations | |
| Memosens | non-contact inductive digital transmission, sensor data stored in the sensor, predictive maintenance |
|---|---|
| Poison-resistant TH reference with improved ion trap optional | |
Applications
| Chemical processes with solids or emulsions | |
| Pulp and paper | |
| Flue gas cleaning (scrubbers) |
Key specifications
| Range | pH 0–14; 0–110 °C |
|---|---|
| Process pressure | 0.8–14 bar abs. |
| Reference | Ag/AgCl, stabilized gel; open aperture (TH version with ion trap) |
| Temperature sensor | Integrated NTC 30K |
| Connection | Memosens 2.0 inductive; Pg 13.5 |
| Approvals | ATEX/IECEx Ex ia IIC T4/T6 Ga; CSA C/US; NEPSI; Japan; INMETRO (Zones 0–2) |
Specification
| Measured variables | pH, temperature |
|---|---|
| Measuring range | pH 0 to 14; 0 to 110 °C |
| Reference system | HH: Ag/AgCl, stabilized gel; TH: with ion trap |
| Temperature sensor | NTC 30K |
| Process temperature | 0 to 110 °C |
| Process pressure | 0.8 to 14 bar absolute |
| Min. conductivity | > 500 µS/cm |
| Installation | At least 15° from horizontal, not upside down |
| Installed lengths | 120, 225, 360 or 425 mm |
| Process connection | Pg 13.5 |
| Protection | IP68 (10 m water column) |
| Storage temperature | 0 to 50 °C; do not use below −15 °C |
| EMC | EN 61326-1 |
| Ex approvals | ATEX/IECEx Ex ia IIC T4/T6 Ga; CSA IS Class I Div 1 Groups A–D, Class I Zone 0 AEx ia; NEPSI; Japan Ex; INMETRO |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |

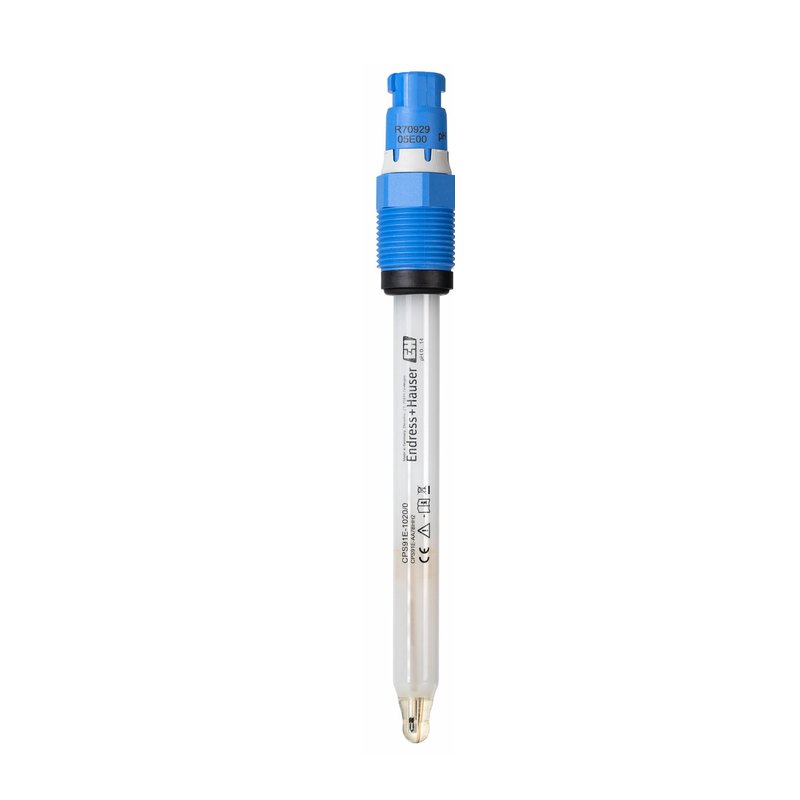

Photo: courtesy of Endress+Hauser, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Endress+Hauser Memosens CPS91E is a digital pH sensor for heavily polluted media, with an open-aperture reference that resists clogging by solids, emulsions and precipitates. It measures pH 0–14 at 0 to 110 °C and 0.8 to 14 bar, has an integrated NTC temperature sensor for compensation, and uses a low-maintenance stabilized gel electrolyte, with an ion-trap version for poisoning media.
Memosens technology transmits the signal inductively and digitally, stores calibration data in the sensor and supports predictive maintenance. It fits Pg 13.5 assemblies in four lengths, is IP68 and is approved for Zone 0 hazardous areas worldwide.
Argonmark Ltd supplies Endress+Hauser instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
