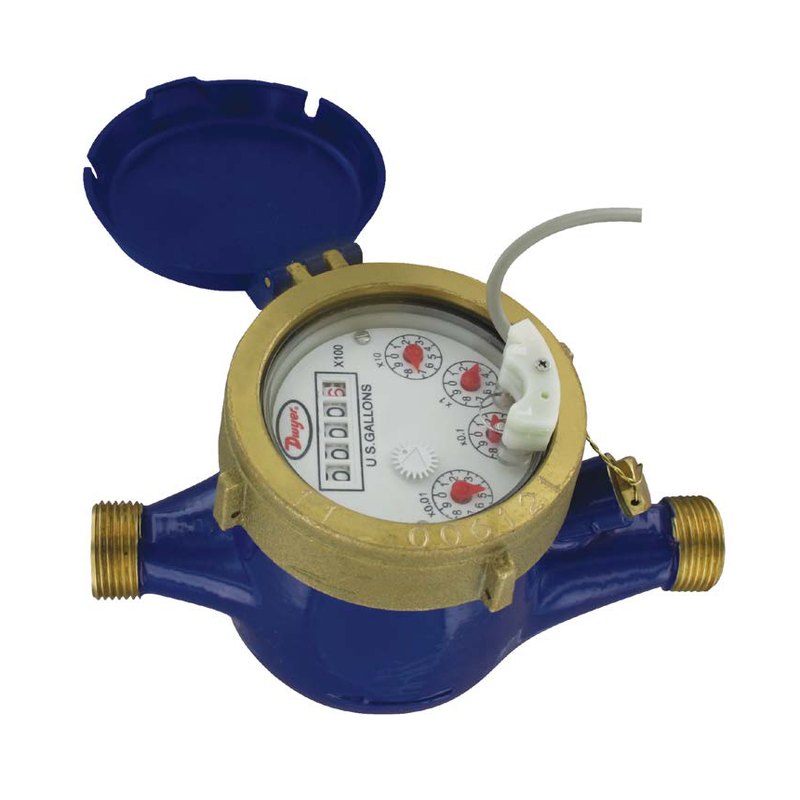

Dwyer WM2 multi-jet water meter, brass, ⅝–2 in NPT or 15–50 mm BSPT, up to 160 GPM, sealed dry dial, 16 bar
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Water meter
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1650 |
| Category | Flow Meters |
| Group | Instrumentation & Control |
| Brand | Dwyer |
| Model | WM2 |
| Technical | |
| Type | Water meter |
| Hazardous area | General purpose |
Datasheet
Technical features
| Multi-jet design | simple and accurate over wide flow ranges, even at low flow |
|---|---|
| Magnetically driven, hermetically sealed register that will not leak or fog | |
| Internal strainer | |
| Long service life and maintenance-free operation | |
| Mechanical totaliser | no power needed |
Applications
| Commercial and industrial water consumption metering | |
| Process and utility water sub-metering | |
| Cooling and filtration systems |
Key specifications
| Sizes | ⅝ to 2 in (NPT) or 15–50 mm (BSPT) |
|---|---|
| Flow range | 1–160 GPM or 0.12–15 m³/h nominal (by size) |
| Accuracy | ±2% nominal flow; ±5% transitional flow |
| Ratings | Max. 40 °C; 232 psi (16 bar) |
| Wetted materials | Brass body and couplings; polyethylene, ABS, ferrite, acetal measuring chamber |
| Register | Magnetically driven, hermetically sealed |
Performance
| Service | Water |
|---|---|
| Accuracy | Nominal flow ±2%; transitional flow ±5% |
| Temperature limit | 40 °C |
| Pressure limit | 232 psi (16 bar) |
| Mounting | Horizontal, register face up |
Construction
| Body / couplings | Brass, polyethylene / brass |
|---|---|
| Measuring chamber | Polyethylene, ABS, ferrite, acetal |
| Weight | 1.7 kg (⅝ in) to 8.5 kg (2 in) |
| Length | 165 mm (⅝ in) to 300 mm (1½ and 2 in) |
Sizes and flow ranges (US models)
| Size | Connection | Max. flow | Nominal flow range |
|---|---|---|---|
| ⅝ in | ½ in NPT | 20 GPM | 1–20 GPM |
| ⅝ × ¾ in | ¾ in NPT | 20 GPM | 1–20 GPM |
| ¾ in | ¾ in NPT | 30 GPM | 2–30 GPM |
| 1 in | 1 in NPT | 50 GPM | 3–50 GPM |
| 1½ in | 1½ in NPT | 100 GPM | 5–100 GPM |
| 2 in | 2 in NPT | 160 GPM | 8–160 GPM |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Description
The Dwyer WM2 is a multi-jet mechanical water meter for commercial and industrial use. Its magnetically driven register is hermetically sealed and completely separated from the water, so it does not leak or fog, and an internal strainer protects the measuring chamber.
It is available from ⅝ to 2 in with NPT couplings, or 15 to 50 mm with BSPT couplings, covering flows up to 160 GPM, with ±2% accuracy at nominal flow. The brass body is rated to 16 bar and 40 °C. For remote reading, the WMT2 version adds a pulse output.
Argonmark Ltd supplies Dwyer instruments across Bangladesh — to pulp and paper mills, water and effluent treatment plants, chemical, textile, food and power plants in Dhaka, Chattogram, Gazipur, Narayanganj and beyond. Send us the model, measuring range, process connection, wetted materials and output you need, and we will confirm the right configuration, lead time and price.
