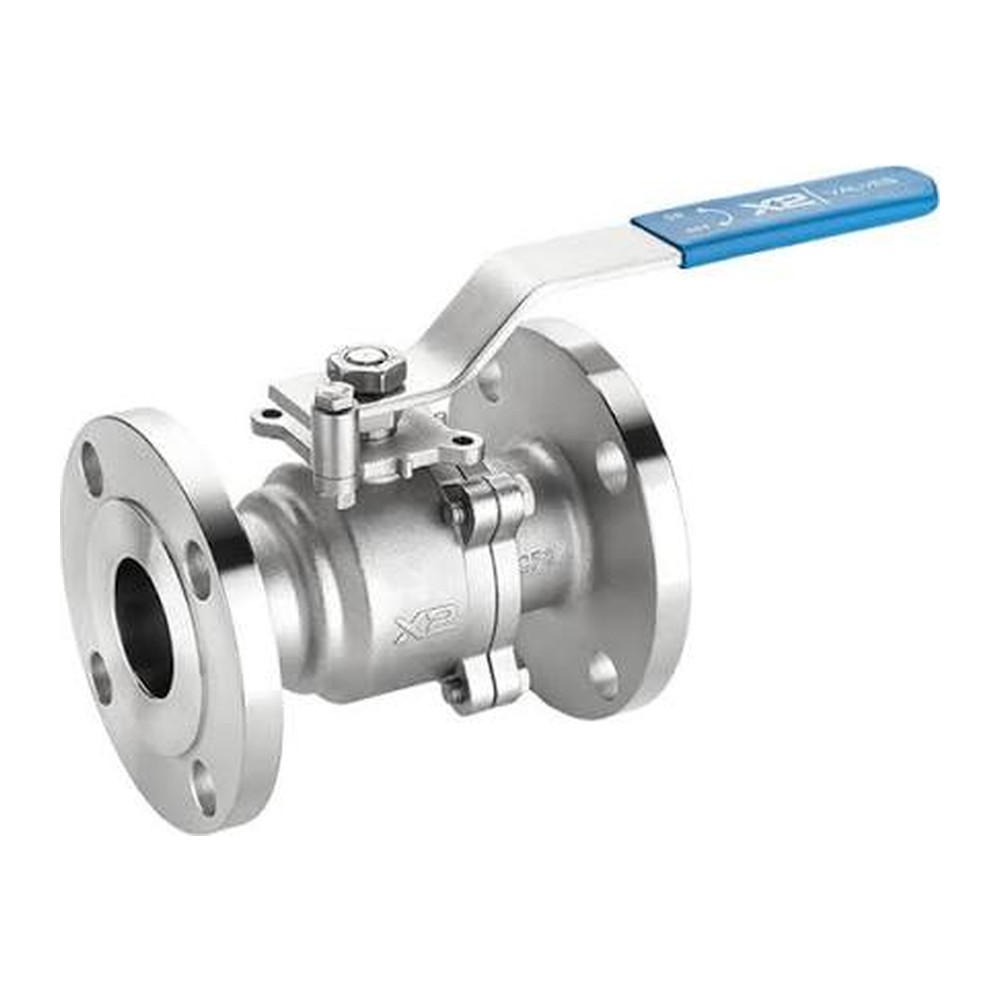

2-PC ball valve, flanged DIN, direct mounting pad
Available on order · sourced to your specification
Price on request
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Isolation Valve
- Size range: 1/2"~12" (DN15~DN300)
- Connection: Flanged (EN 1092-1 PN16/40)
- Bore: Full port (2-piece)
- Pressure rating: PN16 / PN40
- Working temperature: -20 to 150°C
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1206 |
| Category | Valves & Fittings |
| Group | Valves & Fittings |
| Brand | Argonmark |
| Technical | |
| Type | Isolation Valve |
| Size range | 1/2"~12" (DN15~DN300) |
| Connection | Flanged (EN 1092-1 PN16/40) |
| Bore | Full port (2-piece) |
| Pressure rating | PN16 / PN40 |
| Working temperature | -20 to 150°C |
| Material | 1.0619, 1.4308, 1.4408 |
| Application | Water, Gas, Oil, Acid, Steam |
Datasheet
Design standard
| Design | EN 1983, EN 12516-1 |
|---|---|
| Flange dimension | DIN 2543~2545, EN 1092-1 PN16/40 |
| Face to face | DIN 3202 part F4 (DN125~DN300) / DIN 3202 part F5 (DN125~DN300) |
| Inspection & testing | DIN 3230, EN 12266 |
Technical features
| Construction | 2-piece, full port |
|---|---|
| Working pressure | PN16 / PN40 |
| Working temperature | -20°C ~ 150°C |
| Investment casting | |
| Blow-out proof stem | |
| Anti-static device (option) | |
| Locking device handle | |
| ISO 5211 direct mounting pad | |
| Automation accessories (option) | |
Performance specification
| Nominal pressure | 150 Lb |
|---|---|
| Shell test | 1.5 MPa |
| Seat tightness test | 1.1 MPa |
| Gas tightness test | 0.6 MPa |
| Nominal pressure temperature range | -20 to 160°C |
Material list
| No. | Part | Carbon steel | Stainless steel 304 | Stainless steel 316 |
|---|---|---|---|---|
| 1 | Body | 1.0619 | 1.4308 | 1.4408 |
| 2 | Seat | PTFE | ||
| 3 | Ball | 1.4308 | 1.4308 | 1.4408 |
| 4 | O-ring | FPM | ||
| 5 | Gasket | PTFE | ||
| 6 | Bonnet | 1.0619 | 1.4308 | 1.4408 |
| 7 | Bolt | 304 | ||
| 8 | Nut | 304 | ||
| 9 | Stem | 304 | 304 | 316 |
| 10 | Stem washer | PTFE + 25% GF | ||
| 11 | O-ring | FPM | ||
| 12 | Packing | PTFE | ||
| 13 | Wear washer | PTFE + 25% GF | ||
| 14 | Gland | 304 | ||
| 15 | Disc spring | 304 | ||
| 16 | Gland flange | CF8 | ||
| 17 | Stopper | 304 | ||
| 18 | Hex socket bolt | 304 | ||
| 19 | Nut | 304 | ||
| 20 | Handle | WCB | / | CF8 |
| 21 | Bolt | 304 | ||
| 22 | Nut | 304 | ||
Columns are the available body materials; the Body row gives the material grade.
Notes
| For temperatures of 200–250°C, a PEEK seat is required. | |
| For temperatures of 300–425°C, a metal seat is required. |
Description
2-PC ball valve, flanged DIN, direct mounting pad supplied by Argonmark Ltd for industrial plants, contractors and workshops across Bangladesh. Category: Valves & Fittings. Available brands include Argonmark.
