Valves & Fittings

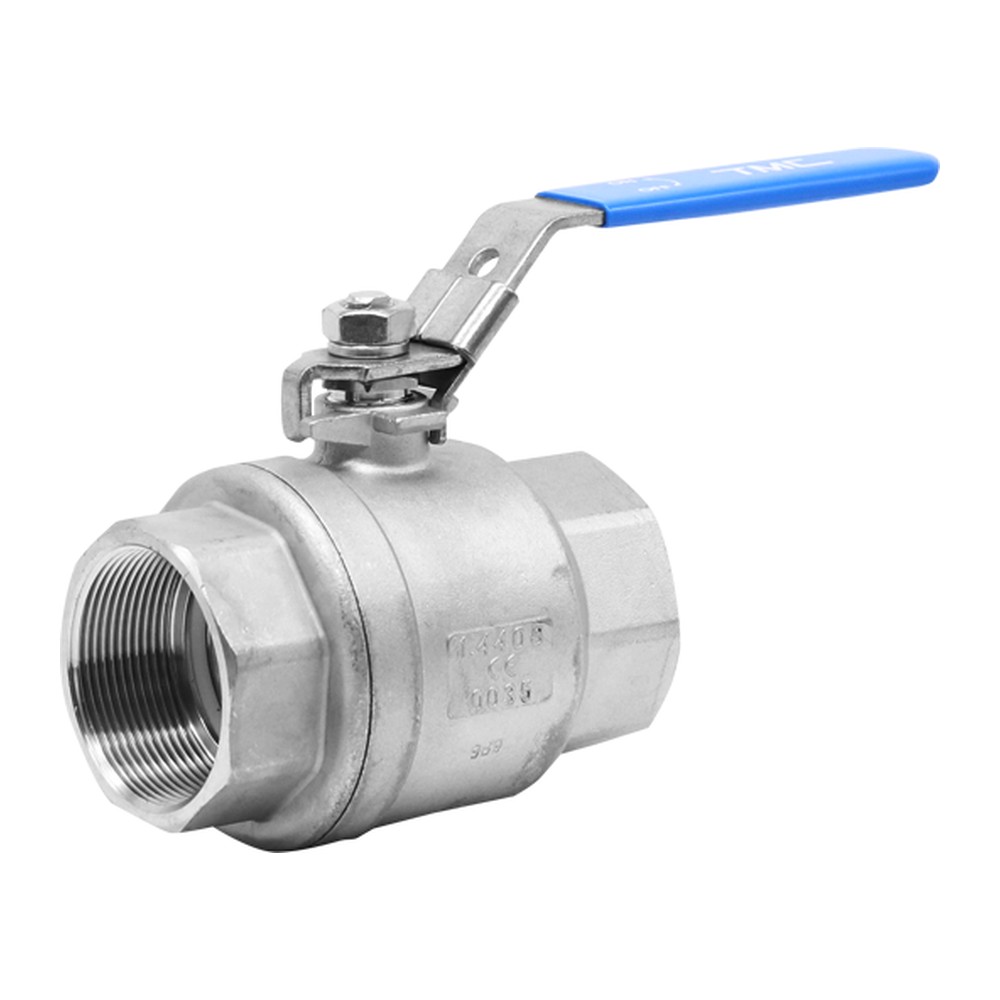

2-PC ball valve, threaded
Available on order · sourced to your specification
Price on request
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Isolation Valve
- Size range: 1/2"~4" (DN15~DN100)
- Connection: Threaded (NPT / BSPT)
- Bore: Full port (2-piece)
- Pressure rating: 1000 WOG (PN63)
- Working temperature: -20 to 200°C
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1208 |
| Category | Valves & Fittings |
| Group | Valves & Fittings |
| Brand | Argonmark |
| Technical | |
| Type | Isolation Valve |
| Size range | 1/2"~4" (DN15~DN100) |
| Connection | Threaded (NPT / BSPT) |
| Bore | Full port (2-piece) |
| Pressure rating | 1000 WOG (PN63) |
| Working temperature | -20 to 200°C |
| Material | WCB, CF8, CF8M |
| Application | Water, Gas, Oil, Air |
Datasheet
Thread / weld ball valve series
Design standard
| Design | ASME B1.20.2 (NPT/BSPT), DIN 259 / DIN 2999, BS 21, ISO 228-1, ISO 7-1 |
|---|---|
| Face to face | DIN 3202-M3 |
| Inspection & testing | EN 12266-1 |
Technical features
| Full port, 2-piece | |
| Working pressure | 1000 WOG (PN63) |
|---|---|
| Working temperature | -20 to 200°C |
| Investment casting | |
| Blow-out proof stem | |
| Locking device handle (option) | |
Performance specification
| Class | PN16 |
|---|---|
| Shell test pressure | 2.4 MPa |
| Seal test pressure | 1.76 MPa |
| Air test pressure | Not specified |
| Suitable temperature | -46 to 250°C |
Material list
| No. | Part | Carbon steel | Stainless steel 304 | Stainless steel 316 |
|---|---|---|---|---|
| 1 | Body | WCB | CF8 | CF8M |
| 2 | Seat | PTFE | ||
| 3 | Ball | CF8 | CF8 | CF8M |
| 4 | Gasket | PTFE | / | PPL |
| 5 | Bonnet | WCB | CF8 | CF8M |
| 6 | Stem | 304 | 304 | 316 |
| 7 | Stem washer | PTFE | / | PPL |
| 8 | Packing | PTFE | / | PPL |
| 9 | Gland | 304 | ||
| 11 | Handle | 304 | + | PVC |
| 12 | Gland | WCB | CF8 | CF3 |
| 13 | Spring washer | 304 | ||
| 18 | Nut | 304 | ||
Columns are the available body materials; the Body row gives the material grade.
Dimensions (mm)
| Size | DN | d | L | H | W |
|---|---|---|---|---|---|
| 1/4" | DN6 | 10 | 55 | 55 | 95 |
| 3/8" | DN10 | 12 | 55 | 55 | 95 |
| 1/2" | DN15 | 15 | 62 | 55 | 105 |
| 3/4" | DN20 | 20 | 71 | 59 | 128 |
| 1" | DN25 | 25 | 81.5 | 66 | 146 |
| 1-1/4" | DN32 | 32 | 96 | 71 | 146 |
| 1-1/2" | DN40 | 38 | 105 | 82 | 162 |
| 2" | DN50 | 50 | 120 | 90 | 192 |
| 2-1/2" | DN65 | 65 | 162 | 122 | 220 |
| 3" | DN80 | 80 | 170.5 | 135 | 250 |
| 4" | DN100 | 100 | 225 | 156 | 300 |
d = bore · L = end-to-end length · H = height · W = handle length.
Description
2-PC ball valve, threaded supplied by Argonmark Ltd for industrial plants, contractors and workshops across Bangladesh. Category: Valves & Fittings. Available brands include Argonmark.
