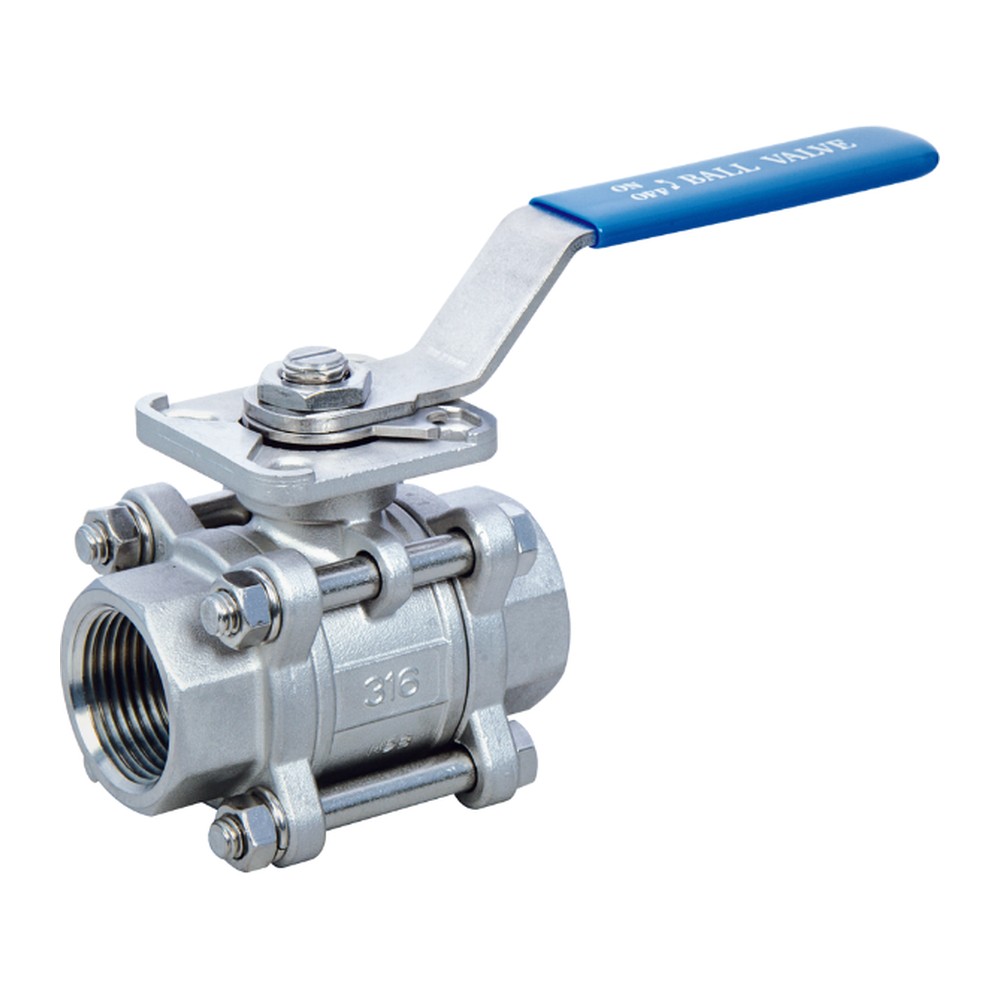

3-PC ball valve, threaded, direct mounting pad
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Isolation Valve
- Size range: 1/2"~4" (DN15~DN100)
- Connection: Threaded (NPT / BSPT)
- Bore: Full port (3-piece)
- Pressure rating: 1000 WOG (PN16 / PN25 / PN40 / PN63)
- Working temperature: -20 to 200°C
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1209 |
| Category | Valves & Fittings |
| Group | Valves & Fittings |
| Brand | Argonmark |
| Technical | |
| Type | Isolation Valve |
| Size range | 1/2"~4" (DN15~DN100) |
| Connection | Threaded (NPT / BSPT) |
| Bore | Full port (3-piece) |
| Pressure rating | 1000 WOG (PN16 / PN25 / PN40 / PN63) |
| Working temperature | -20 to 200°C |
| Material | WCB, CF8, CF8M |
| Application | Water, Gas, Oil, Air |
Datasheet
Design standard
| Design | ASME B1.20.2 (NPT/BSPT), DIN 259 / DIN 2999, BS 21, ISO 228-1, ISO 7-1 |
|---|---|
| Face to face | DIN 3239 part 2 |
| Inspection & testing | EN 12266-1 |
Technical features
| Full port, 3-piece | |
| Working pressure | 1000 WOG (PN16 / PN25 / PN40 / PN63) |
|---|---|
| Working temperature | -20 to 200°C |
| Investment casting | |
| Blow-out proof stem | |
| Direct mounting pad for actuator | |
| Anti-static device (option) | |
| Locking device handle (option) | |
| Automation accessories (option) | |
Performance specification
| Class | PN16 |
|---|---|
| Shell test pressure | 2.4 MPa |
| Seal test pressure | 1.76 MPa |
| Air test pressure | Not specified |
| Suitable temperature | -46 to 250°C |
Material list
| No. | Part | Carbon steel | Stainless steel 304 | Stainless steel 316 |
|---|---|---|---|---|
| 1 | Bonnet | WCB | CF8 | CF8M |
| 2 | Gasket | PTFE | ||
| 3 | Seat | PTFE | ||
| 4 | Ball | CF8 | CF8 | CF8M |
| 5 | Body | WCB | CF8 | CF8M |
| 6 | Bolt | 304 | ||
| 7 | Spring washer | 304 | ||
| 8 | Nut | 304 | ||
| 9 | Stem | 304 | 304 | 316 |
| 10 | Stem washer | PTFE + 25% GF | ||
| 11 | O-ring | FPM | ||
| 12 | Packing | PTFE | ||
| 13 | Wear washer | PTFE + 25% GF | ||
| 14 | Gland | 304 | ||
| 15 | Disc spring | 304 | ||
| 16 | Gland flange | CF8 | ||
| 17 | Hex socket bolt | 304 | ||
| 18 | Nut | 304 | ||
| 19 | Stopper | 304 | ||
| 20 | Handle | WCB / CF8 | ||
| 21 | Bolt | 304 | ||
| 22 | Nut | 304 | ||
Columns are the available body materials; the Body row gives the material grade.
Dimensions (mm)
| Size | DN | d | L | H | h | K×K | A | B | Ra | Rb | W | H1 | D | J | L1 | D1 | T |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/4" | DN6 | 10 | 68 | 43 | 9 | 9×9 | 36 | 42 | 3.0 | 3.0 | 140 | 75 | 14.2 | 9.5 | 63 | 14.5 | 2.25 |
| 3/8" | DN10 | 12 | 68 | 43 | 9 | 9×9 | 36 | 42 | 3.0 | 3.0 | 140 | 75 | 17.6 | 9.5 | 63 | 17.5 | 2.75 |
| 1/2" | DN15 | 15 | 68.5 | 43 | 9 | 9×9 | 36 | 42 | 3.0 | 3.0 | 140 | 75 | 21.8 | 9.5 | 70 | 21.5 | 3.0 |
| 3/4" | DN20 | 20 | 79 | 47 | 9 | 9×9 | 36 | 42 | 3.0 | 3.0 | 140 | 79 | 27.2 | 12.5 | 90 | 27 | 3.0 |
| 1" | DN25 | 25 | 89 | 57 | 11 | 11×11 | 42 | 50 | 3.0 | 3.5 | 170 | 92 | 33.9 | 12.5 | 90 | 34 | 3.5 |
| 1-1/4" | DN32 | 32 | 100.5 | 63 | 11 | 11×11 | 42 | 50 | 3.0 | 3.5 | 170 | 98 | 42.7 | 12.5 | 104 | 42.5 | 3.7 |
| 1-1/2" | DN40 | 38 | 111 | 72 | 14 | 14×14 | 50 | 70 | 3.5 | 4.5 | 200 | 110 | 48.8 | 12.5 | 116 | 48.5 | 4 |
| 2" | DN50 | 50 | 129 | 80 | 14 | 14×14 | 50 | 70 | 3.5 | 4.5 | 200 | 118 | 61.2 | 16 | 138 | 60.5 | 4 |
| 2-1/2" | DN65 | 65 | 169.5 | 98 | 17 | 17×17 | 70 | 102 | 4.5 | 5.5 | 300 | 142 | 73.9 | 16 | 182 | 74 | 4.5 |
| 3" | DN80 | 80 | 191 | 110 | 17 | 17×17 | 70 | 102 | 4.5 | 5.5 | 300 | 154 | 89.8 | 16 | 203 | 90 | 5 |
| 4" | DN100 | 100 | 242 | 132 | 17 | 17×17 | 70 | 102 | 4.5 | 5.5 | 300 | — | 115.2 | 19 | 252 | 114.5 | 6 |
d = bore · L = end-to-end length · H / H1 = heights · W = handle length · K×K = stem square · A / B = mounting pad bolt circles. 4" H1 not given on the datasheet. General arrangement drawing available on request.
Description
3-PC ball valve, threaded, direct mounting pad supplied by Argonmark Ltd for industrial plants, contractors and workshops across Bangladesh. Category: Valves & Fittings. Available brands include Argonmark.
