NOSHOK 400 Series hard-seat needle valves, 690 bar, steel or 316 SS, ¼ to 1½ NPT, blow-out-proof stem
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Valves
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1599 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | NOSHOK |
| Model | 400 Series |
| Technical | |
| Type | Valves |
| Hazardous area | General purpose |
Datasheet
Technical features
| Standard hard-seat needle valve for high-pressure instrument and process isolation | |
| Blow-out-proof stem with secondary stem seal when fully open | |
| One-piece bonnet with metal-to-metal seal below the bonnet threads; slotted spring pin prevents loosening | |
| Rolled stem threads; vinyl dust cap | |
| Options | ball or regulating stem tips; EPDM, NBR or FFKM O-rings; panel mounting |
|---|---|
Applications
| Isolation of pressure instruments and impulse lines | |
| High-pressure hydraulic and process lines | |
| Sampling, bleed and vent service |
Key specifications
| Pressure rating | 690 bar (10,000 psi) at 93 °C |
|---|---|
| Materials | Zinc-nickel plated steel or electropolished 316 SS; 316 SS stems |
| Connections | ¼–1½ in NPT; 7/16-20 UNF (SAE #4); M-F, F-F, straight and angle |
| Orifice / Cv | ¼–½ NPT: 4.75 mm, Cv 0.44; ¾–1½ NPT: 11.1 mm, Cv 2.70 |
| Leak test | 100% helium tested to 1 × 10⁻⁴ ml/s |
| Seals | FKM O-ring with PTFE back-up; PTFE or Grafoil packing optional |
Specification
| Materials | Zinc-nickel plated steel or electropolished 316 SS |
|---|---|
| Connections | ¼, ⅜, ½, ¾, 1, 1¼, 1½ in NPT; 7/16-20 UNF (SAE J1926); male-female, female-female; in-line and angle |
| Pressure rating | 10,000 psi (690 bar) at 93 °C |
| Orifice | 0.187 in (4.75 mm) for ¼–½ NPT; 0.438 in (11.1 mm) for ¾–1½ NPT |
| Flow coefficient | Cv 0.44 (¼–½ NPT); Cv 2.70 (¾–1½ NPT) |
| Stem | 316 SS, rolled threads, blow-out proof; FKM O-ring + PTFE back-up |
| Stem tips | Non-rotating 316 SS; ball 440C, carbide, ceramic, Monel; regulating hard tip |
| Testing | 100% helium leak tested to 1 × 10⁻⁴ ml/s |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |

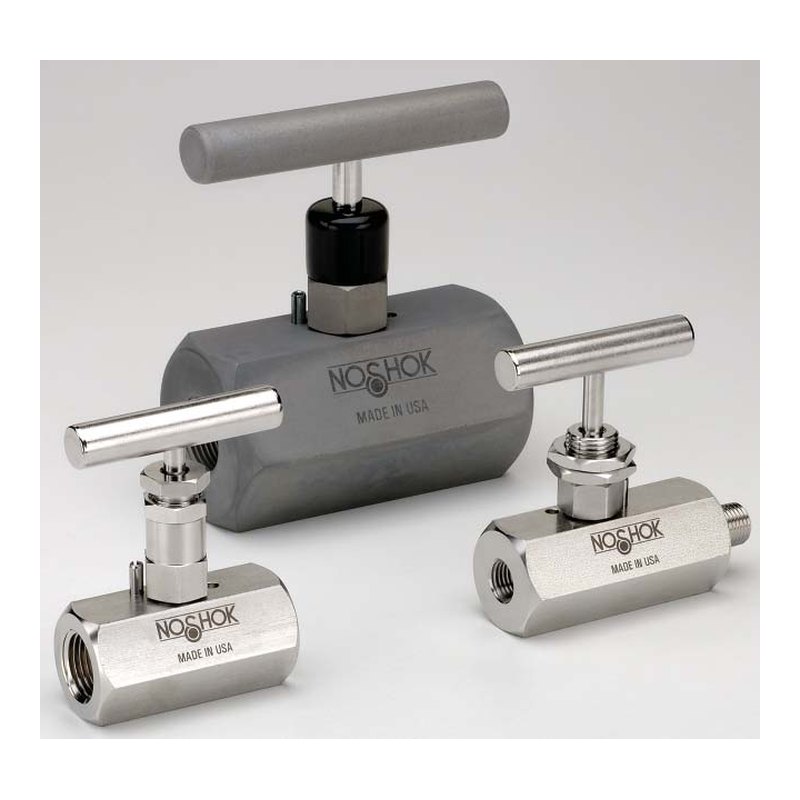

Photo: courtesy of NOSHOK, used with permission (source) — background removed by Argonmark. All photo credits
Description
The NOSHOK 400 Series are standard hard-seat needle valves rated to 10,000 psi (690 bar), in zinc-nickel plated steel or electropolished 316 stainless steel, with port sizes from ¼ to 1½ in NPT or SAE UNF. A blow-out-proof 316 SS stem provides a secondary seal when fully open, and a one-piece bonnet with metal-to-metal seal and locking pin keeps the valve tight.
Smaller sizes have a 4.75 mm orifice (Cv 0.44) and larger sizes 11.1 mm (Cv 2.70). Every valve is helium leak tested, and options include alternative packings, stem tips, O-ring materials and panel mounting.
Argonmark Ltd supplies NOSHOK instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
