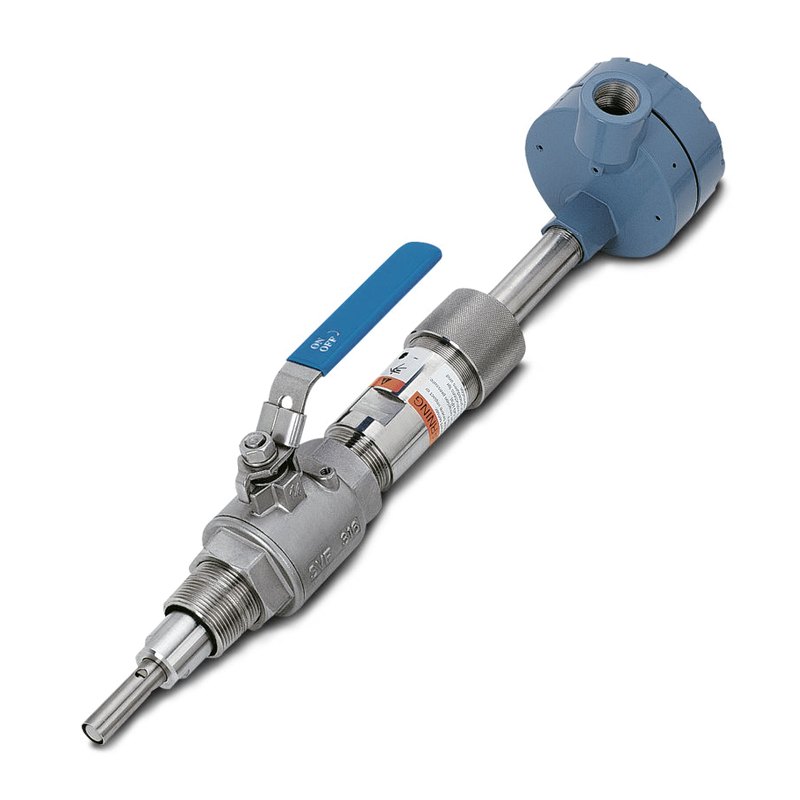

Rosemount 402 / 402VP retractable contacting conductivity sensor, removable through 1¼ in ball valve, 0–100 °C, 200 psig
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Conductivity sensor
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1632 |
| Category | Liquid Analysis (pH, ORP & Conductivity) |
| Group | Instrumentation & Control |
| Brand | Rosemount |
| Model | 402 / 402VP |
| Technical | |
| Type | Conductivity sensor |
| Hazardous area | General purpose |
Datasheet
Technical features
| Retracts through a 1¼ in ball valve | remove the sensor without shutting down or draining the line |
|---|---|
| Factory-measured cell constant, no initial calibration | |
| Concentric titanium electrodes with PEEK insulator | |
| Variopol VP6 quick-disconnect version (402VP) | |
Applications
| Conductivity in pipelines that cannot be shut down | |
| Boiler and cooling water lines | |
| Process water in pulp & paper and chemical plants |
Compatibility
| Temperature element | Pt1000 standard; Pt100 option |
|---|---|
| Transmitters | Rosemount 56, 1056, 1057, 1066, 5081-C |
Key specifications
| Cell constants | 0.01, 0.1 or 1.0 /cm (factory measured) |
|---|---|
| Process temperature | 0 to 100 °C |
| Process pressure | Max. 200 psig (13.8 barg) |
| Wetted materials | Titanium electrodes, glass-filled PEEK, 316 SS body, EPDM, neoprene |
| Process connection | Inserted through a 1¼ in NPT full-port ball valve |
| Temperature element | Pt1000 (Pt100 option) |
Performance
| Cell constants | 0.01, 0.1 and 1.0 /cm |
|---|---|
| Temperature range | 0 to 100 °C |
| Maximum pressure | 200 psig (1481 kPa abs) |
| Vacuum | Air leakage < 0.005 SCFM at 1.6 in Hg |
Construction
| Electrodes | Titanium |
|---|---|
| Insulator | Glass-filled PEEK |
| Body | 316 stainless steel |
| O-ring / washer | EPDM / neoprene |
| Surface finish | 0.4 µm Ra, all wetted surfaces |
| Process connection | Through a 1¼ in NPT full-port ball valve (sold separately) |
| Cable | 10 ft (3 m) standard; integral junction box option for longer runs; VP6 cable for 402VP |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Description
The Rosemount 402 is a retractable contacting conductivity sensor that slides into the pipe through a 1¼ in full-port ball valve. It can be withdrawn for inspection or cleaning without shutting down or draining the line, which makes it practical on continuously running process and utility lines.
It has concentric titanium electrodes, a glass-filled PEEK insulator and a 316 stainless steel tube, with a factory-measured cell constant of 0.01, 0.1 or 1.0 /cm. It works from 0 to 100 °C at up to 200 psig, and the 402VP version uses a Variopol VP6 quick-disconnect cable.
Argonmark Ltd supplies Rosemount instruments across Bangladesh — to pulp and paper mills, water and effluent treatment plants, chemical, textile, food and power plants in Dhaka, Chattogram, Gazipur, Narayanganj and beyond. Send us the model, measuring range, process connection, wetted materials and output you need, and we will confirm the right configuration, lead time and price.
