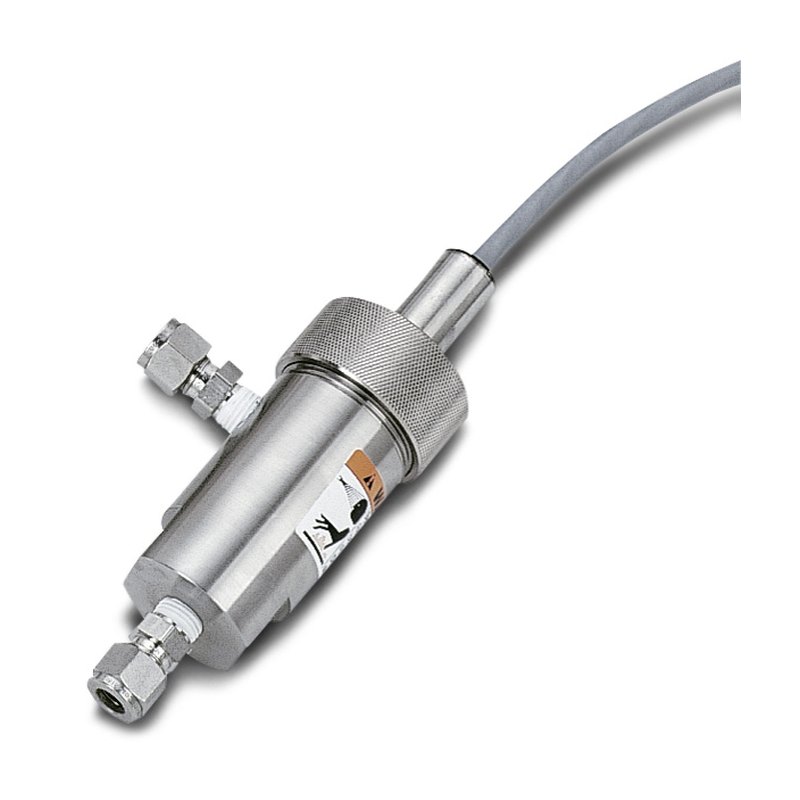

Rosemount 404 Endurance low-flow conductivity sensor with integral flow cell, cell constant 0.01/0.1, PVC or stainless steel
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Conductivity sensor
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1647 |
| Category | Liquid Analysis (pH, ORP & Conductivity) |
| Group | Instrumentation & Control |
| Brand | Rosemount |
| Model | 404 |
| Technical | |
| Type | Conductivity sensor |
| Hazardous area | General purpose |
Datasheet
Technical features
| Integrated flow cell with small hold-up volume for fast response to conductivity and temperature changes | |
| For sidestream sample lines with low flow | |
| Factory-measured cell constant | |
| Stainless steel version can be dismantled for cleaning | |
| Titanium electrodes with PEEK insulator |
Applications
| High-purity water and RO permeate sample lines | |
| Clean cooling water | |
| Power plant steam and water sampling panels |
Key specifications
| Cell constants | 0.01 or 0.1 /cm |
|---|---|
| Process temperature | 0 to 60 °C (PVC) or 0 to 100 °C (stainless steel) |
| Process pressure | Max. 100 psig (6.9 barg) |
| Wetted materials | Titanium electrodes, PEEK; PVC body or 303 SS body with 316 SS fittings |
| Process connection | ⅜ in barbed (PVC) or ⅜ in OD compression / ¼ in FNPT (SS) |
| Application range | Clean liquids below 2,000 µS/cm |
Performance
| Cell constants | 0.01 and 0.1 /cm |
|---|---|
| Recommended use | Clean, non-corrosive liquids below 2,000 µS/cm |
| Temperature, PVC (-16) | 0 to 60 °C |
| Temperature, stainless (-17) | 0 to 100 °C |
| Pressure, PVC | 100 psig at 25 °C; 20 psig at 60 °C |
| Pressure, stainless | 100 psig maximum |
Construction
| Electrodes | Titanium |
|---|---|
| Insulator | Glass-filled PEEK |
| Body | PVC (-16) or 303 stainless steel (-17) |
| O-ring | EPDM (stainless); polyethylene (PVC) |
| Fittings | 316 stainless steel (-17) |
| Process connection | ⅜ in barbed tubing (-16); compression for ⅜ in OD tubing, removable to ¼ in FNPT (-17) |
| Cable | 10 ft (3.1 m) standard; 50 ft optional |
| Weight | PVC 1.0 kg; stainless 2.0 kg (10 ft cable) |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Description
The Rosemount 404 is a contacting conductivity sensor built into its own small flow cell, designed for sidestream sample lines. The low hold-up volume gives a fast response when conductivity or temperature changes, which suits high-purity water and clean cooling water below 2,000 µS/cm.
It has titanium electrodes and a cell constant of 0.01 or 0.1 /cm. The PVC version works to 60 °C with ⅜ in barbed connections; the stainless steel version works to 100 °C and 100 psig with ⅜ in compression fittings and can be dismantled for cleaning.
Argonmark Ltd supplies Rosemount instruments across Bangladesh — to pulp and paper mills, water and effluent treatment plants, chemical, textile, food and power plants in Dhaka, Chattogram, Gazipur, Narayanganj and beyond. Send us the model, measuring range, process connection, wetted materials and output you need, and we will confirm the right configuration, lead time and price.
