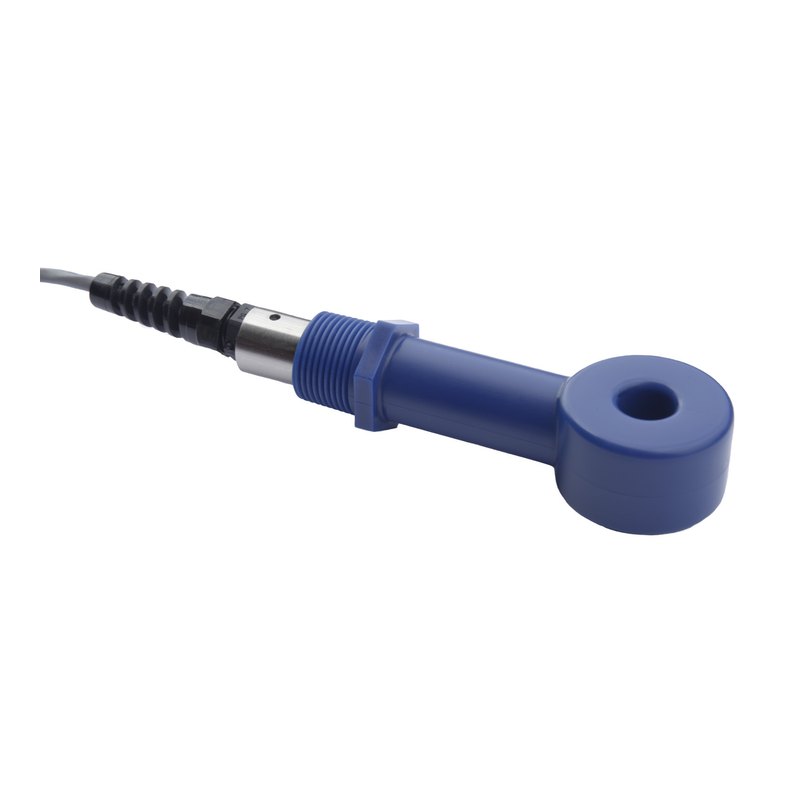

AquaMetrix AM-ES1 wide-range toroidal (electrodeless) conductivity sensor, 4–400,000 µS/cm, polypropylene, Pt1000
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Conductivity sensor
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1653 |
| Category | Liquid Analysis (pH, ORP & Conductivity) |
| Group | Instrumentation & Control |
| Brand | AquaMetrix |
| Model | AM-ES1 |
| Technical | |
| Type | Conductivity sensor |
| Hazardous area | General purpose |
Datasheet
Technical features
| Electrodeless toroidal measurement | no electrode corrosion or fouling |
|---|---|
| Wide measuring range from 4 to 400,000 µS/cm | |
| Flow-through (2 in CPVC union tee) or submersion mounting | |
| Automatic temperature compensation with built-in Pt1000 | |
| Low maintenance industrial design | |
Applications
| Plating and fume scrubbers | |
| Boilers, cooling towers, reverse osmosis | |
| Textile manufacturing, food & beverage, pharmaceutical |
Key specifications
| Measuring range | 4 to 400,000 µS/cm at 25 °C |
|---|---|
| Accuracy | Better than 1% after calibration |
| Resolution | 0.1 µS/cm |
| Wetted materials | Polypropylene |
| Process pressure | Max. 100 psig at 65 °C |
| Temperature compensation | Pt1000 RTD (to 25 °C) |
Performance
| Measuring range | 4 to 400,000 µS/cm at 25 °C |
|---|---|
| Resolution | 0.1 µS/cm |
| Accuracy | Better than 1% after calibration |
| Temperature compensation | Pt1000 RTD, referenced to 25 °C |
Ratings & construction
| Wetted materials | Polypropylene |
|---|---|
| Temperature limits | −20 to 120 °C (datasheet also states −5 to 80 °C at atmospheric pressure) |
| Maximum pressure | 100 psig at 65 °C |
| Max. flow rate | 3 m/s without turbulence |
| Cable | 15 ft (4.5 m) standard |
| Accessories | AM-JB1 NEMA 4X junction box, AM-TEE-ES 2 in CPVC union tee, AM-CBL60 extension cable |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Description
The AquaMetrix AM-ES1 is a toroidal (electrodeless) conductivity sensor in a polypropylene body. Two encapsulated toroids induce and measure a current in the liquid, so there are no electrodes to corrode or foul, which makes it suitable for processes where contacting sensors fail.
It covers a wide range of 4 to 400,000 µS/cm with 0.1 µS/cm resolution and better than 1% accuracy after calibration. A built-in Pt1000 provides automatic temperature compensation, it is rated to 100 psig at 65 °C, and it can be mounted in a 2 in CPVC union tee or submerged in a tank.
Argonmark Ltd supplies AquaMetrix instruments across Bangladesh — to pulp and paper mills, water and effluent treatment plants, chemical, textile, food and power plants in Dhaka, Chattogram, Gazipur, Narayanganj and beyond. Send us the model, measuring range, process connection, wetted materials and output you need, and we will confirm the right configuration, lead time and price.
