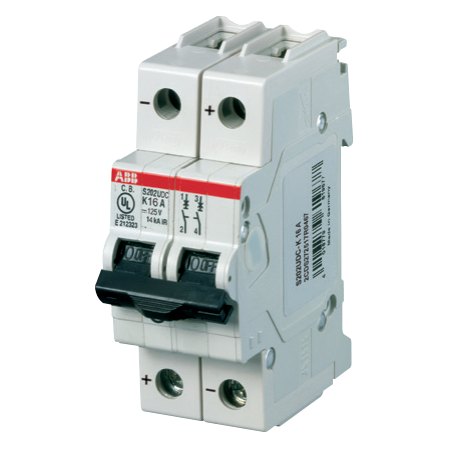

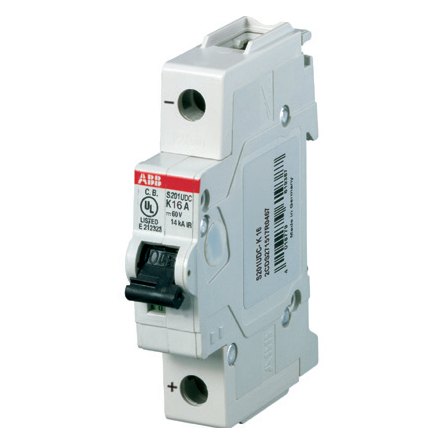

ABB S200UDC-Z DC miniature circuit breaker, Z curve, 1–63 A, 1–2 pole, UL 489
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Miniature circuit breaker (UL 489)
- Series: S200UDC-Z
- Trip curve: Z
- Poles: 1, 2
- Rated current (A): 1–63
- Breaking capacity: 14 kA
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1327 |
| Category | Miniature Circuit Breakers |
| Group | Electrical |
| Brand | ABB |
| Model | S200UDC-Z |
| Technical | |
| Type | Miniature circuit breaker (UL 489) |
| Series | S200UDC-Z |
| Trip curve | Z |
| Poles | 1, 2 |
| Rated current (A) | 1–63 |
| Breaking capacity | 14 kA |
| Rated voltage | 60/125 VDC (1/2-pole) |
| Standard | UL 489, CSA C22.2 No. 5 |
Datasheet
Download manufacturer datasheet (PDF)
Ordering information — catalogue numbers
| Rated current | 1 pole | 2 poles |
|---|---|---|
| 1 A | S201UDC-Z1 | S202UDC-Z1 |
| 1.6 A | S201UDC-Z1.6 | S202UDC-Z1.6 |
| 2 A | S201UDC-Z2 | S202UDC-Z2 |
| 3 A | S201UDC-Z3 | S202UDC-Z3 |
| 4 A | S201UDC-Z4 | S202UDC-Z4 |
| 5 A | S201UDC-Z5 | S202UDC-Z5 |
| 6 A | S201UDC-Z6 | S202UDC-Z6 |
| 8 A | S201UDC-Z8 | S202UDC-Z8 |
| 10 A | S201UDC-Z10 | S202UDC-Z10 |
| 13 A | S201UDC-Z13 | S202UDC-Z13 |
| 15 A | S201UDC-Z15 | S202UDC-Z15 |
| 16 A | S201UDC-Z16 | S202UDC-Z16 |
| 20 A | S201UDC-Z20 | S202UDC-Z20 |
| 25 A | S201UDC-Z25 | S202UDC-Z25 |
| 30 A | S201UDC-Z30 | S202UDC-Z30 |
| 32 A | S201UDC-Z32 | S202UDC-Z32 |
| 40 A | S201UDC-Z40 | S202UDC-Z40 |
| 50 A | S201UDC-Z50 | S202UDC-Z50 |
| 60 A | S201UDC-Z60 | S202UDC-Z60 |
| 63 A | S201UDC-Z63 | S202UDC-Z63 |
Technical specifications
| Specifications | UL 489, VDE 0660 |
|---|---|
| UL file number | E212323 |
| Number of poles | 1, 2 |
| Trip curves | Z, K |
| Rated current | Up to 63 A |
| Rated voltage | 60/125 VDC (1/2-pole) |
| Short circuit interrupt rating | 14 kA |
| Calibration temperature | 25 °C |
| Mounting position | Any |
| Protection degree | IP 20 with accessory |
| Mounting | 35 mm DIN rail |
| Terminal screw tightening torque | 25 in. lbs (2.8 Nm) |
| Cable size | AWG 4-16 |
| Ambient temperature | -25 °C...+55 °C/-13 °F...+131 °F |
| Shock resistance (IEC60068- 2-27) | 25 g - 2 shocks - 13 ms |
| Service life, mechanical | 20,000 operations |
Features
- UL current limiting
- Fast breaking time (2.3–2.5 ms)
- Bus connection system
- Wide range of accessories
- Available with variable-depth handle mechanism
- CE certified and marked
- 35 mm DIN rail mounting
- Finger-safe, multi-function terminals
- UL 489 Listed branch circuit protective device, UL file E212323
- DC only — observe the polarity marked on the device

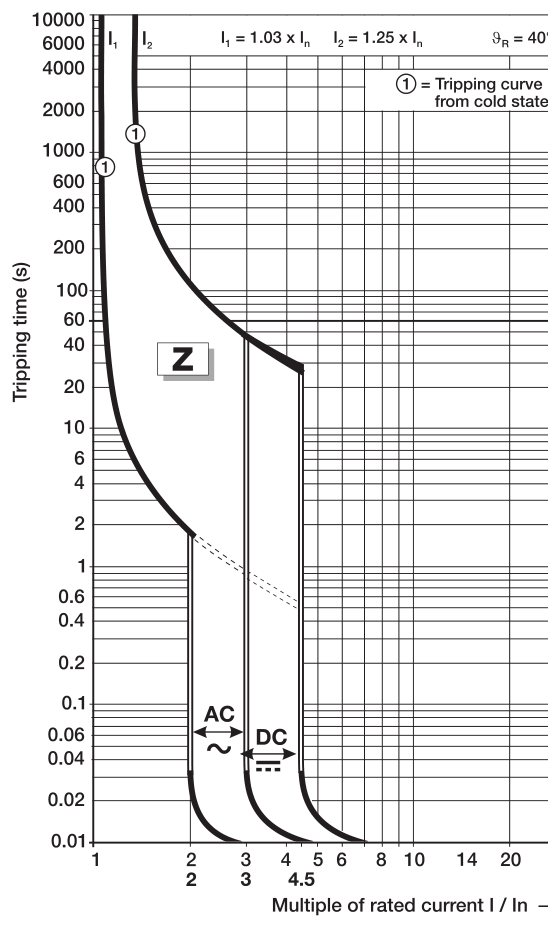

Trip curve — Z
Approximate dimensions (mm)
Source: ABB US Catalog, Miniature Circuit Breakers, November 2016 (1SXU400208C0201). Download the series datasheet (PDF)
Description
The ABB S200UDC is a UL 489 listed miniature circuit breaker for DC circuits up to 60 V (1-pole) and 125 V (2-pole) with 14 kA interrupting rating. It is polarised, so the marked polarity must be observed when wiring.
Z curve: very low magnetic threshold (roughly 2–3 × In), for sensitive electronics, semiconductors and measuring/voltage-transformer circuits.
Choose the number of poles and the rated current below; the matching ABB catalogue number is shown and included in your quotation request.
