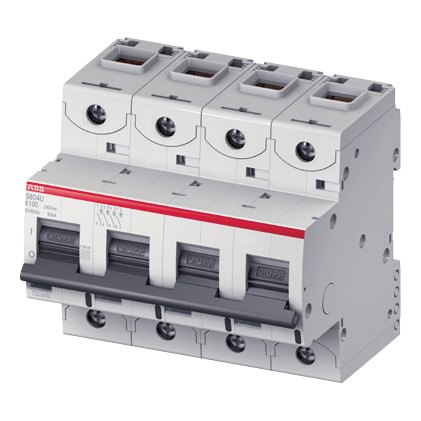

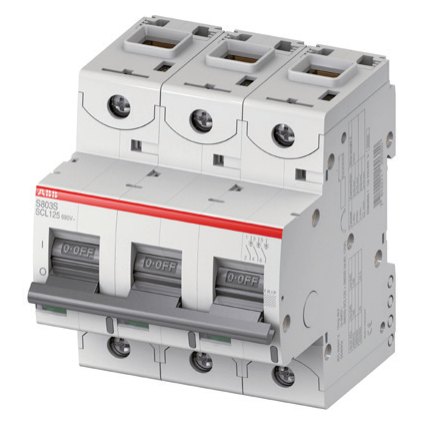

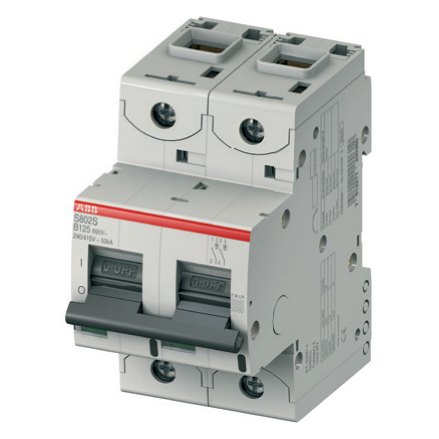

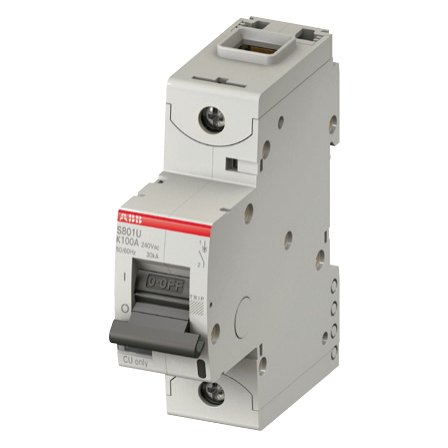

ABB S800U-K high-performance circuit breaker, K curve, 10–100 A, 1–4 pole, UL 489
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: High-performance MCB (UL 489)
- Series: S800U-K
- Trip curve: K
- Poles: 1, 2, 3, 4
- Rated current (A): 10–100
- Breaking capacity: 30 kA (1-pole), 50 kA (multi-pole) at 240 VAC
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1342 |
| Category | Miniature Circuit Breakers |
| Group | Electrical |
| Brand | ABB |
| Model | S800U-K |
| Technical | |
| Type | High-performance MCB (UL 489) |
| Series | S800U-K |
| Trip curve | K |
| Poles | 1, 2, 3, 4 |
| Rated current (A) | 10–100 |
| Breaking capacity | 30 kA (1-pole), 50 kA (multi-pole) at 240 VAC |
| Rated voltage | 240 VAC (UL 489); 240/415 VAC (IEC 60947-2) |
| Standard | UL 489, IEC 60947-2, CSA C22.2 No. 5-02 |
Datasheet
Download manufacturer datasheet (PDF)
Ordering information — catalogue numbers
| Rated current | 1 pole | 2 poles | 3 poles | 4 poles |
|---|---|---|---|---|
| 10 A | S801U-K10 | S802U-K10 | S803U-K10 | S804U-K10 |
| 15 A | S801U-K15 | S802U-K15 | S803U-K15 | S804U-K15 |
| 20 A | S801U-K20 | S802U-K20 | S803U-K20 | S804U-K20 |
| 25 A | S801U-K25 | S802U-K25 | S803U-K25 | S804U-K25 |
| 30 A | S801U-K30 | S802U-K30 | S803U-K30 | S804U-K30 |
| 40 A | S801U-K40 | S802U-K40 | S803U-K40 | S804U-K40 |
| 50 A | S801U-K50 | S802U-K50 | S803U-K50 | S804U-K50 |
| 60 A | S801U-K60 | S802U-K60 | S803U-K60 | S804U-K60 |
| 70 A | S801U-K70 | S802U-K70 | S803U-K70 | S804U-K70 |
| 80 A | S801U-K80 | S802U-K80 | S803U-K80 | S804U-K80 |
| 90 A | S801U-K90 | S802U-K90 | S803U-K90 | S804U-K90 |
| 100 A | S801U-K100 | S802U-K100 | S803U-K100 | S804U-K100 |
Technical specifications
| Rated operational current Ie | 10...100 A |
|---|---|
| Poles | 1...4 |
| Rated operational voltage Ue (UL 489) | 240 VAC, 50/60 Hz |
| Ultimate short-circuit breaking capacity (UL 489), 240 V | 30 kA single-pole / 50 kA multi-pole |
| Rated operational voltage Ue (IEC 60947-2) | 240/415 VAC |
| Icu (IEC 60947-2), 240/415 V | 30 kA single-pole / 50 kA multi-pole |
| Ics (IEC 60947-2), 240/415 V | 25 kA single-pole / 40 kA multi-pole |
| Connections, Cu | 10...30 A: 14–2 AWG; 40...100 A: 8–1 AWG |
| Rated frequency | 50/60 Hz |
| Tightening torque | 3.5 Nm (31 in.lb) |
| Protection category | IP40 (actuating end only) |
| Mounting position | Any |
| Contacts | Cadmium-free |
| Permissible ambient temperature | -25...+60 °C |
| Standards | UL 489, IEC 60947-2, CSA C22.2 No. 5-02 |
| Approval | cULus, file E312425 |
Features
- Energy limiting
- Fast breaking time (2.3–2.5 ms)
- Wide range of accessories
- 35 mm DIN rail mounting
- Finger-safe, multi-function terminals
- Ring-tongue compatible
- UL 489, file E312425

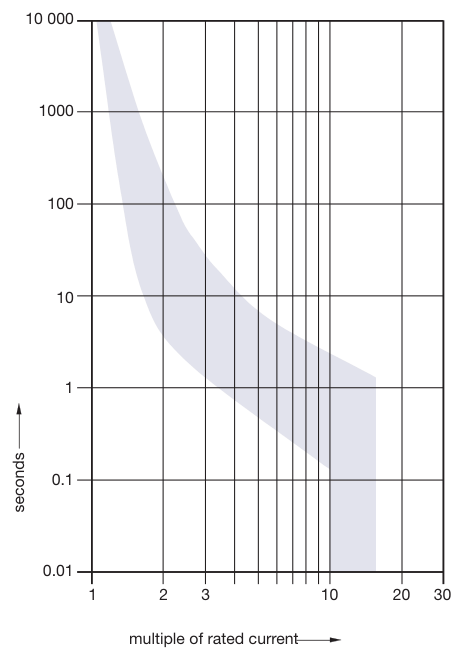

Trip curve — K
Typical internal resistance and power loss at 25 °C
| Rated current In [A] | Internal resistance Ri [mΩ] K, Z | Power loss Pv [W] K, Z |
|---|---|---|
| 10 | 15.2 | 1.5 |
| 15 | 12.1 | 2.7 |
| 20 | 8.7 | 3.5 |
| 25 | 6.8 | 4.2 |
| 30 | 3.1 | 2.8 |
| 40 | 2.3 | 3.7 |
| 50 | 1.7 | 4.3 |
| 60 | 1.6 | 5.8 |
| 70 | 1.0 | 6.4 |
| 80 | 1.0 | 6.4 |
| 90 | 0.8 | 6.5 |
| 100 | 0.8 | 8.3 |
Influence of ambient temperature — maximum current (A)
| I [A] n | 10 °C | 15 °C | 20 °C | 25 °C | 30 °C | 35 °C | 40 °C | 45 °C | 50 °C | 55 °C | 60 °C |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 10.9 | 10.7 | 10.4 | 10.0 | 9.6 | 9.3 | 9.0 | 8.7 | 8.4 | 8.0 | 7.6 |
| 15 | 16.5 | 16.0 | 15.6 | 15.0 | 14.4 | 14.0 | 13.5 | 13.0 | 12.6 | 12.0 | 11.4 |
| 20 | 22.0 | 21.4 | 20.8 | 20.0 | 19.2 | 18.6 | 18.0 | 17.4 | 16.8 | 16.0 | 15.2 |
| 25 | 27.5 | 26.8 | 26.0 | 25.0 | 24.0 | 23.3 | 22.5 | 21.8 | 21.0 | 20.0 | 19.0 |
| 30 | 33.1 | 32.1 | 31.2 | 30.0 | 28.8 | 27.9 | 27.0 | 26.1 | 25.2 | 24.0 | 22.9 |
| 40 | 44.0 | 42.8 | 41.6 | 40.0 | 38.4 | 37.2 | 36.0 | 34.8 | 33.6 | 32.0 | 30.9 |
| 50 | 55.1 | 53.5 | 52.0 | 50.0 | 48.0 | 46.5 | 45.0 | 43.5 | 42.0 | 40.0 | 38.3 |
| 60 | 66.2 | 64.2 | 62.4 | 60.0 | 57.6 | 55.8 | 54.0 | 52.2 | 50.4 | 48.0 | 46.0 |
| 70 | 76.9 | 74.9 | 72.8 | 70.0 | 67.2 | 65.1 | 63.0 | 60.9 | 58.8 | 56.0 | 53.4 |
| 80 | 88.0 | 85.6 | 83.2 | 80.0 | 76.8 | 74.4 | 72.0 | 69.6 | 67.1 | 64.0 | 61.6 |
| 90 | 99.1 | 96.3 | 93.6 | 90.0 | 86.4 | 83.7 | 81.0 | 78.3 | 75.6 | 72.0 | 69.5 |
| 100 | 110.5 | 107.0 | 104.0 | 100.0 | 96.0 | 93.0 | 90.0 | 87.0 | 83.8 | 80.0 | 77.8 |

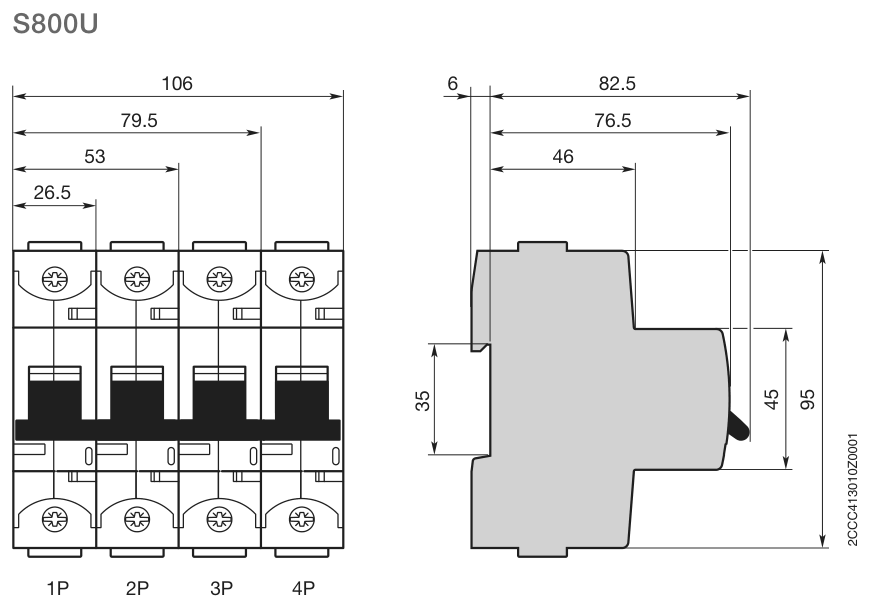

Approximate dimensions (mm)
Source: ABB US Catalog, Miniature Circuit Breakers, November 2016 (1SXU400208C0201). Download the series datasheet (PDF)
Description
The ABB S800U is a high-performance UL 489 circuit breaker for currents up to 100 A, with 30 kA (1-pole) / 50 kA (multi-pole) interrupting rating at 240 VAC, ring-tongue compatible terminals and a full range of shunt trips, undervoltage releases, auxiliary contacts and handles.
K curve: close thermal protection with a high magnetic threshold, so motors, transformers and other inductive loads start without nuisance tripping.
Choose the number of poles and the rated current below; the matching ABB catalogue number is shown and included in your quotation request.
