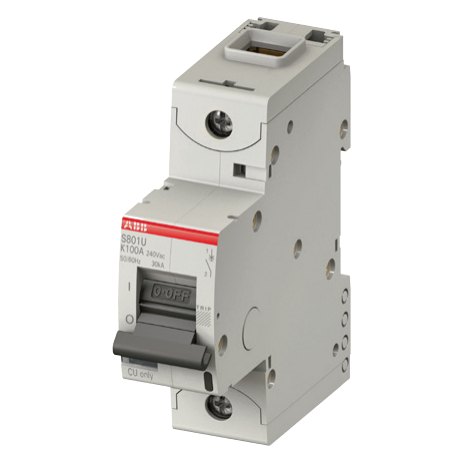

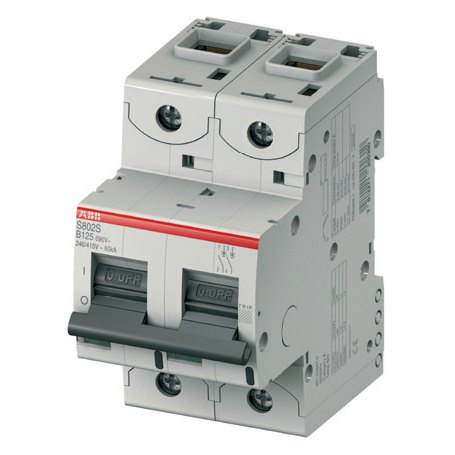

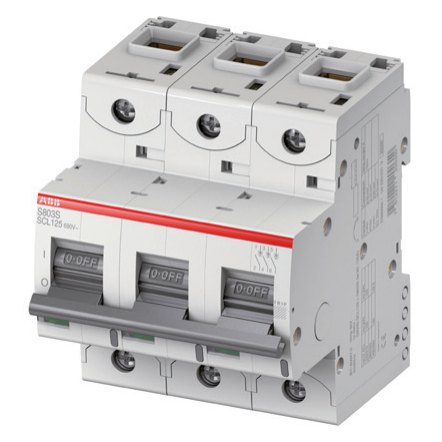

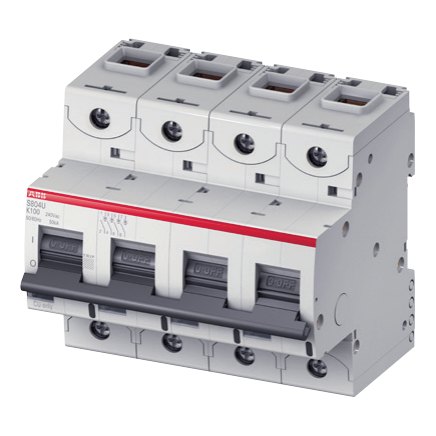

ABB S800U-Z high-performance circuit breaker, Z curve, 10–100 A, 1–4 pole, UL 489
Electrical

ABB S800U-Z high-performance circuit breaker, Z curve, 10–100 A, 1–4 pole, UL 489

Part no.
BD-1343
Brand
ABB
Model
S800U-Z
Catalogue no.
S801U-Z10
Poles: 1
Rated current: 10 A

48 versions available · full ordering table in the datasheet

Available on order · sourced to your specification
Price on request

Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.

Quick overview

  • Type: High-performance MCB (UL 489)
  • Series: S800U-Z
  • Trip curve: Z
  • Poles: 1, 2, 3, 4
  • Rated current (A): 10–100
  • Breaking capacity: 30 kA (1-pole), 50 kA (multi-pole) at 240 VAC
Call +880 1713 552466
  • Genuine productsSourced from the manufacturer or authorised channels
  • Delivery across BangladeshDhaka, Chattogram and all industrial zones
  • After-sales supportInstallation guidance and warranty handling
  • Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com

Specifications

General
Part no.BD-1343
CategoryMiniature Circuit Breakers
GroupElectrical
BrandABB
ModelS800U-Z
Technical
TypeHigh-performance MCB (UL 489)
SeriesS800U-Z
Trip curveZ
Poles1, 2, 3, 4
Rated current (A)10–100
Breaking capacity30 kA (1-pole), 50 kA (multi-pole) at 240 VAC
Rated voltage240 VAC (UL 489); 240/415 VAC (IEC 60947-2)
StandardUL 489, IEC 60947-2, CSA C22.2 No. 5-02

Datasheet

Download manufacturer datasheet (PDF)

ABB S800U series — high-performance circuit breakers · UL 489

Ordering information — catalogue numbers

Rated current1 pole2 poles3 poles4 poles
10 AS801U-Z10S802U-Z10S803U-Z10S804U-Z10
15 AS801U-Z15S802U-Z15S803U-Z15S804U-Z15
20 AS801U-Z20S802U-Z20S803U-Z20S804U-Z20
25 AS801U-Z25S802U-Z25S803U-Z25S804U-Z25
30 AS801U-Z30S802U-Z30S803U-Z30S804U-Z30
40 AS801U-Z40S802U-Z40S803U-Z40S804U-Z40
50 AS801U-Z50S802U-Z50S803U-Z50S804U-Z50
60 AS801U-Z60S802U-Z60S803U-Z60S804U-Z60
70 AS801U-Z70S802U-Z70S803U-Z70S804U-Z70
80 AS801U-Z80S802U-Z80S803U-Z80S804U-Z80
90 AS801U-Z90S802U-Z90S803U-Z90S804U-Z90
100 AS801U-Z100S802U-Z100S803U-Z100S804U-Z100

Technical specifications

Rated operational current Ie10...100 A
Poles1...4
Rated operational voltage Ue (UL 489)240 VAC, 50/60 Hz
Ultimate short-circuit breaking capacity (UL 489), 240 V30 kA single-pole / 50 kA multi-pole
Rated operational voltage Ue (IEC 60947-2)240/415 VAC
Icu (IEC 60947-2), 240/415 V30 kA single-pole / 50 kA multi-pole
Ics (IEC 60947-2), 240/415 V25 kA single-pole / 40 kA multi-pole
Connections, Cu10...30 A: 14–2 AWG; 40...100 A: 8–1 AWG
Rated frequency50/60 Hz
Tightening torque3.5 Nm (31 in.lb)
Protection categoryIP40 (actuating end only)
Mounting positionAny
ContactsCadmium-free
Permissible ambient temperature-25...+60 °C
StandardsUL 489, IEC 60947-2, CSA C22.2 No. 5-02
ApprovalcULus, file E312425

Features

  • Energy limiting
  • Fast breaking time (2.3–2.5 ms)
  • Wide range of accessories
  • 35 mm DIN rail mounting
  • Finger-safe, multi-function terminals
  • Ring-tongue compatible
  • UL 489, file E312425

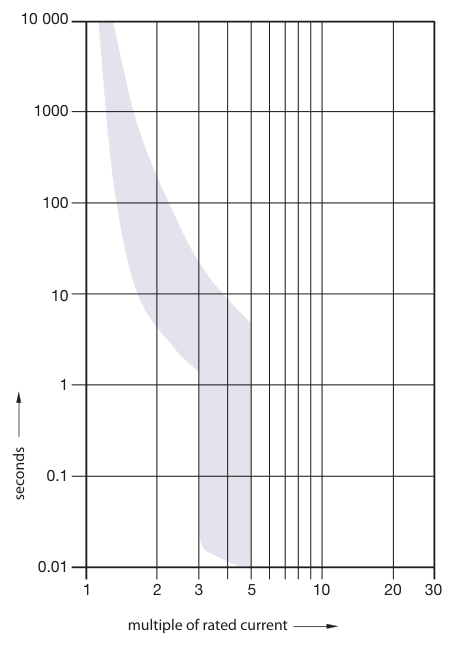

Trip curve — Z

ABB S800U-Z high-performance circuit breaker, Z curve, 10–100 A, 1–4 pole, UL 489 trip curve

Typical internal resistance and power loss at 25 °C

Rated current In [A]Internal resistance Ri [mΩ] K, ZPower loss Pv [W] K, Z
1015.21.5
1512.12.7
208.73.5
256.84.2
303.12.8
402.33.7
501.74.3
601.65.8
701.06.4
801.06.4
900.86.5
1000.88.3

Influence of ambient temperature — maximum current (A)

I [A] n10 °C15 °C20 °C25 °C30 °C35 °C40 °C45 °C50 °C55 °C60 °C
1010.910.710.410.09.69.39.08.78.48.07.6
1516.516.015.615.014.414.013.513.012.612.011.4
2022.021.420.820.019.218.618.017.416.816.015.2
2527.526.826.025.024.023.322.521.821.020.019.0
3033.132.131.230.028.827.927.026.125.224.022.9
4044.042.841.640.038.437.236.034.833.632.030.9
5055.153.552.050.048.046.545.043.542.040.038.3
6066.264.262.460.057.655.854.052.250.448.046.0
7076.974.972.870.067.265.163.060.958.856.053.4
8088.085.683.280.076.874.472.069.667.164.061.6
9099.196.393.690.086.483.781.078.375.672.069.5
100110.5107.0104.0100.096.093.090.087.083.880.077.8

Approximate dimensions (mm)

S800U dimensions

Source: ABB US Catalog, Miniature Circuit Breakers, November 2016 (1SXU400208C0201). Download the series datasheet (PDF)

Description

The ABB S800U is a high-performance UL 489 circuit breaker for currents up to 100 A, with 30 kA (1-pole) / 50 kA (multi-pole) interrupting rating at 240 VAC, ring-tongue compatible terminals and a full range of shunt trips, undervoltage releases, auxiliary contacts and handles.

Z curve: very low magnetic threshold (roughly 2–3 × In), for sensitive electronics, semiconductors and measuring/voltage-transformer circuits.

Choose the number of poles and the rated current below; the matching ABB catalogue number is shown and included in your quotation request.
