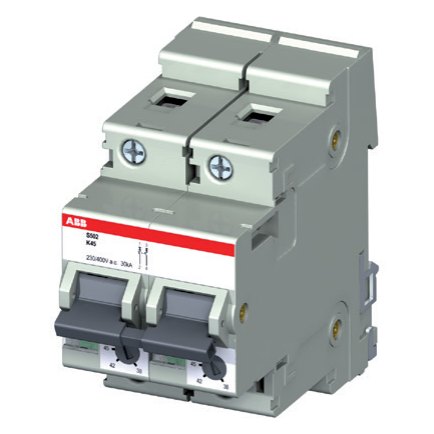

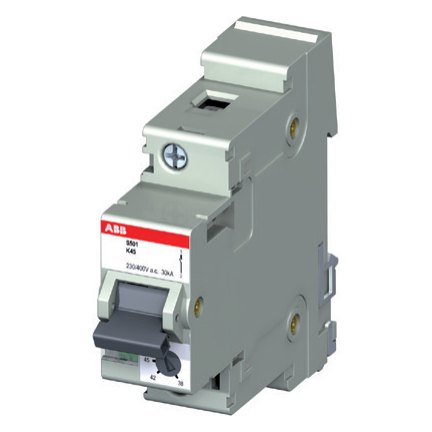

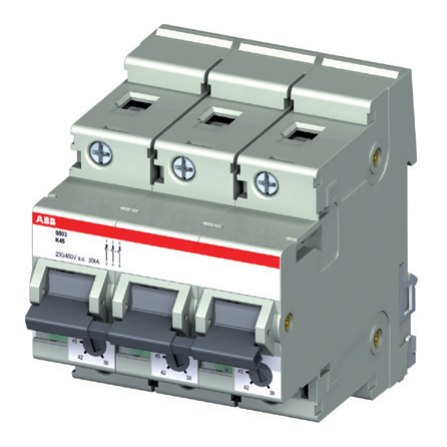

ABB S500-K adjustable supplementary protector, K curve, 0.1–45 A, 1–3 pole, UL 1077
Electrical

ABB S500-K adjustable supplementary protector, K curve, 0.1–45 A, 1–3 pole, UL 1077

Part no.
BD-1345
Brand
ABB
Model
S500-K
Catalogue no.
S501-K0.15
Poles: 1
Rated current: 0.1-0.15 A

63 versions available · full ordering table in the datasheet

Available on order · sourced to your specification
Price on request

Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.

Quick overview

  • Type: Supplementary protector (UL 1077)
  • Series: S500-K
  • Trip curve: K
  • Poles: 1, 2, 3
  • Rated current (A): 0.15–45
  • Breaking capacity: 30 kA (UL 1077, CSA C22.2)
Call +880 1713 552466
  • Genuine productsSourced from the manufacturer or authorised channels
  • Delivery across BangladeshDhaka, Chattogram and all industrial zones
  • After-sales supportInstallation guidance and warranty handling
  • Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com

Specifications

General
Part no.BD-1345
CategoryMiniature Circuit Breakers
GroupElectrical
BrandABB
ModelS500-K
Technical
TypeSupplementary protector (UL 1077)
SeriesS500-K
Trip curveK
Poles1, 2, 3
Rated current (A)0.15–45
Breaking capacity30 kA (UL 1077, CSA C22.2)
Rated voltage600Y/347 VAC
StandardUL 1077, CSA C22.2 No. 235, IEC

Datasheet

Download manufacturer datasheet (PDF)

ABB S500 series — S500-K adjustable supplementary protectors · UL 1077

Ordering information — catalogue numbers

Rated current1 pole2 poles3 poles
0.1-0.15 AS501-K0.15S502-K0.15S503-K0.15
0.14-0.21 AS501-K0.21S502-K0.21S503-K0.21
0.2-0.3 AS501-K0.3S502-K0.3S503-K0.3
0.28-0.42 AS501-K0.42S502-K0.42S503-K0.42
0.38-0.58 AS501-K0.58S502-K0.58S503-K0.58
0.53-0.8 AS501-K0.8S502-K0.8S503-K0.8
0.73-1.1 AS501-K1.1S502-K1.1S503-K1.1
1-1.5 AS501-K1.5S502-K1.5S503-K1.5
1.4-2.1 AS501-K2.1S502-K2.1S503-K2.1
2-3 AS501-K3S502-K3S503-K3
2.8-4.2 AS501-K4.2S502-K4.2S503-K4.2
3.8-5.8 AS501-K5.8S502-K5.8S503-K5.8
5.3-8 AS501-K8S502-K8S503-K8
7.3-11 AS501-K11S502-K11S503-K11
10-15 AS501-K15S502-K15S503-K15
14-20 AS501-K20S502-K20S503-K20
18-26 AS501-K26S502-K26S503-K26
23-32 AS501-K32S502-K32S503-K32
29-37 AS501-K37S502-K37S503-K37
34-41 AS501-K41S502-K41S503-K41
38-45 AS501-K45S502-K45S503-K45

Technical specifications

Approvals UL CSA1077
C22.2-No. 235
Number of poles1, 2, 3
Tripping characteristicK
Rated current0.1 to 45 A
Rated voltage600Y/347 VAC
Frequency50/60 Hz
Mounting positionvertical, horizontal
Standard mounting35 mm DIN rail
Clamps only for CU16-4 AWG
Service life, mechanical at rated load20,000
Ambient temperature40 °C...104 °F

Features

  • High breaking capacity
  • Fast breaking time (2.3–2.5 ms)
  • Adjustable trip unit
  • 35 mm DIN rail mounting
  • Finger-safe, multi-function terminals
  • Wide range of accessories
  • UL 1077 recognized 600 VAC and 600 VDC versions
  • UL 1077: AC adjustable K; DC adjustable B and K
  • UL file E167556

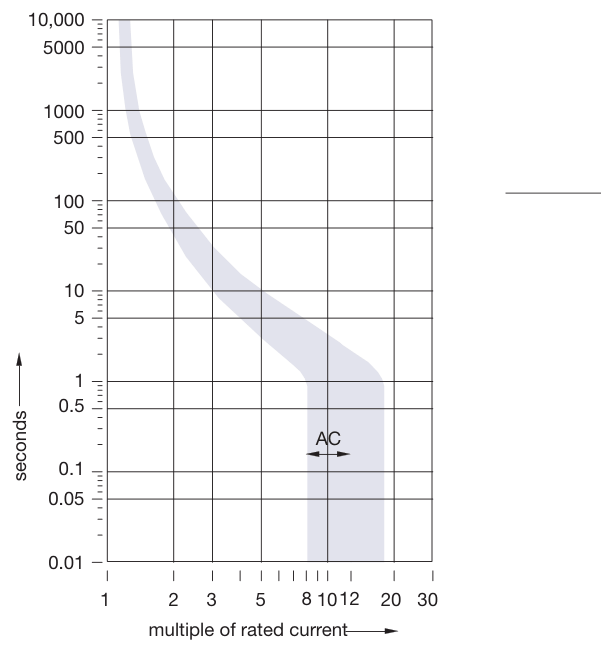

Trip curve — K

ABB S500-K adjustable supplementary protector, K curve, 0.1–45 A, 1–3 pole, UL 1077 trip curve

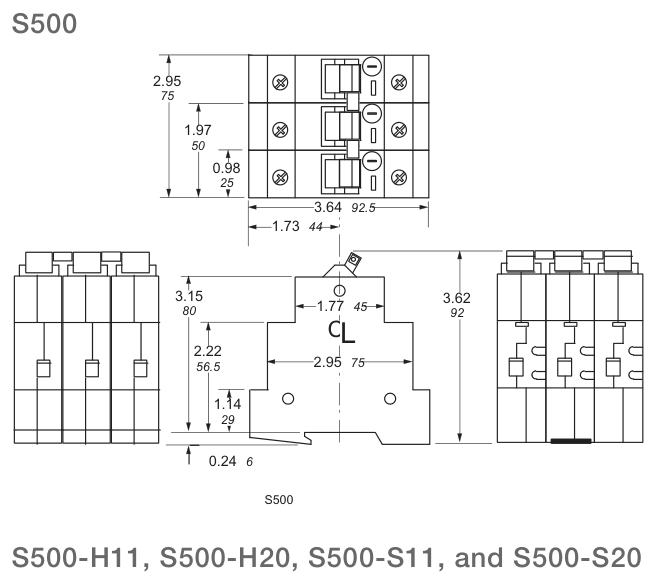

Approximate dimensions (mm)

S500 dimensions (inches)

Source: ABB US Catalog, Miniature Circuit Breakers, November 2016 (1SXU400208C0201). Download the series datasheet (PDF)

Description

The ABB S500 is a high-breaking-capacity supplementary protector to UL 1077 / CSA C22.2 with an adjustable thermal trip: each catalogue number covers a setting range (for example 2.8–4.2 A), so one device can be matched exactly to the load.

K curve: close thermal protection with a high magnetic threshold, so motors, transformers and other inductive loads start without nuisance tripping.

Choose the number of poles and the rated current below; the matching ABB catalogue number is shown and included in your quotation request.

The rated-current options are the adjustable setting ranges of each device.
