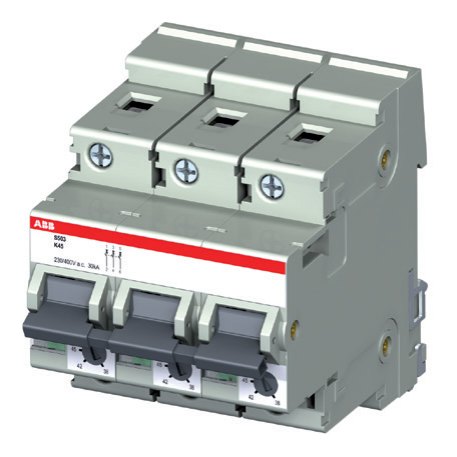

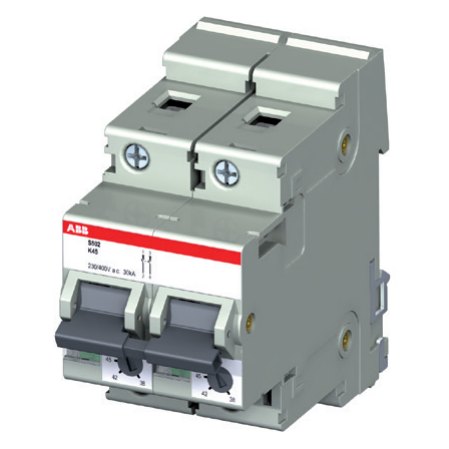

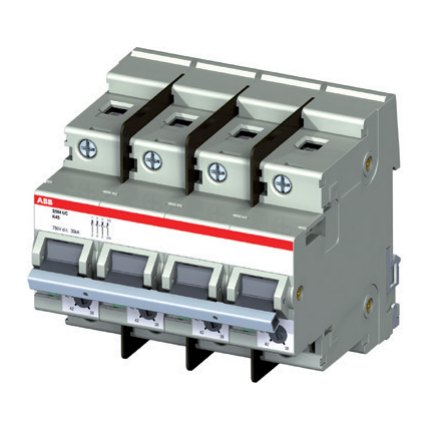

ABB S500UC-K adjustable DC supplementary protector, K curve, 0.1–45 A, 1–4 pole, UL 1077
Electrical

ABB S500UC-K adjustable DC supplementary protector, K curve, 0.1–45 A, 1–4 pole, UL 1077

Part no.
BD-1347
Brand
ABB
Model
S500UC-K
Catalogue no.
S501UC-K0.15
Poles: 1
Rated current: 0.1-0.15 A

84 versions available · full ordering table in the datasheet

Available on order · sourced to your specification
Price on request

Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.

Quick overview

  • Type: Supplementary protector (UL 1077)
  • Series: S500UC-K
  • Trip curve: K
  • Poles: 1, 2, 3, 4
  • Rated current (A): 0.15–45
  • Breaking capacity: 30 kA (UL 1077, CSA C22.2)
Call +880 1713 552466
  • Genuine productsSourced from the manufacturer or authorised channels
  • Delivery across BangladeshDhaka, Chattogram and all industrial zones
  • After-sales supportInstallation guidance and warranty handling
  • Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com

Specifications

General
Part no.BD-1347
CategoryMiniature Circuit Breakers
GroupElectrical
BrandABB
ModelS500UC-K
Technical
TypeSupplementary protector (UL 1077)
SeriesS500UC-K
Trip curveK
Poles1, 2, 3, 4
Rated current (A)0.15–45
Breaking capacity30 kA (UL 1077, CSA C22.2)
Rated voltageDC: 250 V (1-pole), 500 V (2-pole), 600 V (3/4-pole)
StandardUL 1077, CSA C22.2 No. 235, IEC

Datasheet

Download manufacturer datasheet (PDF)

ABB S500 series — S500UC DC supplementary protectors · UL 1077

Ordering information — catalogue numbers

Rated current1 pole2 poles3 poles4 poles
0.1-0.15 AS501UC-K0.15S502UC-K0.15S503UC-K0.15S504UC-K0.15
0.14-0.21 AS501UC-K0.21S502UC-K0.21S503UC-K0.21S504UC-K0.21
0.2-0.3 AS501UC-K0.3S502UC-K0.3S503UC-K0.3S504UC-K0.3
0.28-0.42 AS501UC-K0.42S502UC-K0.42S503UC-K0.42S504UC-K0.42
0.38-0.58 AS501UC-K0.58S502UC-K0.58S503UC-K0.58S504UC-K0.58
0.53-0.8 AS501UC-K0.8S502UC-K0.8S503UC-K0.8S504UC-K0.8
0.73-1.1 AS501UC-K1.1S502UC-K1.1S503UC-K1.1S504UC-K1.1
1-1.5 AS501UC-K1.5S502UC-K1.5S503UC-K1.5S504UC-K1.5
1.4-2.1 AS501UC-K2.1S502UC-K2.1S503UC-K2.1S504UC-K2.1
2-3 AS501UC-K3S502UC-K3S503UC-K3S504UC-K3
2.8-4.2 AS501UC-K4.2S502UC-K4.2S503UC-K4.2S504UC-K4.2
3.8-5.8 AS501UC-K5.8S502UC-K5.8S503UC-K5.8S504UC-K5.8
5.3-8 AS501UC-K8S502UC-K8S503UC-K8S504UC-K8
7.3-11 AS501UC-K11S502UC-K11S503UC-K11S504UC-K11
10-15 AS501UC-K15S502UC-K15S503UC-K15S504UC-K15
14-20 AS501UC-K20S502UC-K20S503UC-K20S504UC-K20
18-26 AS501UC-K26S502UC-K26S503UC-K26S504UC-K26
23-32 AS501UC-K32S502UC-K32S503UC-K32S504UC-K32
29-37 AS501UC-K37S502UC-K37S503UC-K37S504UC-K37
34-41 AS501UC-K41S502UC-K41S503UC-K41S504UC-K41
38-45 AS501UC-K45S502UC-K45S503UC-K45S504UC-K45

Technical specifications

Approvals UL CSA1077
C22.2-No. 235
Number of poles1, 2, 3, 4
Tripping characteristicB, K
Rated currentB: 6-63 A; K: 0.15-45 A
Rated voltage1 pole 250 VDC
2 pole 500 VDC
3 pole 600 VDC
4 pole 600 VDC
Frequency50/60 Hz
Mounting positionvertical, horizontal
Standard mounting35 mm DIN rail
Clamps only for CU16-4 AWG
Service life, mechanical at rated load20,000
Ambient temperature40 °C...104 °F

Features

  • High breaking capacity
  • Fast breaking time (2.3–2.5 ms)
  • Adjustable trip unit
  • 35 mm DIN rail mounting
  • Finger-safe, multi-function terminals
  • Wide range of accessories
  • UL 1077 recognized 600 VAC and 600 VDC versions
  • UL 1077: AC adjustable K; DC adjustable B and K
  • UL file E167556

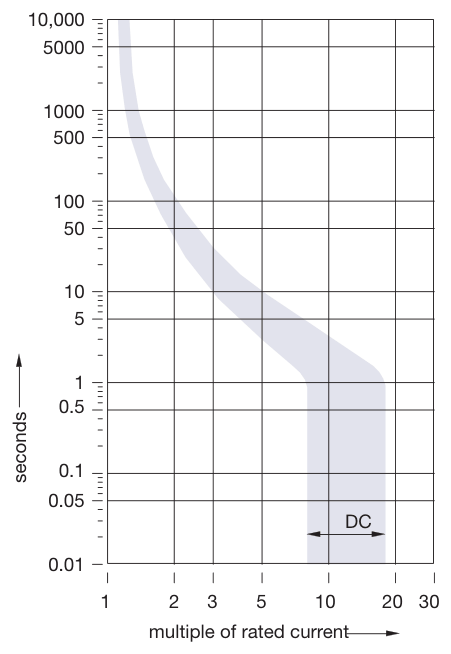

Trip curve — K

ABB S500UC-K adjustable DC supplementary protector, K curve, 0.1–45 A, 1–4 pole, UL 1077 trip curve

Approximate dimensions (mm)

S500 dimensions (inches)

Source: ABB US Catalog, Miniature Circuit Breakers, November 2016 (1SXU400208C0201). Download the series datasheet (PDF)

Description

The ABB S500UC is the DC version of the S500 supplementary protector (UL 1077), rated up to 250 VDC (1-pole), 500 VDC (2-pole) and 600 VDC (3- and 4-pole) with a 30 kA interrupting rating.

K curve: close thermal protection with a high magnetic threshold, so motors, transformers and other inductive loads start without nuisance tripping.

Choose the number of poles and the rated current below; the matching ABB catalogue number is shown and included in your quotation request.

The rated-current options are the adjustable setting ranges of each device.
