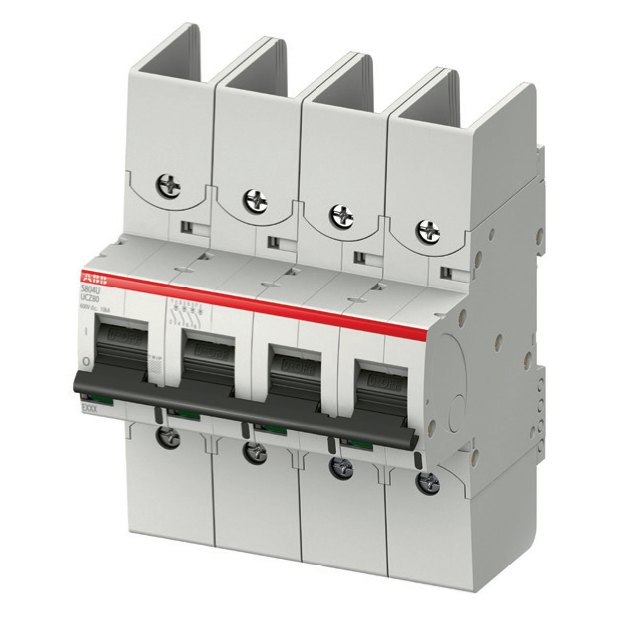

ABB S804U-PVS5 4-pole GFDI breaker for photovoltaic systems, 5 A, 1000 VDC, UL 489B
1 version available · full ordering table in the datasheet
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: High-performance MCB (UL 489B)
- Series: S804U-PVS5
- Trip curve: PV-S
- Poles: 4
- Rated current (A): 5
- Breaking capacity: 3 kA
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1348 |
| Category | Miniature Circuit Breakers |
| Group | Electrical |
| Brand | ABB |
| Model | S804U-PVS5 |
| Technical | |
| Type | High-performance MCB (UL 489B) |
| Series | S804U-PVS5 |
| Trip curve | PV-S |
| Poles | 4 |
| Rated current (A) | 5 |
| Breaking capacity | 3 kA |
| Rated voltage | 1000 VDC |
| Standard | UL 489B |
Datasheet
Download manufacturer datasheet (PDF)
Ordering information — catalogue numbers
| Rated current | Catalogue no. |
|---|---|
| 5 A | S804U-PVS5 |
Technical specifications
| Standard | UL 489B |
|---|---|
| Characteristic | PV-S |
| Rated current Ie | 5 A |
| Rated voltage Ue | 1000 VDC |
| No. of poles | 4 (wired in series) |
| Short-circuit current rating (UL 489B) | 3 kA |
| Tripping behaviour | Thermal release 1.13–1.30 × In; magnetic release 6 × In |
| Single conductor per terminal | 14–2 AWG Cu, solid or stranded, copper only, 75 °C wire |
| Tightening torque | 3.5 Nm (31 in.lb) |
| Protection category | IP40 (actuating end only) |
| Mounting position | Any |
| Contacts | Cadmium-free |
| Reference temperature for tripping characteristic | 50 °C |
| Ambient temperature | -25...+60 °C |
| Storage temperature | -40...+70 °C |
| Approval | cULus, file E351317 |
Features
- Ground-fault detector interrupter (GFDI) for photovoltaic systems
- Trips on a ground fault so the PV generator is not damaged
- Tested to UL 489B at 1000 VDC
- Fast breaking time (2.3–2.5 ms)
- Wide range of accessories
- 35 mm DIN rail mounting
- Finger-safe, multi-function terminals

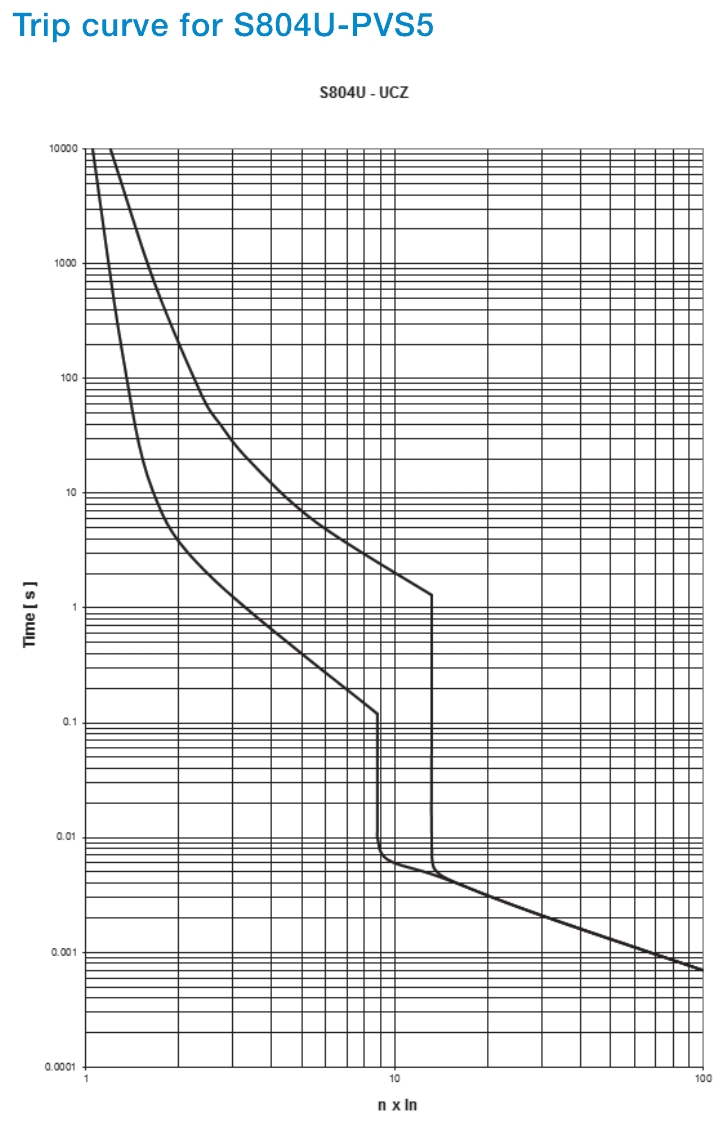

Trip curve — PV-S

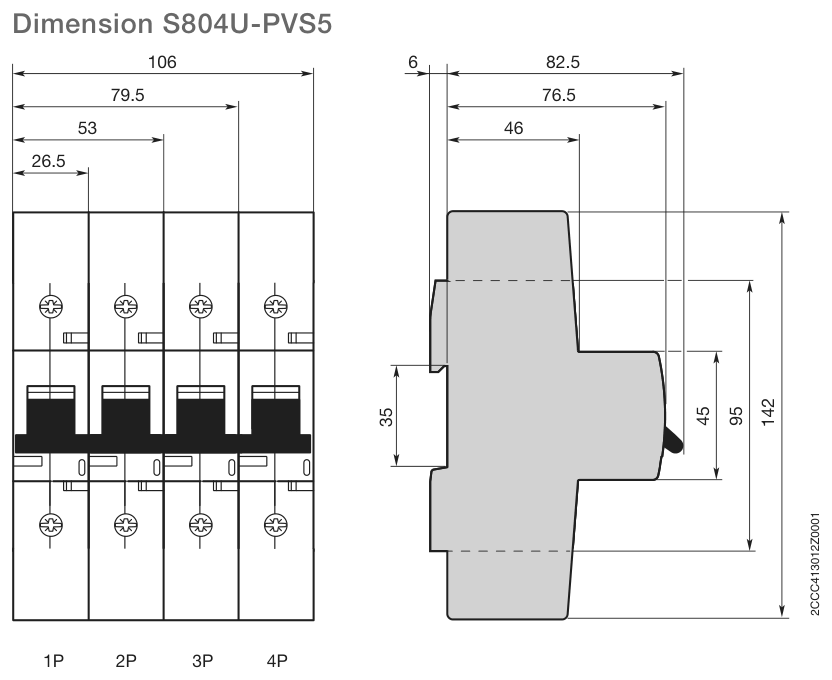

Approximate dimensions (mm)
Source: ABB US Catalog, Miniature Circuit Breakers, November 2016 (1SXU400208C0201). Download the series datasheet (PDF)
Description
The ABB S804U-PVS5 is a 4-pole ground-fault detector interrupter (GFDI) for photovoltaic systems. In case of a ground fault the breaker trips so the PV generator is not damaged. It is tested to UL 489B at 1000 VDC with a 3 kA short-circuit current rating.
Catalogue number S804U-PVS5 (5 A).
