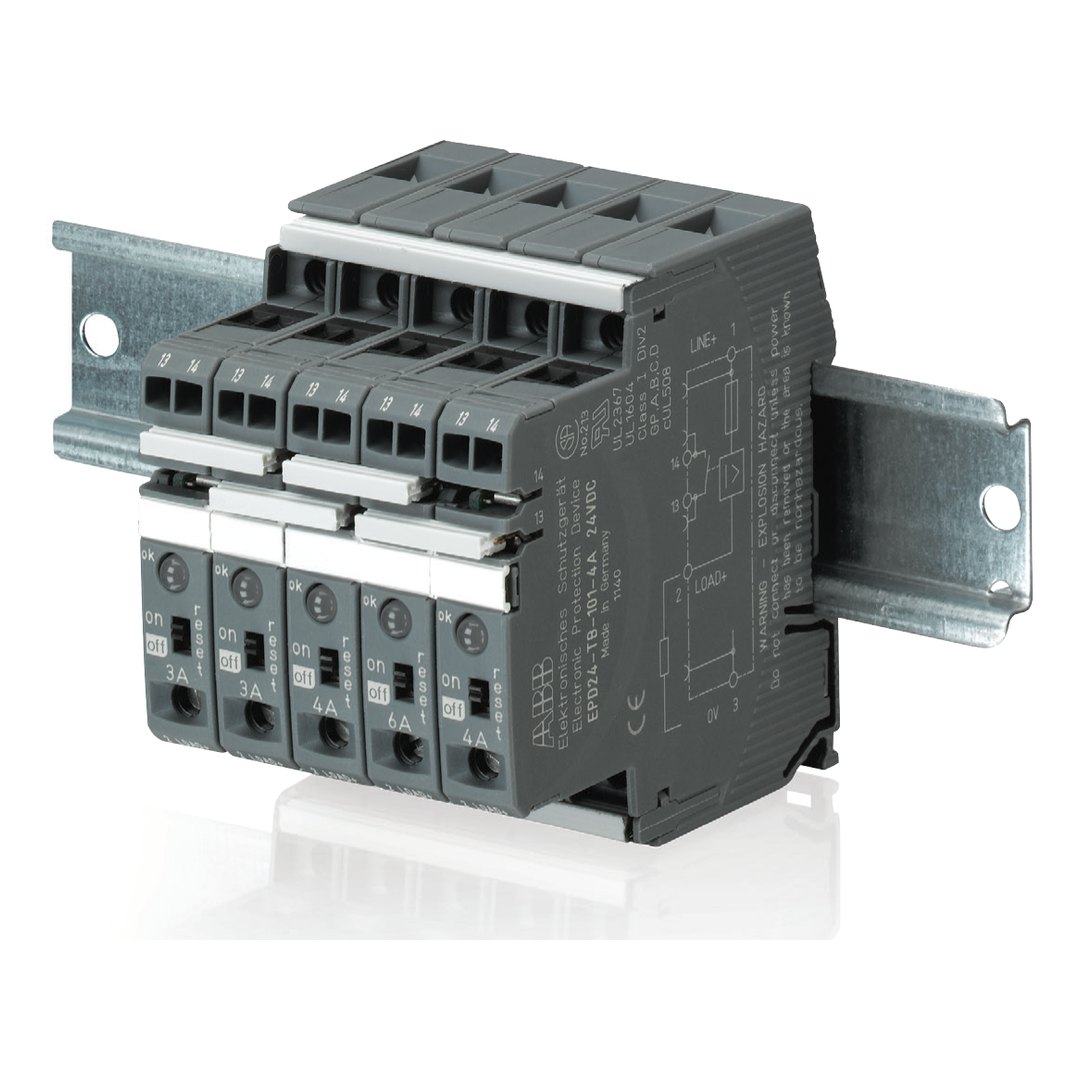

ABB EPD24-TB-101 electronic protection device for 24 VDC circuits, 0.5–12 A
Electrical

ABB EPD24-TB-101 electronic protection device for 24 VDC circuits, 0.5–12 A

Part no.
BD-1349
Brand
ABB
Model
EPD24-TB-101
Catalogue no.
EPD24-TB-101-0.5A
Rated current: 0.5 A

9 versions available · full ordering table in the datasheet

Available on order · sourced to your specification
Price on request

Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.

Quick overview

  • Type: Electronic protection device
  • Series: EPD24-TB-101
  • Rated current (A): 0.5–12
  • Breaking capacity: Electronic current limiting
  • Rated voltage: 24 VDC
  • Standard: UL 2367, UL 508, CSA C22.2
Call +880 1713 552466
  • Genuine productsSourced from the manufacturer or authorised channels
  • Delivery across BangladeshDhaka, Chattogram and all industrial zones
  • After-sales supportInstallation guidance and warranty handling
  • Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com

Specifications

General
Part no.BD-1349
CategoryMiniature Circuit Breakers
GroupElectrical
BrandABB
ModelEPD24-TB-101
Technical
TypeElectronic protection device
SeriesEPD24-TB-101
Rated current (A)0.5–12
Breaking capacityElectronic current limiting
Rated voltage24 VDC
StandardUL 2367, UL 508, CSA C22.2

Datasheet

Download manufacturer datasheet (PDF)

ABB EPD24-TB-101 — electronic protection for 24 VDC load circuits

Ordering information — catalogue numbers

Rated currentCatalogue no.
0.5 AEPD24-TB-101-0.5A
1 AEPD24-TB-101-1A
2 AEPD24-TB-101-2A
3 AEPD24-TB-101-3A
4 AEPD24-TB-101-4A
6 AEPD24-TB-101-6A
8 AEPD24-TB-101-8A
10 AEPD24-TB-101-10A
12 AEPD24-TB-101-12A

Technical specifications

Rated voltage24 VDC (load side of switch-mode power supplies)
Rated currents0.5, 1, 2, 3, 4, 6, 8, 10, 12 A
TrippingOne electronic characteristic; overload disconnection from 1.1 × In
Current limitationActive limitation to 1.3...1.8 × the selected rated current
Capacitive loadsSwitch-on of capacitive loads up to 20,000 µF
OperationManual ON/OFF button; LED status and failure indication; integrated auxiliary contact
Fail-safe elementIntegrated, adjusted to the current rating
Width12.5 mm per unit
Mounting35 mm DIN rail
Weight0.065 kg per piece
Packing unit4 pieces

Features

  • Selective load protection with one electronic tripping characteristic
  • Active current limitation for capacitive loads up to 20,000 µF and on overload/short circuit
  • Current ratings 0.5 A to 12 A
  • Reliable overload disconnection from 1.1 × In
  • Manual ON/OFF button
  • Clear status and failure indication by LED and integrated auxiliary contact
  • Width only 12.5 mm per unit
  • Easy wiring through LINE+ and 0 V busbars and signal bars
  • UL and CSA approvals

Approvals

AuthorityVoltage ratingCurrent ratings
UL 236724 VDC0.5...12 A
UL 1604 (Class I, Div. 2, groups A, B, C, D)24 VDC0.5...12 A
UL 50824 VDC0.5...12 A
CSA C22.2 No. 213 (Class I, Division 2)24 VDC0.5...12 A
CSA C22.2 No. 14224 VDC0.5...12 A
CSA C22.2 No. 1424 VDC0.5...12 A

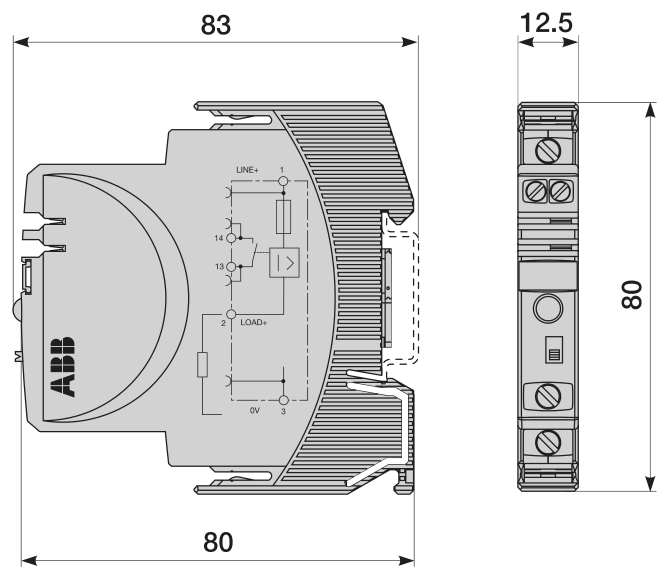

Approximate dimensions (mm)

EPD24 dimensions

Source: ABB US Catalog, Miniature Circuit Breakers, November 2016 (1SXU400208C0201). Download the series datasheet (PDF)

Description

The ABB EPD24-TB-101 is an electronic overcurrent protection module for the load side of 24 VDC switch-mode power supplies. Combining active current limitation with overload disconnection from 1.1 × In, it protects individual 24 VDC load circuits selectively: a faulty circuit is switched off while the rest of the system keeps running, and the maximum overcurrent is always limited to 1.3–1.8 × the selected rating.

Capacitive loads up to 20,000 µF can be switched on; status is shown by LED and an integrated auxiliary contact. Width 12.5 mm per unit.

Choose the rated current below; the matching ABB catalogue number is shown and included in your quotation request.
