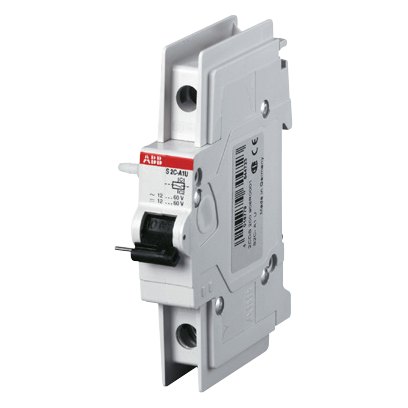

ABB S2C-A1U / S2C-A2U shunt trip for SU200M/SU200MR/S200UDC
Control voltage: 12...60 VAC/DC
2 versions available · full ordering table in the datasheet
Available on order · sourced to your specification
Price on request
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Shunt trip
- Series: S2C-A..U
- Suitable for: ABB SU200M, SU200MR and S200UDC breakers
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1352 |
| Category | Miniature Circuit Breakers |
| Group | Electrical |
| Brand | ABB |
| Model | S2C-A..U |
| Technical | |
| Type | Shunt trip |
| Series | S2C-A..U |
| Suitable for | ABB SU200M, SU200MR and S200UDC breakers |
Datasheet
Download manufacturer datasheet (PDF)
ABB S(U)200 series accessories · UL 489
Ordering information
| Control voltage | Catalogue no. |
|---|---|
| 12...60 VAC/DC | S2C-A1U |
| 110...415 VAC / 110...250 VDC | S2C-A2U |
Technical data
| S2C-A1U | S2C-A2U | |||
|---|---|---|---|---|
| Rated voltage | AC DC | V V | 12...60 12...60 | 110...415 110...250 |
| Maximum release duration | ms | <10 | <10 | |
| Minimum release voltage | AC DC | V V | 7 10 | 55 80 |
| Consumption on release | AC DC | VA VA | 40...200 40...200 | 55...210 55...110 |
| Coil resistance | V | 3.7 | 225 | |
| Terminals | AWG/mm2 | 18...6/0.75-16 | 18...6/.075-16 | |
| Tightening torque | in. lbs./Nm | 18/2 | 18/2 |
Compatibility
| Use with | ABB SU200M, SU200MR and S200UDC breakers |
|---|

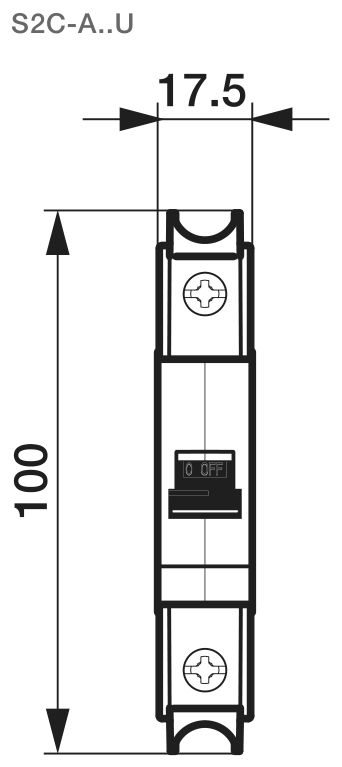

Approximate dimensions (mm)
Source: ABB US Catalog, Miniature Circuit Breakers, November 2016 (1SXU400208C0201). Download the series datasheet (PDF)
Description
Shunt trip for remote tripping: the solenoid opens the breaker when control voltage is applied. Field-mountable on the right-hand side of ABB SU200M, SU200MR and S200UDC breakers.
