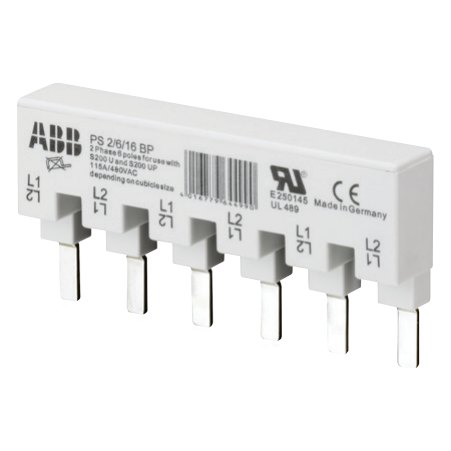

ABB PS..BP busbars for SU200M, 1/2/3-phase, 6–18 poles (not cuttable)
9 versions available · full ordering table in the datasheet
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Busbar
- Series: PS ../16BP
- Rated voltage: 600 V AC/DC
- Suitable for: ABB SU200M breakers
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1356 |
| Category | Miniature Circuit Breakers |
| Group | Electrical |
| Brand | ABB |
| Model | PS ../16BP |
| Technical | |
| Type | Busbar |
| Series | PS ../16BP |
| Rated voltage | 600 V AC/DC |
| Suitable for | ABB SU200M breakers |
Datasheet
Download manufacturer datasheet (PDF)
Ordering information
| Phases | Number of poles | Busbar length | Catalogue no. |
|---|---|---|---|
| 1 | 6 | 103.2 mm | PS 1/6/16BP |
| 1 | 12 | 208.8 mm | PS 1/12/16BP |
| 1 | 18 | 314.4 mm | PS 1/18/16BP |
| 2 | 6 | 103.2 mm | PS 2/6/16BP |
| 2 | 12 | 208.8 mm | PS 2/12/16BP |
| 2 | 18 | 314.4 mm | PS 2/18/16BP |
| 3 | 6 | 103.2 mm | PS 3/6/16BP |
| 3 | 12 | 208.8 mm | PS 3/12/16BP |
| 3 | 18 | 314.4 mm | PS 3/18/16BP |
Technical data
| Rated voltage | 600 V AC/DC |
|---|---|
| Amp rating | 80 A end-fed / 115 A centre-fed |
| Cutting | Busbars cannot be cut |
Compatibility
| Use with | ABB SU200M breakers |
|---|
Source: ABB US Catalog, Miniature Circuit Breakers, November 2016 (1SXU400208C0201). Download the series datasheet (PDF)
Description
Pin busbars for ABB SU200M breakers, 600 V AC/DC, amp rating 80 A end-fed / 115 A centre-fed. These busbars cannot be cut. Use BSK-BP tooth covers on unused poles and AST35/15BP or SZ-ESK BP feeder terminals.
