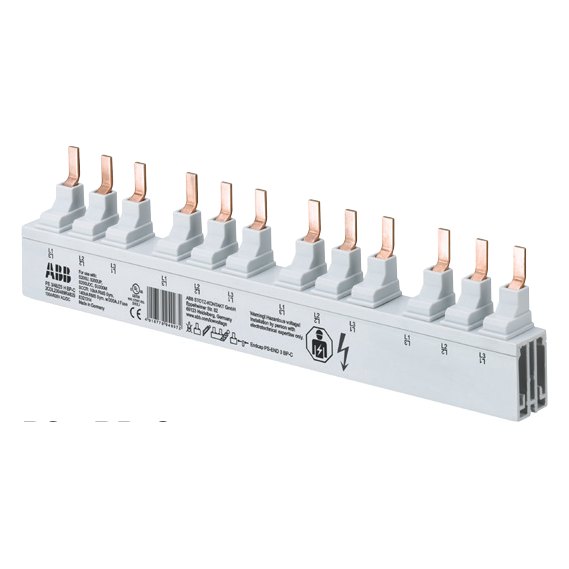

ABB PS..BP-C busbars for SU200M, 1/2/3-phase, 25 mm² (with end caps PS-END 3 BP-C)
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Busbar
- Series: PS..BP-C
- Rated voltage: 600 V AC/DC
- Suitable for: ABB SU200M breakers
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1359 |
| Category | Miniature Circuit Breakers |
| Group | Electrical |
| Brand | ABB |
| Model | PS..BP-C |
| Technical | |
| Type | Busbar |
| Series | PS..BP-C |
| Rated voltage | 600 V AC/DC |
| Suitable for | ABB SU200M breakers |
Datasheet
Download manufacturer datasheet (PDF)
Ordering information
| Phases | Phase sequence | Catalogue no. |
|---|---|---|
| 1 | L1-L1-L1... | PS1/57/25BP-C |
| 1 | L1-Aux(free)-L1-Aux(free)... (for MCBs with auxiliary contact) | PS1/37/25HBP-C |
| 2 | L1-L2-L1-L2... | PS2/56/25BP-C |
| 2 | L1-L2-Aux(free)-L1-L2-Aux(free)... (with auxiliary contact) | PS2/46/25HBP-C |
| 3 | L1-L2-L3-L1-L2-L3... | PS3/57/25BP-C |
| 3 | L1-L2-L3-Aux(free)... (with auxiliary contact) | PS3/48/25HBP-C |
| 3 | L1-Aux(free)-L2-Aux(free)-L3-Aux(free)... (with auxiliary contact) | PS3/39/25HBP-C |
Technical specifications — busbars PS...BP-C/CR
| Standards | |
|---|---|
| Rated voltage Ue | V |
| Rated frequency | Hz |
| Rated impuls withstand voltage Uimp. | kV |
| Rated current / phase | |
| End fed 1) | A |
| Center fed 1) | A |
| Short circuit current rating | kA |
Compatibility
| Use with | ABB SU200M breakers |
|---|

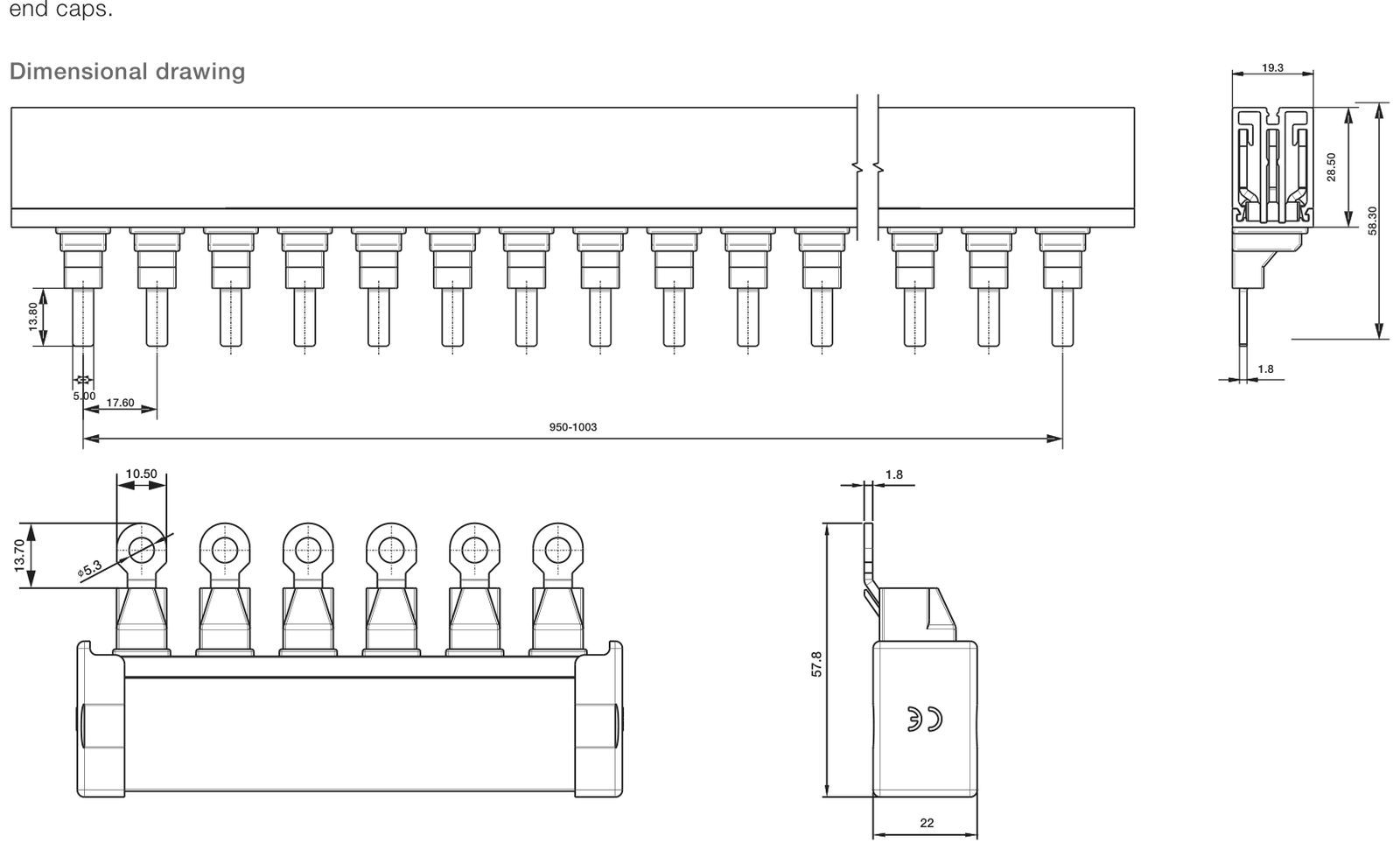

Approximate dimensions (mm)
Source: ABB US Catalog, Miniature Circuit Breakers, November 2016 (1SXU400208C0201). Download the series datasheet (PDF)
Description
Busbars for ABB SU200M breakers, 25 mm², 600 V AC/DC, 100 A end-fed / 200 A centre-fed, for use with PS-END 3 BP-C end caps. "H" versions leave a free half-module after each phase sequence for an auxiliary contact. Shortened busbars must be deburred and are touch-safe only with the required end caps.
